1,000 lb Heavy-Duty Casket & Body Lifter

American Mortuary Equipment American Mortuary Equipment
  • MADE IN
    THE USA

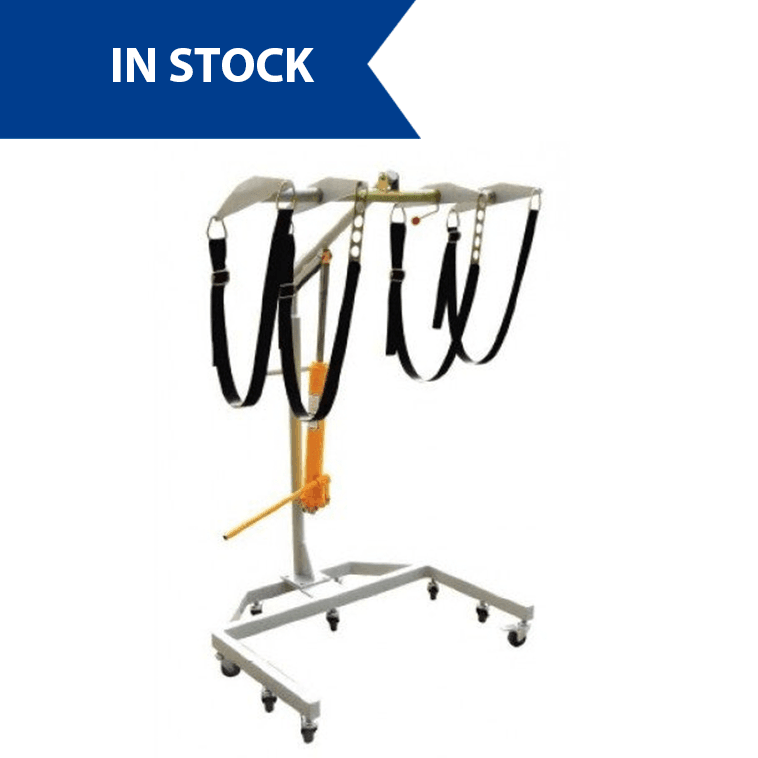

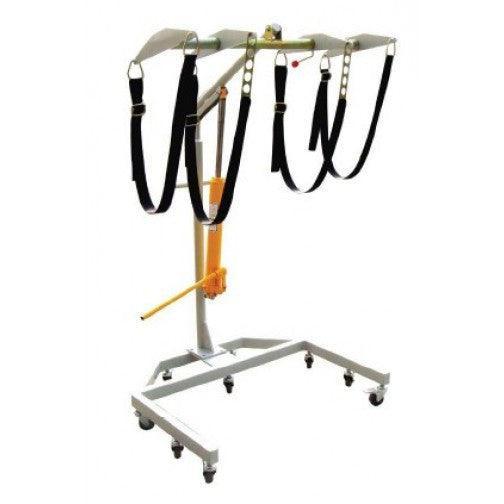

    1000 lb Heavy-Duty Casket & Body Lifter | 9-Caster Mortuary Body Lift | Adjustable Carriage Nylon Straps | American Mortuary Equipment

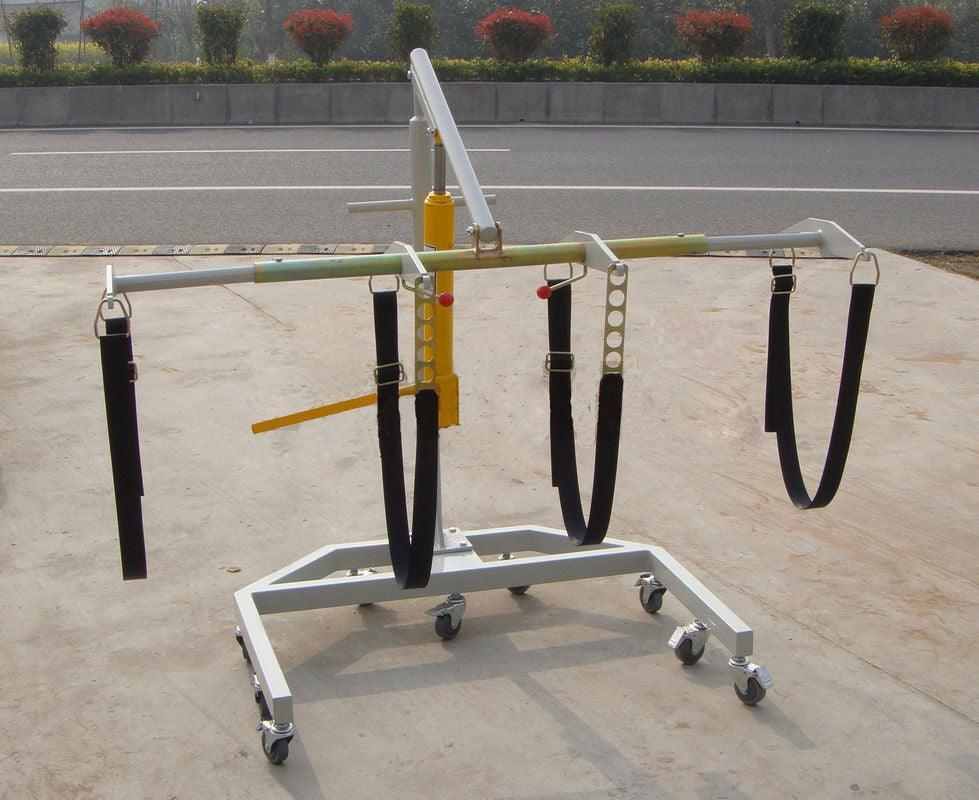

  • 1000 lb Casket & Body Lifter Frame Detail | 4-Inch Swivel Caster Mortuary Lift | Heavy-Duty Steel Construction | American Mortuary Equipment

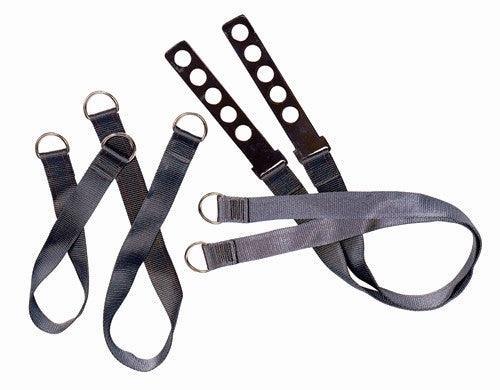

  • 1000 lb Body Lifter Strap Carriage Detail | Adjustable Washable Nylon Straps | Casket & Cadaver Lift System | American Mortuary Equipment
  • 1000 lb Casket & Body Lifter In Use | Funeral Home Casket Handling Lift | Cooler & Crematory Body Lift | American Mortuary Equipment
1 4
Sale

Model: body lift · 2026 Model

Documents User ManualPDF · Download WarrantyPolicy WR-1.0 All manuals
$985.05
$1,798.00 $985.05
Estimated from Apply with TimePayment Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
American Express DiscoverMastercard Visa Zelle® ACH
Shipping calculated at checkout.

Complete your body-handling setup

Optional racks, body boards and stainless trays. Check width, load rating, rack clearance and transfer height before ordering.

Choose end-loading or side-loading. Lift not included.

View rack details

Individual board. Select the number required.

View board details

Choose the width that fits your equipment.

View tray dimensions

  • 1,000 lb load capacity
  • Casket and body lifter combination
  • Nine 4-inch swivel casters for doorway transit
  • Adjustable body carriage
  • Four washable nylon body straps (wand-assisted)

Featured equipment

View all
Purchase terms & policies Shipping, returns, warranty and financing disclosures

Key details

  • 1,000 lb rated capacity
  • Manual hydraulic pump; no battery or power cord
  • Adjustable body carriage, 38.5″ to 61.8″
  • Four 2″ washable nylon web body straps, lower straps placed with a wand; four casket straps
  • Nine 4″ swivel casters with wheel locks
Full description & specifications

Product information

Product details & specifications

Product details

A mortuary or casket lift raises a compatible load for transfer and positioning. Pricing for 1,000 lb Heavy-Duty Casket & Body Lifter starts at $985.05 for the listed configuration.

Match the documented load rating, lifting range and attachment arrangement to the handling task and available floor space. Browse Body & Casket Lifts for related options.

Cover of the AME TITAN 500-BCL-M Hydraulic Body & Casket Lift User Manual, American Mortuary Equipment PDF

Form AME-OM-500-BCL-M Rev. A · Last updated January 15, 2026 · PDF

AME TITAN 500-BCL-M Hydraulic Body & Casket Lift User Manual

Specifications, assembly, strap placement, body and casket lifting, maintenance, troubleshooting and warranty.

Download User Manual All manuals & forms

1,000 lb Heavy-Duty Casket & Body Lifter, Model 500-BCL-M

The TITAN Model 500-BCL-M is a manual hydraulic body and casket lifter for funeral homes, morgues and crematories. A pump handle raises the boom from 27.9″ to 70.8″, the body carriage adjusts from 38.5″ to 61.8″, and nine 4″ swivel casters move it through standard doorways.

Key features

  • 1,000 lb rated capacity
  • Manual hydraulic pump; no battery or power cord
  • Adjustable body carriage, 38.5″ to 61.8″
  • Four 2″ washable nylon web body straps, lower straps placed with a wand; four casket straps
  • Nine 4″ swivel casters with wheel locks

Manual or electric body lift

Both TITAN lifts are rated 1,000 lb and handle bodies and caskets. The difference is how they lift. The 1,000 lb Heavy-Duty Casket & Body Lifter (500-BCL-M) uses a manual hydraulic pump handle with no battery or power cord. The AME TITAN Power Body & Casket Lift XL (500-BCL-P) uses a 12V DC electric actuator that runs on its rechargeable battery or a wall outlet, with no hydraulic fluid.

Manual HydraulicPower Electric
Lift systemManual hydraulic pump with pump handle12V DC electric actuator
PowerNone neededRechargeable battery or wall outlet, charger included
Model500-BCL-M500-BCL-P
FrameAll-steel square tube, powder coatedWelded structural steel, powder coated
Rated capacity1,000 lb (same on both)
UseBody and casket lifting (same on both)

Specifications

Model500-BCL-M
Rated capacity1,000 lb (453 kg)
Lift systemManual hydraulic pump with pump handle
Base (W × D)33.8″ × 33.0″
Boom bar height27.9″ low to 70.8″ high
Body carriage widthAdjustable, 38.5″ to 61.8″
CastersNine 4″ swivel casters with wheel locks
Body strapsFour 2″ adjustable, washable nylon web straps
Casket strapsFour
ConstructionAll-steel square tube, powder-coated finish
Warranty15-year structural, 5-year powder coat, 1-year straps, casters and pump, see Warranty Policy (WR-1.0)

Pairs with

Replacement Body Lift Straps · Easy Lift Casket Jacks Set · Racks and lifts.

Questions or a formal quote: call 1-888-792-9315 or cool@mymortuarycooler.com.

Lift warranty

American Mortuary Equipment body and casket lifts are warranted part by part, the same way as our racks.

PartCoverage
Lift frame, including welds, joints and connections (bolts and rivets excluded)15-year limited structural warranty
Powder-coat finish5-year limited finish warranty, with proper maintenance and care
Soft parts: lifting straps and casters1-year limited warranty
Lift drive: manual hydraulic pump, or electric actuator, battery, charger and hand pendant1-year limited warranty

Loads must stay within the rated 1,000 lb capacity, with straps placed as shown in the operating manual. Chlorine bleach, solvents and abrasive pads void the finish warranty, and chips from impact are not covered.

Coverage applies to defects in materials and workmanship under normal use, starting on the date of delivery to the original end user unless a different start is stated above. It is not transferable, and freight to and from our facility is not covered. Claims are made in writing with the order number, photos and a short description; claim handling follows the Warranty Policy (WR-1.0).

See every American Mortuary Equipment warranty in one place

Ordering 1,000 lb Heavy-Duty Casket & Body Lifter

Review the listed specifications, selected options and included items before ordering. Use the configuration selector for the current price and availability; do not assume that accessories pictured with a product are included unless the listing says so.

Source funeral supplies and mortuary equipment from one supplier, with nationwide shipping. For an equipment package or a multi-location order, request an itemized quote with the selected products, quantities and delivery ZIP codes. Confirm freight and delivery requirements for the equipment you choose.

Flexible payment options, with clear terms

Review the payment methods offered at checkout for your order. If a payment plan is available, its options and eligibility are shown by the provider. The equipment price and any financing cost are separate; compare the full payment terms before choosing a plan.

Enter payment details only in checkout or the payment provider's application. Use general customer support for product and order questions, not for sending full card numbers or sensitive financing information.

Specifications & product identity

Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.

Product identity
Brand / vendorAmerican Mortuary Coolers & Equipment
Equipment typeMortuary Lift
SKUbody lift

Dimensions & fit

Dimensions
Base (W × D)39.75″ × 33.25″
Floor clearance6.5″
Boom bar height31″ low to 72″ high
Casters4″ swivel

FAQs & buying help

How can I ask a question about this product?

Contact our team with the product name and the specification or option you want to confirm.

What should I include when requesting a quote?

Include the product, quantity, required configuration and delivery location in your quote request.

Where can I review shipping and purchase policies?

Open Shipping & support for the published freight, returns and custom-order policy links.

Resources & documents

Product-specific documents and planning links remain in Product details when a separate resources section is not available.

Plan delivery. Review the details.

Review the published policies and confirm product-specific requirements before placing your order.

Delivery planningFreight & shipping guide Purchase policiesReturns & cancellationsConfigured equipmentCustom built-to-order policy Product questionsContact buyer support

Ordering questions

How can I confirm fit before ordering?
Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.
Where is shipping confirmed?
Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.
1,000 lb Heavy-Duty Casket & Body Lifter

$985.05
Financing & purchase orders

Choose how to pay

Purchase through the product options above, or use one of these support paths for a financed or institutionally quoted order.

For institutions

Formal quotes & purchase orders

Request documented pricing, freight planning, and configuration support before issuing a purchase order.

Request a formal quote
Financing disclosures

Estimates are for qualified buyers with approved credit (WAC) and reflect the equipment price only. Shipping, freight, and applicable taxes are not included and will increase your total and payments. Final amounts are set at checkout or on your quote.

Government and institutional buyers: request a PO quote.
