2 Body Bariatric Roll-In Mortuary Cooler – Model 2BXR
American Mortuary CoolersSale
Model: 2BXR · 2026 Model
ELECTRICAL115 Volts standard · 208 Volts with compressor upgrade
Regular price
$8,117.01
List price
Sale price
$8,117.01
Unit price
per
Estimated from
2 Body Bariatric Roll-In Mortuary Cooler – Model 2BXR
$8117.01
Apply with TimePayment (opens in a new tab)
Apply for financing
Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
Zelle®
ACH
Pairs with this cooler
The Low Profile Mortuary Lift lowers to 13″ and loads every tier of this cooler, for safer, faster body transfers.
Low Profile Mortuary LiftBattery powered · lowers to 13″ · Price shown in cart
Shipping calculated at checkout.
- 2-body cadaver capacity (bariatric clearance)
- Cot-direct roll-in design with 4 inch urethane core
- Self-contained refrigeration, 208-230V single-phase
- 304 stainless steel interior
Featured equipment
View all Body Trays & Boards-
HD Mortuary Plastic Storage Board
-
Extra Large Plastic Cadaver Rack Storage Board 29 Inch
-
High-Impact Plastic Body Boards, Set of 6
-
TITAN Pro Standard Black Slider Transfer Board – 72.25 × 18.25 in
-
Plastic Mortuary Rack Storage Board (Set of five)
-
48-Pack Mortuary Rack Boards
-
74-Pack Mortuary Rack Storage Boards
-
TITAN Pro Standard White Slider Transfer Board – 72.25 × 18.25 in
-
TITAN Pro Oversized Black Slider Transfer Board – 72.75 × 22.25 in
-
Low Profile Cadaver Tray, 2-Pack
Purchase terms & policies Shipping, returns, warranty and financing disclosures
Key details

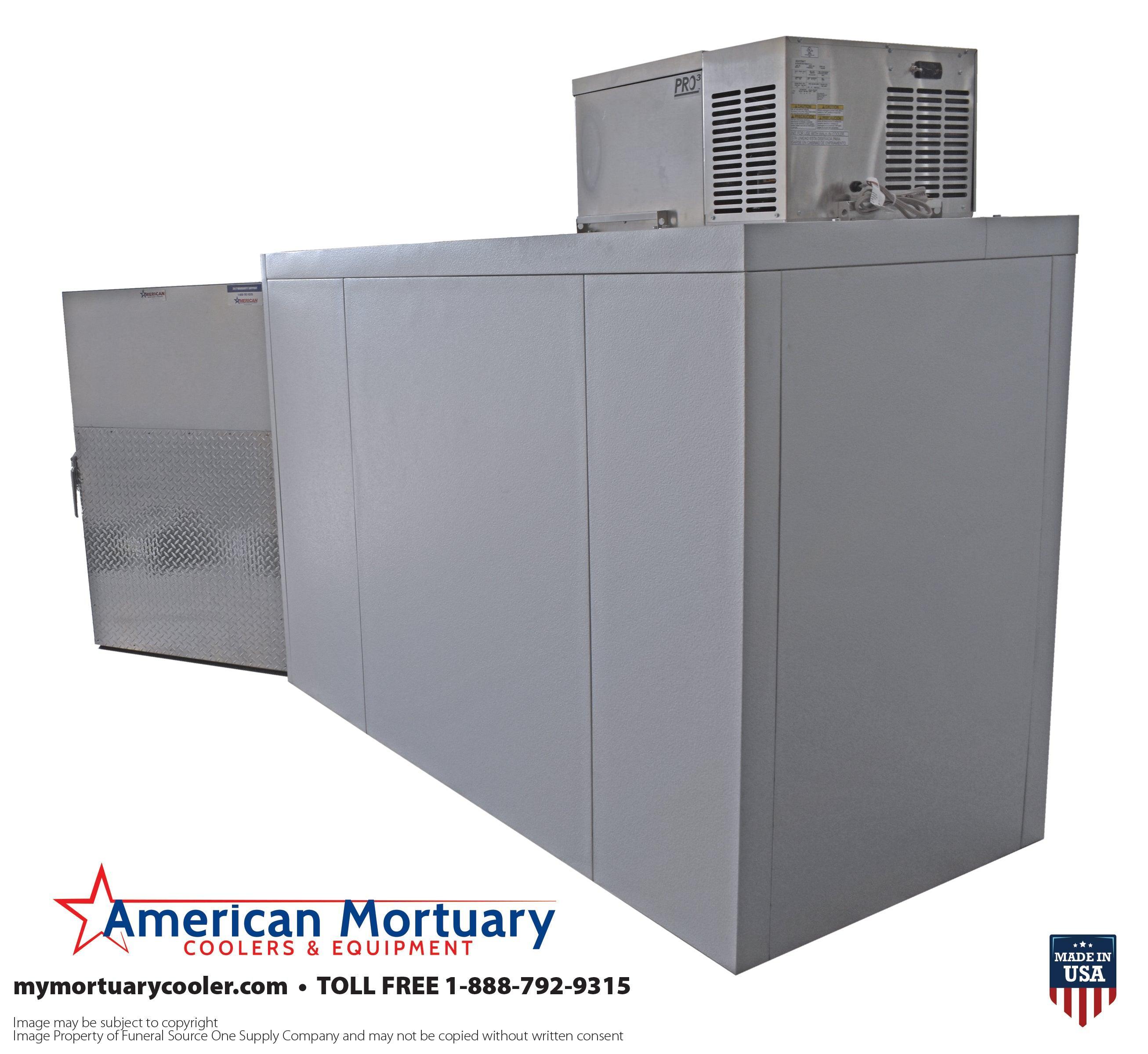

- Refrigeration: Heatcraft Climate Control PRO³ top-mount packaged system (PT0032MANAPNA), fully assembled, charged, run-tested and wired at the factory
- Capacity: 2,900 BTU/h at 95°F ambient, 35°F box
- Electrical: 115V / 1-phase / 60 Hz, 4.6 running amps, NEMA 5-20R cord and plug, no hard-wiring
- Refrigerant: A2L, meets current DOE/EPA efficiency rules
- Refrigeration warranty: Heatcraft manufacturer warranty, 2 years from installation or 30 months from shipment
Product information
Product details & specifications
Product details

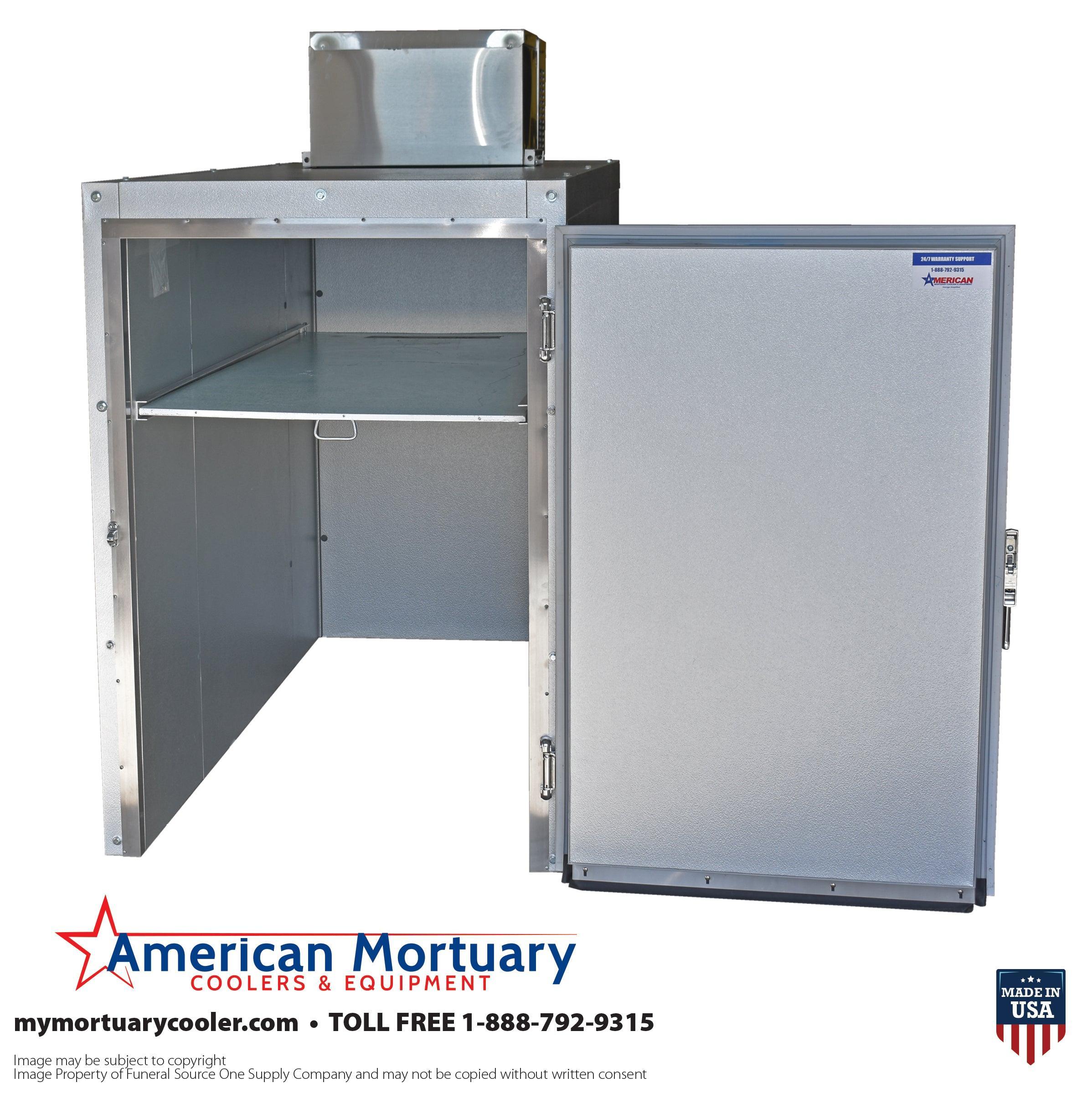

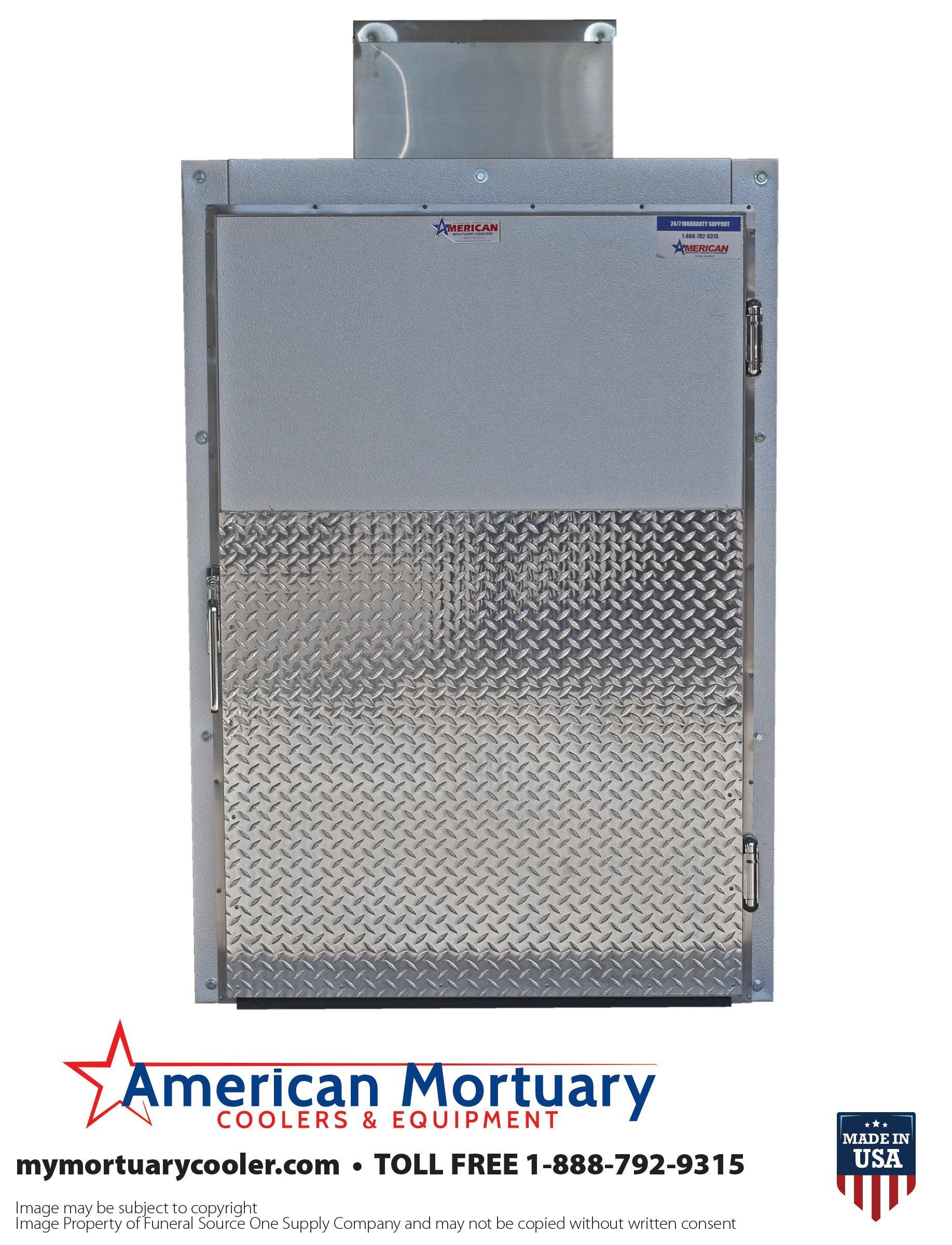

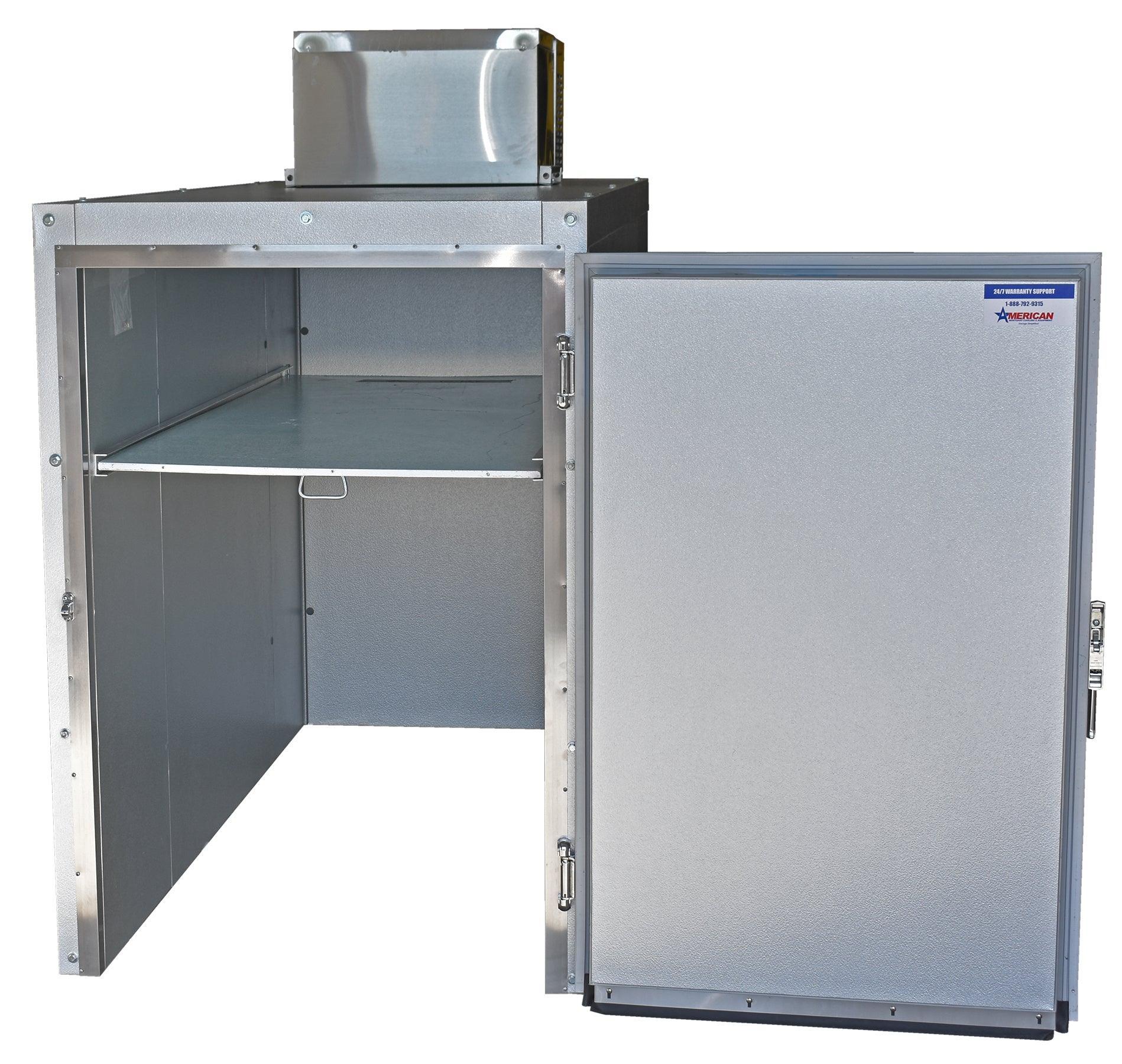

The 2 body bariatric roll-in mortuary cooler lets a cot roll straight in at cot height through a 36-inch clear door, with self-contained NSF/UL certified refrigeration from American Mortuary Coolers, starting at $8,117.01.
The AMC Model 2BXR is a USA-made, 2-body bariatric roll-in mortuary cooler with a 36-inch clear opening and self-contained 115V refrigeration, starting at $8,117.01.
The wider entrance is intended for facilities handling oversized cases, but cot width still needs to be checked against the opening. An upper storage shelf is included, and this model ships as an unassembled panel kit; compare roll-in mortuary coolers by capacity and access before choosing.
U.S.-brand refrigeration, U.S. warranty
When you compare body coolers, check who makes the refrigeration and who stands behind it. Some imported coolers ship with off-brand compressors that are hard to get parts or warranty service for. This cooler runs on a Heatcraft Climate Control PRO³ packaged refrigeration system from Heatcraft Refrigeration Products, a U.S. commercial refrigeration manufacturer headquartered in Stone Mountain, Georgia, with a U.S. manufacturer warranty.
- Refrigeration: Heatcraft Climate Control PRO³ top-mount packaged system (PT0032MANAPNA), fully assembled, charged, run-tested and wired at the factory
- Capacity: 2,900 BTU/h at 95°F ambient, 35°F box
- Electrical: 115V / 1-phase / 60 Hz, 4.6 running amps, NEMA 5-20R cord and plug, no hard-wiring
- Refrigerant: A2L, meets current DOE/EPA efficiency rules
- Refrigeration warranty: Heatcraft manufacturer warranty, 2 years from installation or 30 months from shipment
At a glance
- 2-body capacity: extra-wide cot-direct roll-in for bariatric cots · 36″ clear door
- Right-hand or left-hand door handing: specify by prep-room workflow
- Modular insulated cabinet, 4″ urethane core
- Self-contained refrigeration: 115V single-phase, NEMA 5-20R plug
Form AMC-OM-2BR Rev. A · Last updated January 15, 2026 · PDF
AMC 2BR & 2BXR 2-Body Roll-In Mortuary Cooler User Manual
Dimensions, assembly, refrigeration start-up, cot loading, cleaning, maintenance and warranty for the 2BR and 2BXR.
Download the User Manual (PDF) All equipment manualsPhysical Dimensions
| Exterior (cabinet) | 89"D × 44"W × 61"H |
|---|---|
| Exterior (with 15.25" cooling unit) | 89"D × 44"W × 76.25"H |

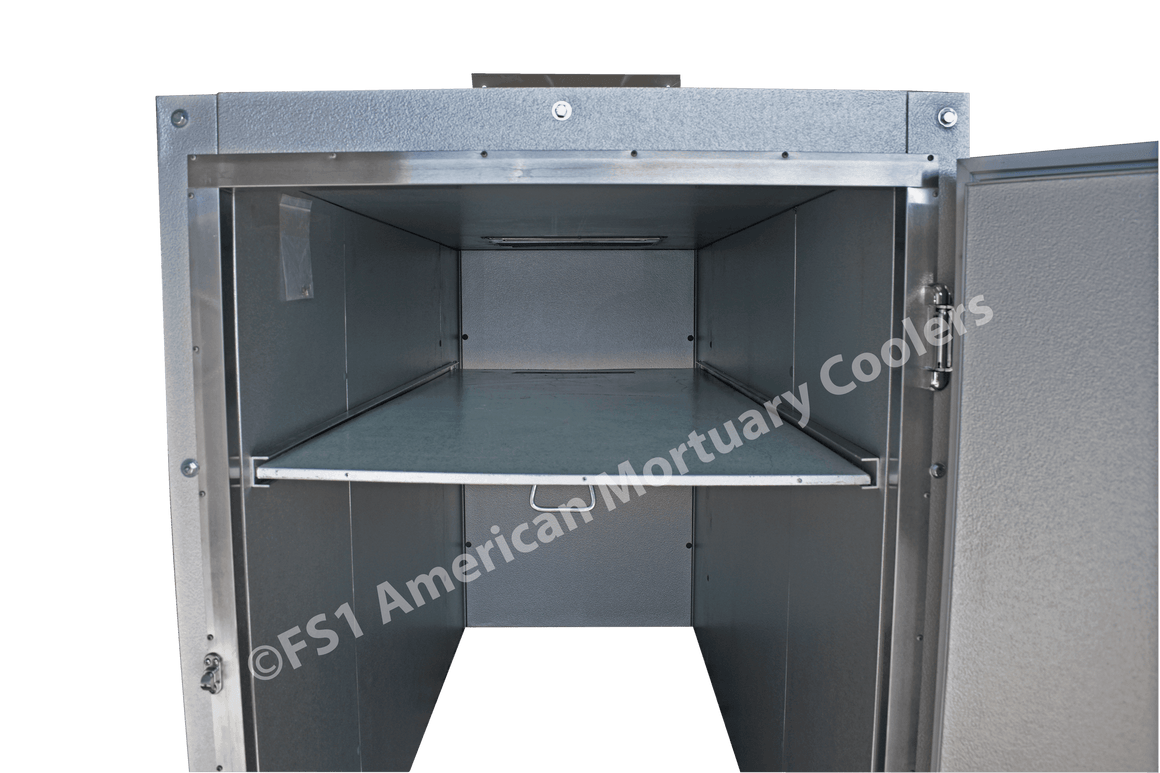

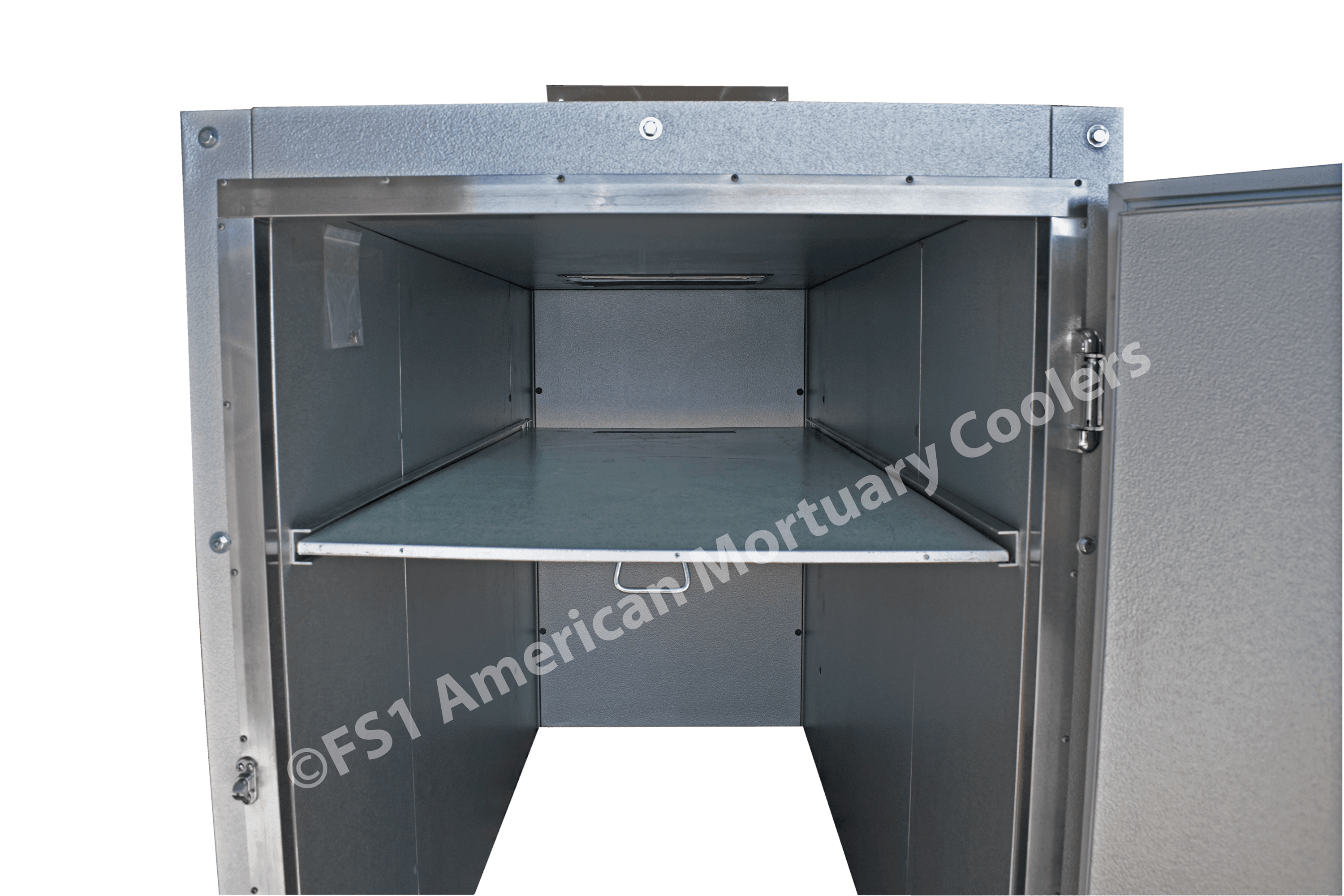

| Upper storage shelf | Included, mounted 14.5" below the interior ceiling |
| Door opening | 36"W clear, side to side |

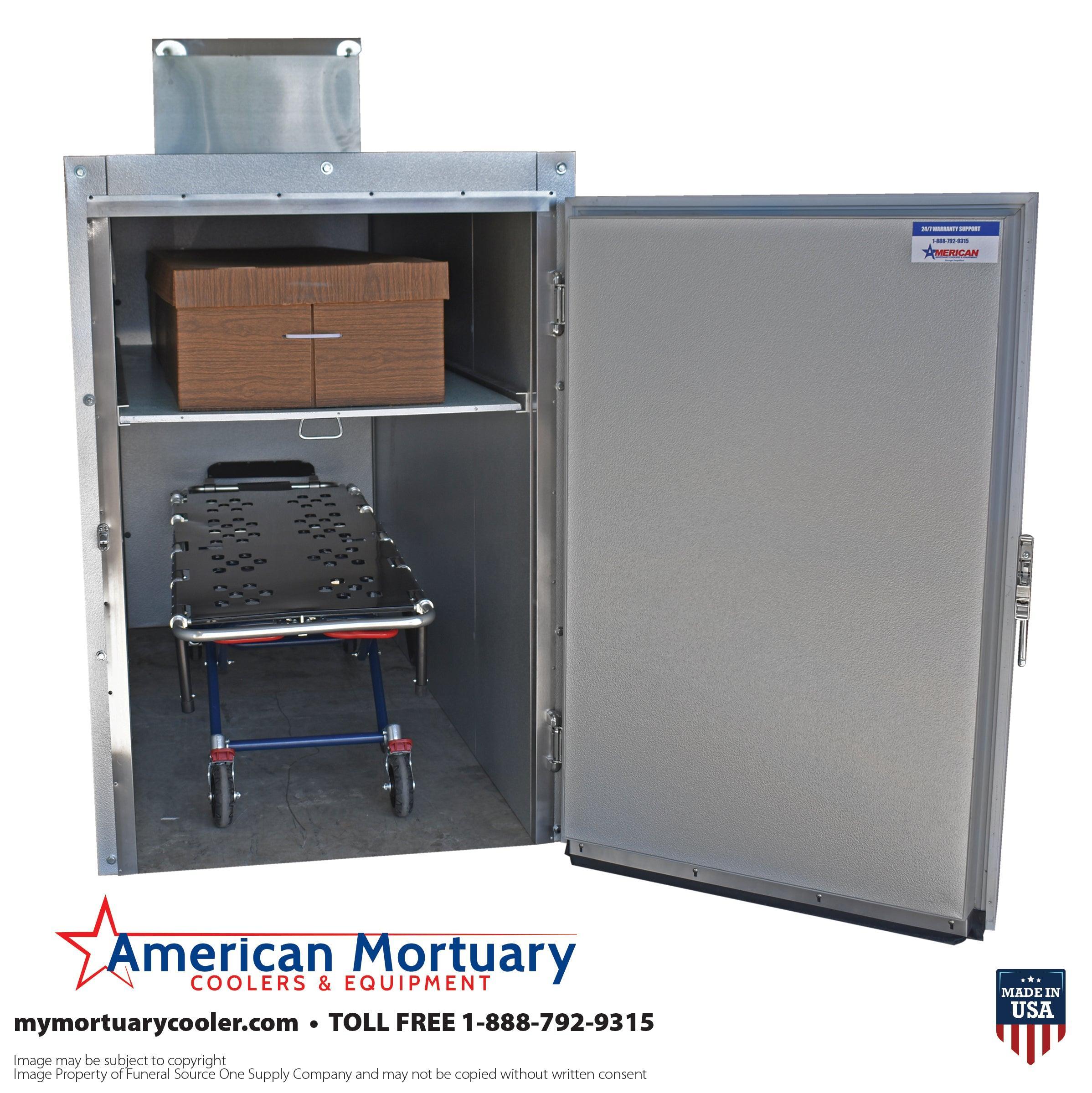

| Loading method | Roll-in at cot height, cot or dressing table rolls straight in, no lifting |
| Shipping weight | 1,400 lbs (freight) |
Standard design features
- Self-contained condensing unit. The compressor, condenser and evaporator come as one factory-packaged unit mounted on the cabinet, so no refrigeration lines are run on site.
- Digital thermometer and temperature controller. A digital display shows the box temperature at a glance, and the controller holds the setpoint you choose for body holding.
Door hardware and refrigeration
- Chrome-plated lockable door handle. A standard handle is included. Add the chrome-plated lockable handle to keep the cooler closed to everyone except authorized staff.
- Magnetic gasketed door seal. The insulated door closes against a magnetic gasket that seals the whole door edge, which keeps cold air in and holds 34–40°F after the door is opened. Clean and inspect the gasket weekly with mild soap and water.
- Energy-compliant refrigeration. The self-contained drop-in refrigeration system uses A2L refrigerant and meets current DOE/EPA efficiency rules. Standard units are sized for a conditioned room, and upgrade levels are available for warmer rooms.
Specifications
| Body capacity | 2 cadavers, extra-wide cot-direct roll-in |
|---|---|
| Door handing | Right-hand or left-hand |
| Cabinet construction | Modular insulated, 4″ urethane core |
| Refrigeration | Self-contained |
| Operating range | 34–40°F body holding, see temperature guide |
| Voltage | 115V / 1-phase / 60 Hz · 4.6 A · NEMA 5-20R plug |
Electrical & Compressor Specifications
Amperage: 4.6 A, 115V · 1-phase · 60 Hz · Plug type: NEMA 5-20R, cord & plug supplied
| Supply voltage | 115V / 1-phase / 60 Hz |
|---|---|
| Unit amps (running) | 4.6 A |
| Minimum circuit ampacity (MCA) | 15.0 A |
| Max overcurrent protection (MOPD) | 15 A fuse / breaker |
| Cord & plug | Supplied from factory, NEMA 5-20R |
| Compressor system capacity | 2,900 BTU/h @ 95°F ambient · 35°F box |
| Refrigerant | A2L |
| Defrost | Air defrost |
| Evaporator fan motor | 2-speed EC · 250 CFM |
| Efficiency (AWEF) | 5.61, meets DOE minimum |
| Refrigeration unit size | 15.25″ H, 28.5″ × 24.5″ footprint · 115 lb package |
| Refrigeration platform | Heatcraft Climate Control PRO³, factory electrical spec sheet (PT0032MANAPNA) |
Plug-and-play on a dedicated 115V / 20-amp circuit, no hard-wiring required. A stamped electrical schedule ships with every quote.
Ambient Room Temperature & Refrigeration Sizing, Read Before You Order
The temperature of the room around your cooler matters as much as the cooler itself. Every refrigeration system rejects heat into that room. The hotter the room, the longer the compressor runs, and the harder it is to hold a steady 34–40°F . Standard refrigeration is sized for a conditioned, ventilated indoor room . If your space runs warm, upsize the refrigeration when you order.
Why ambient temperature is critical
- Holding temperature: an undersized system in a hot room cannot recover after each door opening, so box temperature drifts above 40°F.
- Compressor life: long, continuous run times in high heat wear out the compressor and fans early.
- Condensation & humidity: warm, humid rooms produce more condensate. Connect the drain line, and route it to the external drain or a condensate pump.
How to choose
- Account for heat from nearby equipment, sun-facing walls, bay doors and how often the cooler is opened.
- Keep the required clearances: 1″–1.5″ around the cabinet and 16″ above and around the compressor. A blocked compressor behaves like a hot room.
- Install indoors only. Unconditioned garages, mechanical rooms and rooms next to crematory retorts need a review before ordering, call 1-888-792-9315.
If the room runs warmer than 75°F, choose a Refrigeration Upsize option above.
Sizing, door handing & cot compatibility
The 2-Body Bariatric Roll-In has the same 89″ depth and 61″ cabinet height as the standard 2BR, widened to 44″ with a 36″ clear door so a bariatric cot or dressing table rolls straight in. For standard-width cots, see the 2-Body Standard Roll-In (2BR).
Door handing: match right-hand or left-hand swing to prep-room flow so the cot operator has unobstructed roll-in from the staging side.
Frequently asked questions
What temperature does this mortuary cooler hold, and when is a freezer needed?
It holds a steady 34–40°F for short-term body holding. Facilities that hold remains longer, or hold unidentified cases, add a mortuary freezer. Compare both in mortuary cooler vs. morgue freezer.
How many bodies does it hold, and how does it load?
It holds 2 standard-sized bodies. Loading method: roll-in at cot height. The cabinet is 89"D × 44"W × 61"H (76.25"H with the refrigeration unit), with a door opening of 36"W clear, side to side.
What room conditions does it need?
Standard refrigeration is sized for a climate-controlled, ventilated indoor room at 65–75°F with normal door use. If the room runs warmer or sees heavy door traffic, choose a Refrigeration Upsize option.
Does it need a floor drain?
Warm, humid rooms produce more condensate. Connect the drain line, and route it to an external drain or a condensate pump.
Upright, roll-in or walk-in: which fits my facility?
Upright and roll-in coolers suit lower census and tight prep rooms. A walk-in with racks scales for higher census and surge capacity. Compare them in upright vs. walk-in mortuary coolers, or browse upright mortuary coolers.
Can I get a custom size or a walk-in instead?
Yes. Send your room dimensions and body capacity through the custom walk-in quote request, and we will return a written quote.
How is shipping charged?
The cooler ships by freight, and shipping is calculated at checkout for your delivery address. Purchase orders are accepted.
Return Policy: All coolers, racks, lifts, and other products are non-returnable, no exceptions. All refrigeration products purchased on or after 1/1/2026 are 100% non-returnable under any circumstances. Please review our full Return Policy before purchasing.
