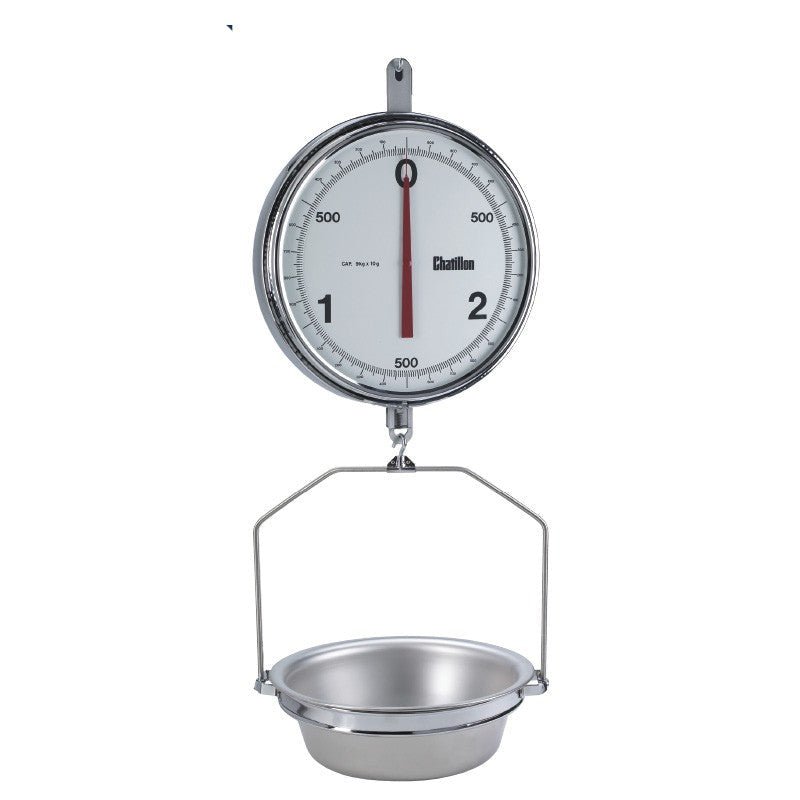

CHATILLON® 1300 Series Mechanical Hanging Autopsy Scale – Model 1035-1300W

The CHATILLON® 1300 Series mechanical hanging scale is the industry standard for accurate and reliable weight measurement in autopsy, pathology, and laboratory settings. This heavy-duty scale features a large, 13-inch double dial with a chrome-plated housing, providing easy, at-a-glance readings from both sides.

Engineered for precision, the scale utilizes two brass dashpots to eliminate pointer oscillation, ensuring stable and accurate measurements every time. With a low-friction stainless steel pinion and bronze rack combination, the 1300 Series is built to perform flawlessly even in elevated temperatures.

Features & Benefits

• Dual 13-inch Reading Dials – Large, glass-covered dials with bold black numerals and a contrasting red pointer for easy reading. One dial reads clockwise, the other counterclockwise.

• No Pointer Oscillation – Two internal brass dashpots ensure a stable pointer for fast and accurate weighing.

• Durable Construction – Features a chrome-plated housing, a stainless steel pinion, and a bronze rack for low-friction, long-term performance.

• Temperature Compensated – A dual spring mechanism ensures precision even when operating temperatures change.

• High Capacity – Full scale capacity is achieved in just three dial revolutions.

• Zero Adjust / Tare – A zero adjust screw allows for taring out containers, up to 10% of the dial's reading.

• Flexible Attachments – Can be equipped with a standard bottom hook or a removable stainless steel pan to suit your needs.

Technical Specifications

• Model: 1035-1300W

• Dial Graduations: Available in 3 kg x 3 g or 5 kg x 25 g

• Maximum Overload: 120% of Rated Capacity

• Tare Capacity: 10% of Full Scale Capacity

• Operating Temperature: 45°F to 100°F (7°C to 38°C)

• Weight (with Hook): 14 lbs (6.4 kg)

• Weight (with AS Pan): 18 lbs (8.2 kg)

• Warranty: 1 Year

Attachment Options

• Standard Bottom Hook: For general purpose hanging and weighing.

• Removable Stainless Steel Pan: Constructed of 300 series stainless steel with drain holes per USDA specifications, perfect for weighing organs or specimens.

Purchase our 1300 Series Hanging Autopsy Scales online today through our secure webstore and experience accurate, reliable results with ease. Order now for fast and convenient delivery.

American Mortuary Equipment: The Trusted Name in Autopsy and Mortuary Supplies.
