3BSU-RH-STD-KIT

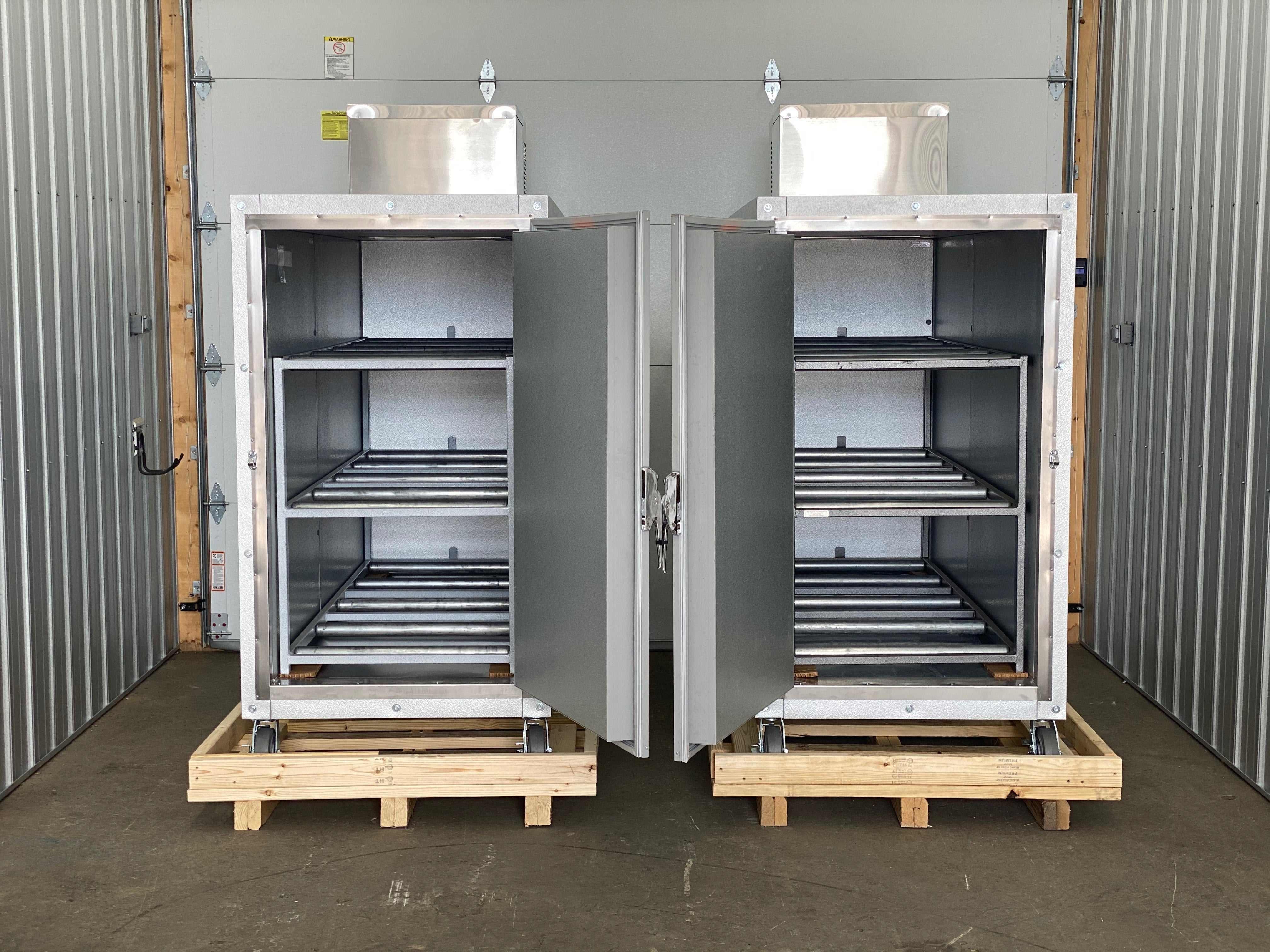

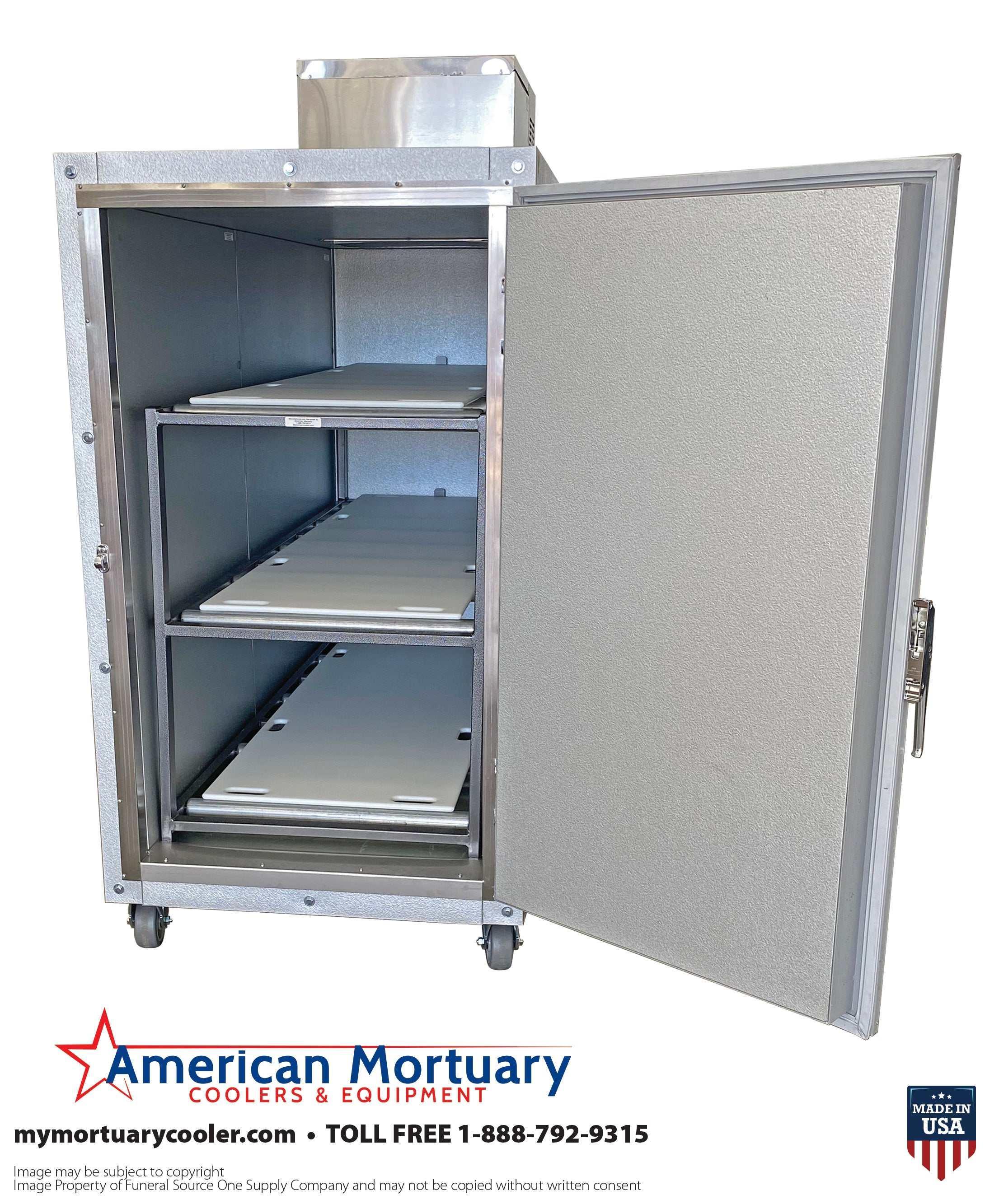

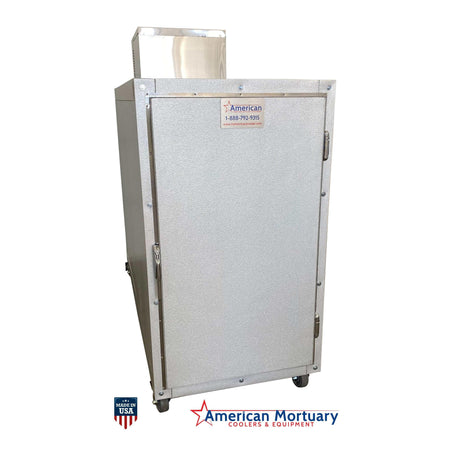

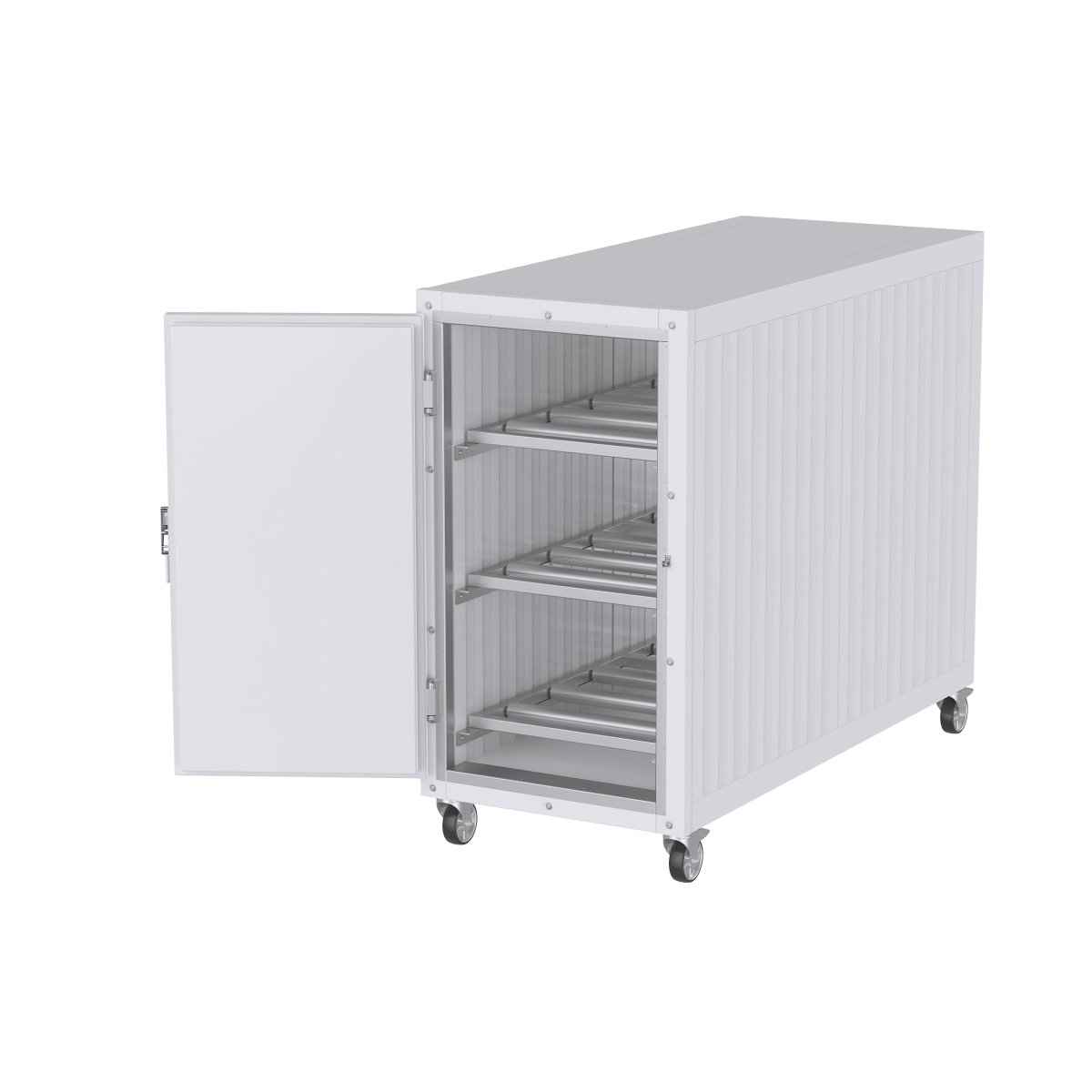

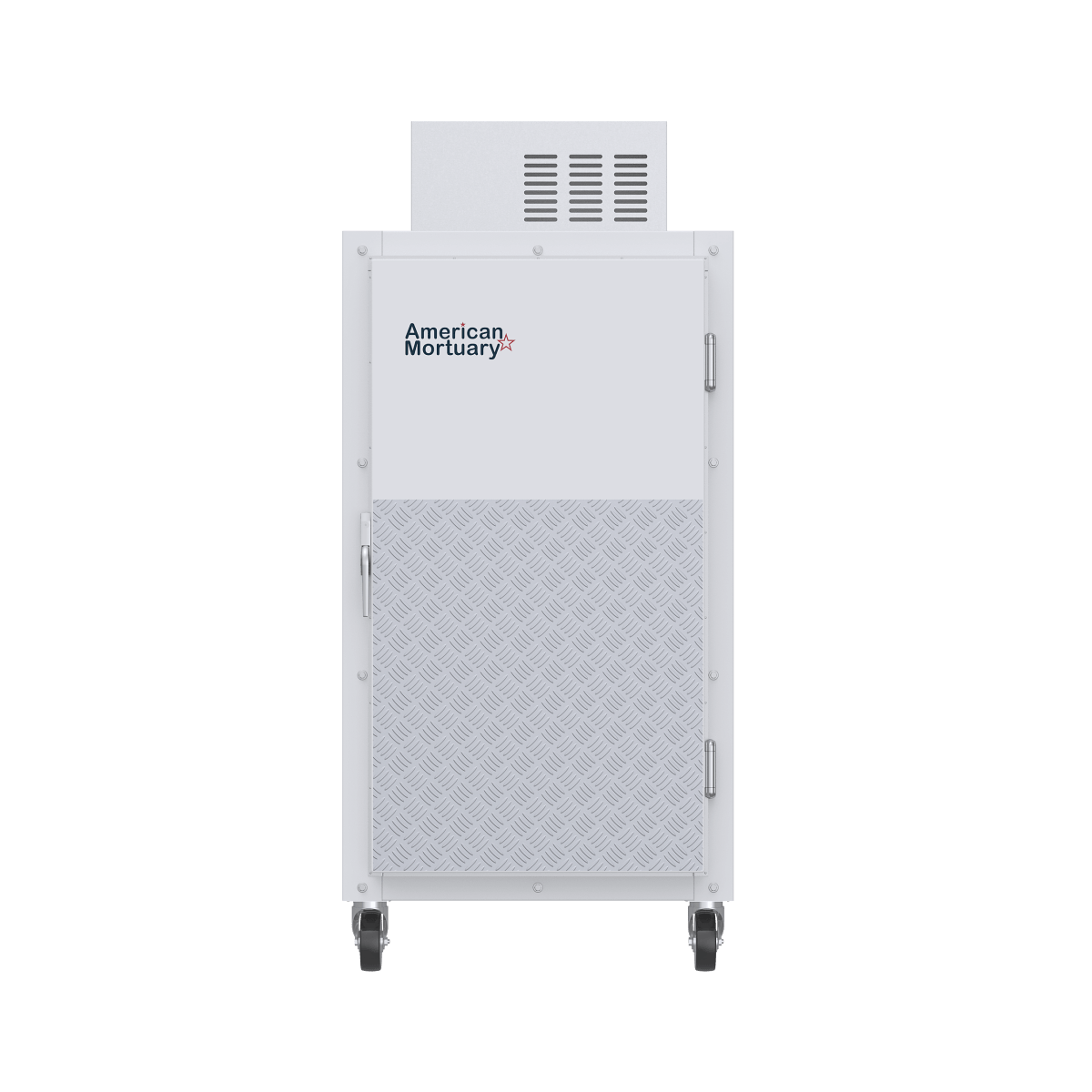

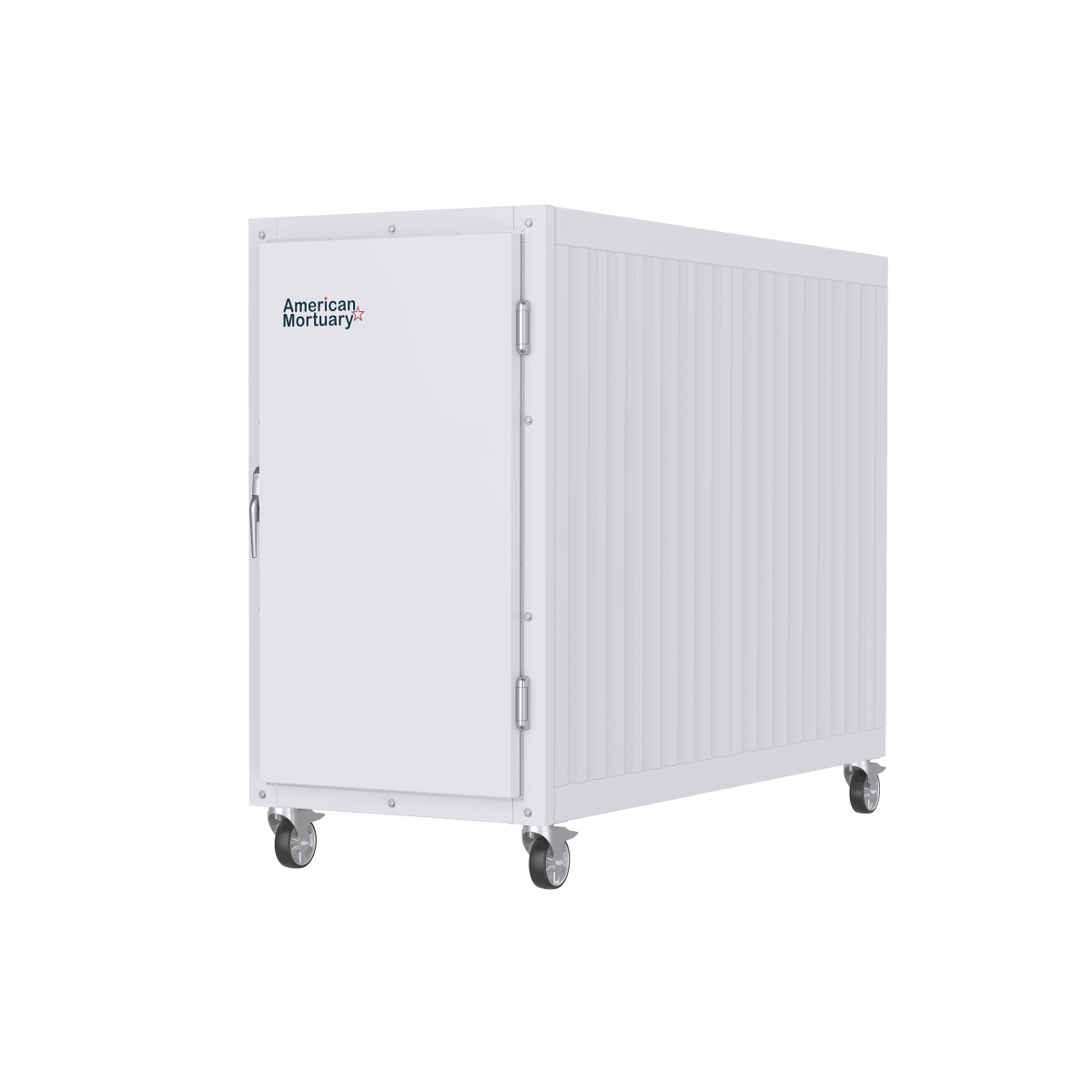

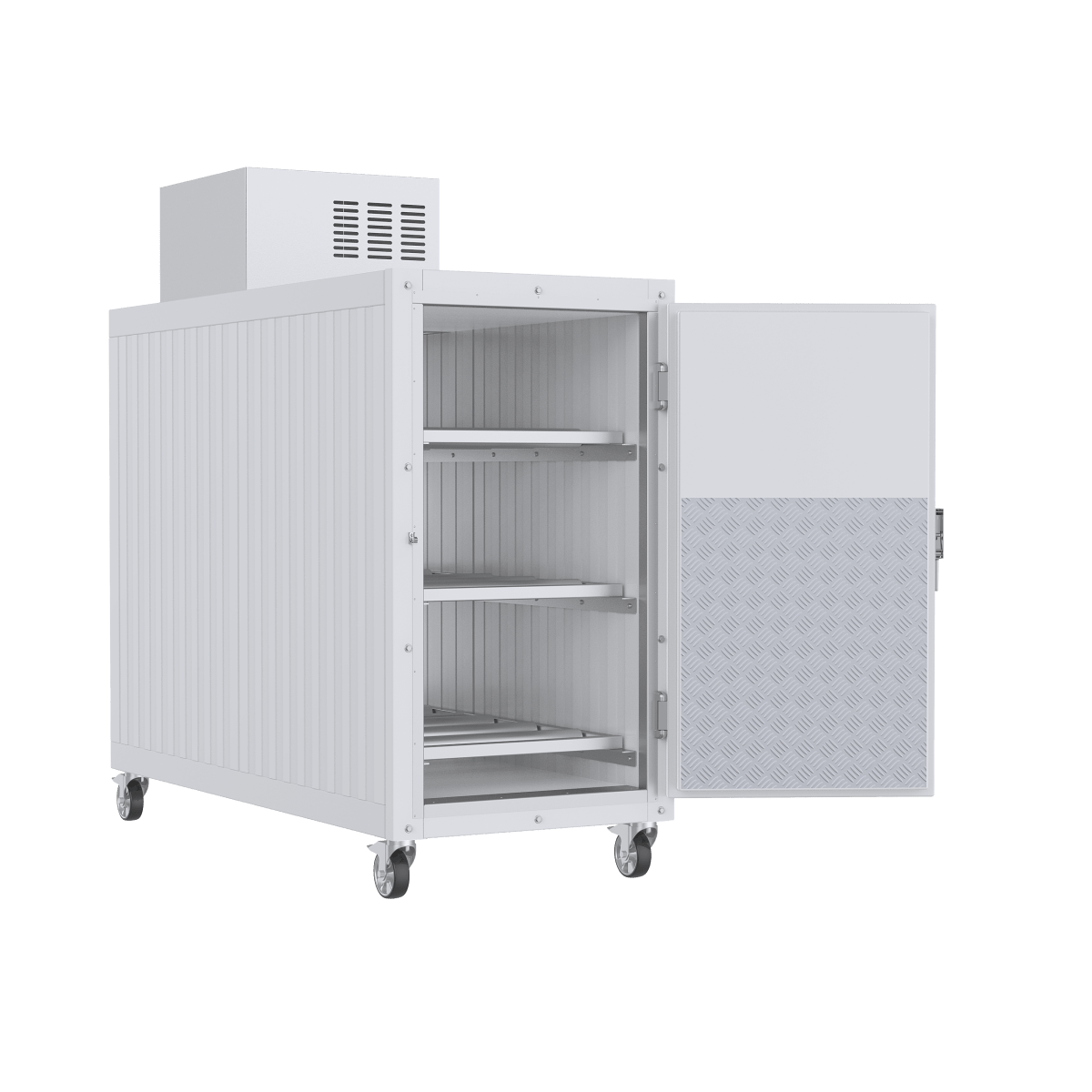

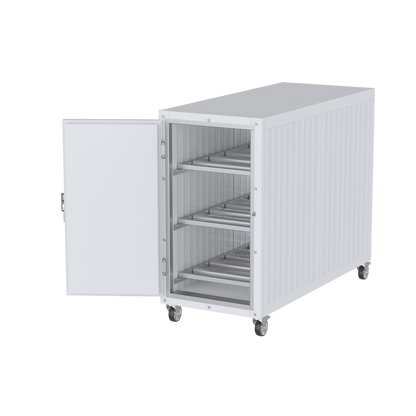

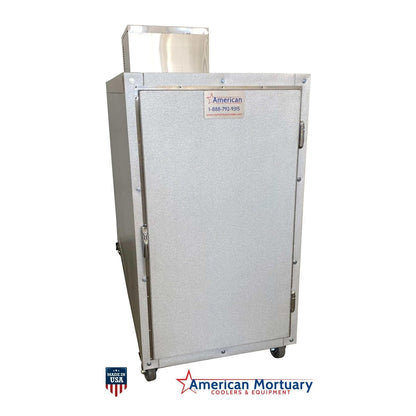

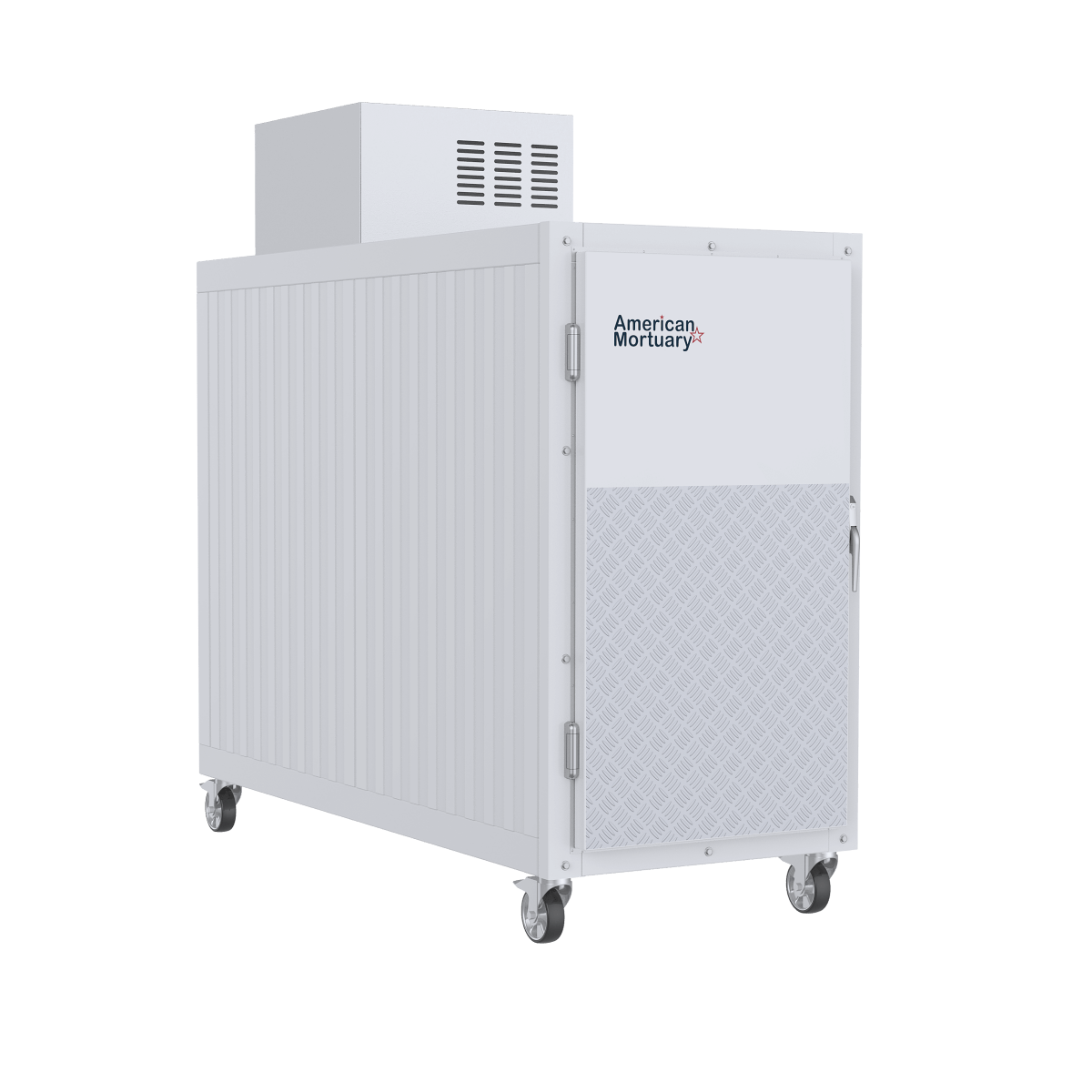

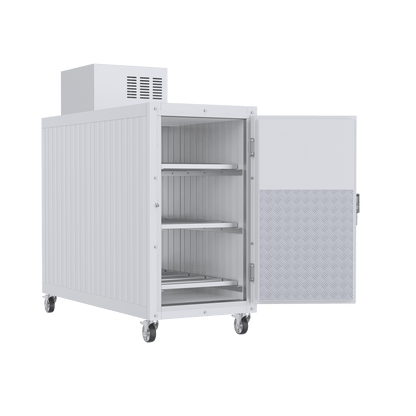

3 Body Standard Upright Mortuary Cooler
Regular price
$8,204.26
Sale price
$8,204.26
Regular price
$8,500.00
Unit price
per
Shipping calculated at checkout.
β WARRANTY NOTICE β NO EXTENSION CORDS
This unit must plug directly into its own dedicated 115V, 20-amp circuit (NEMA 5-20R receptacle). Use of any extension cord, power strip, or plug adapter immediately voids the warranty and can damage the compressor. Details: Warranty Policy.
Over
mortuary products sold since 2009
Up to 3% off

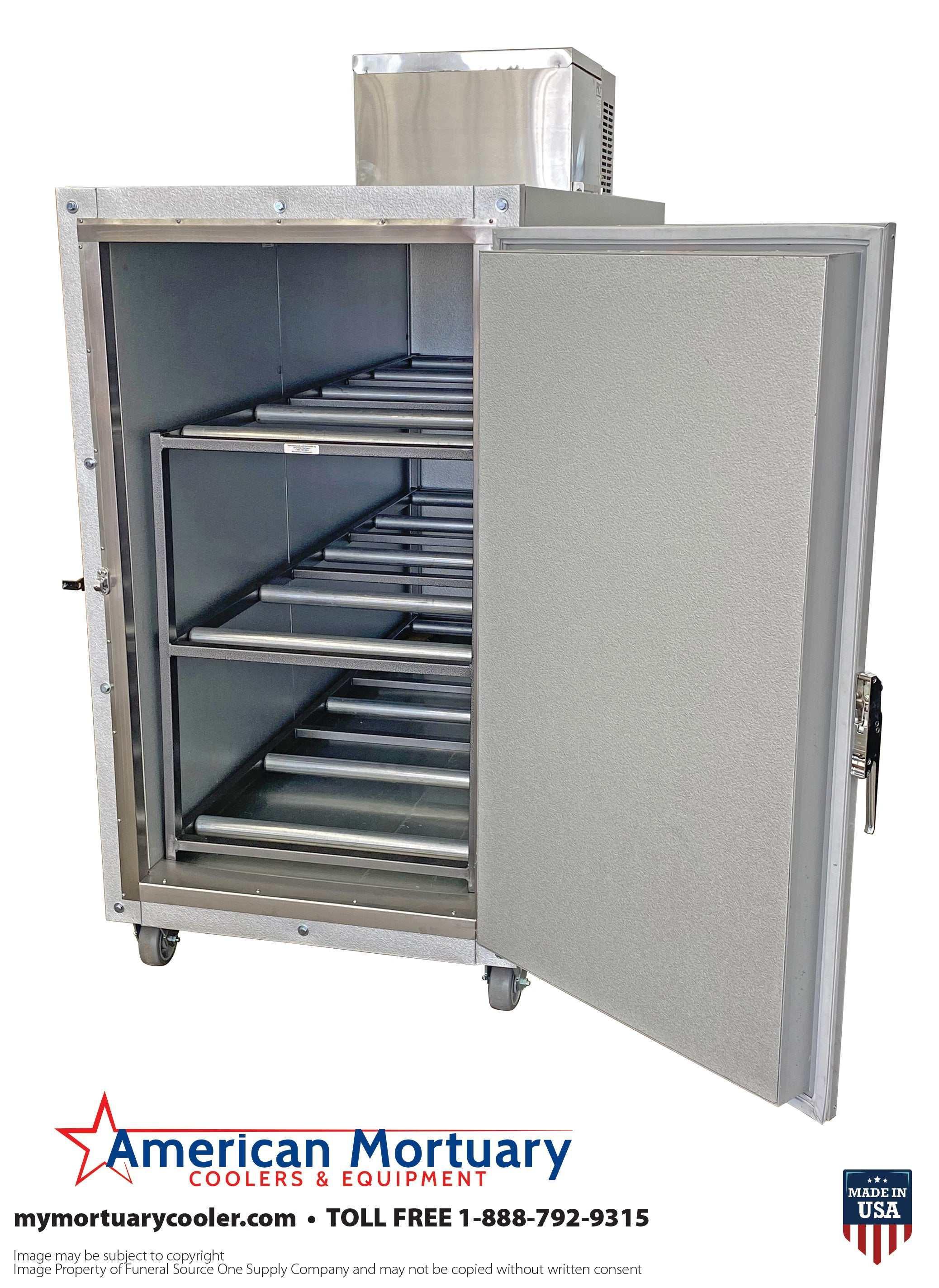

Entry-tier 3-cadaver upright cooler in a standard-width cabinet β left, right, or either door hinge at order, self-contained 115V refrigeration, built in Johnson City, Tennessee.
At a glance

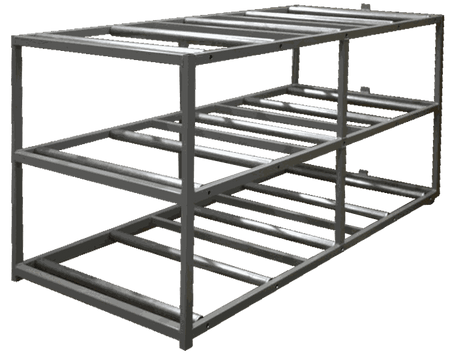

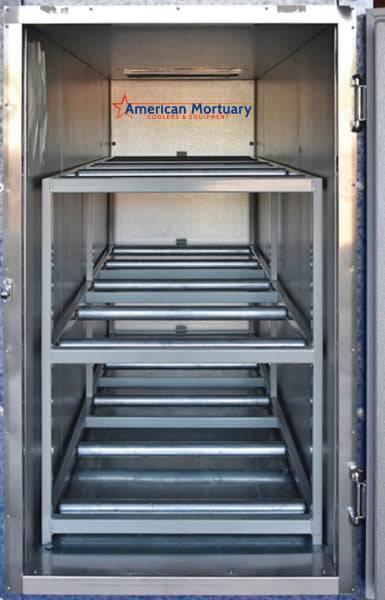

- 3-body capacity β standard-width upright Β· 600 lbs per tier

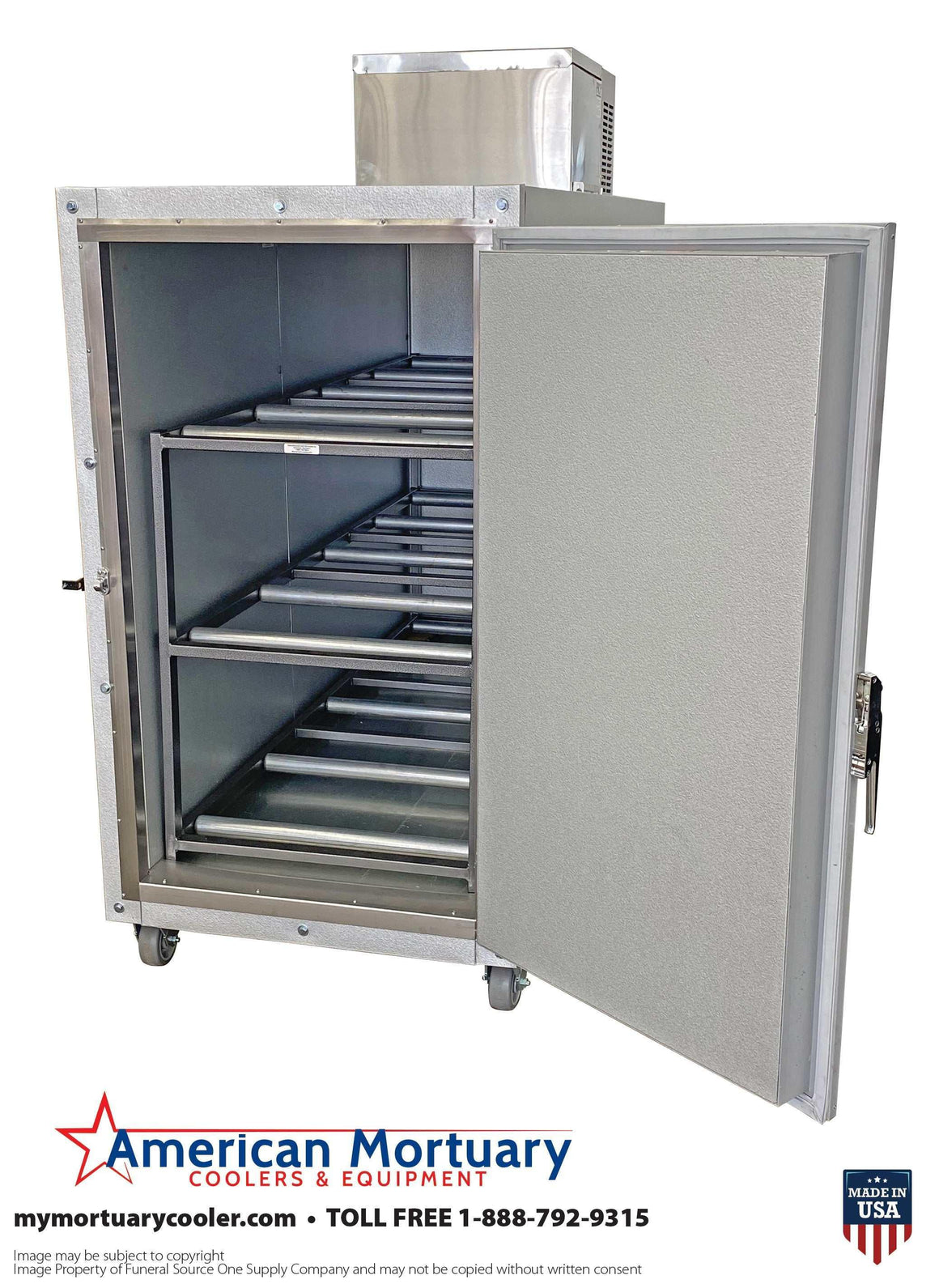

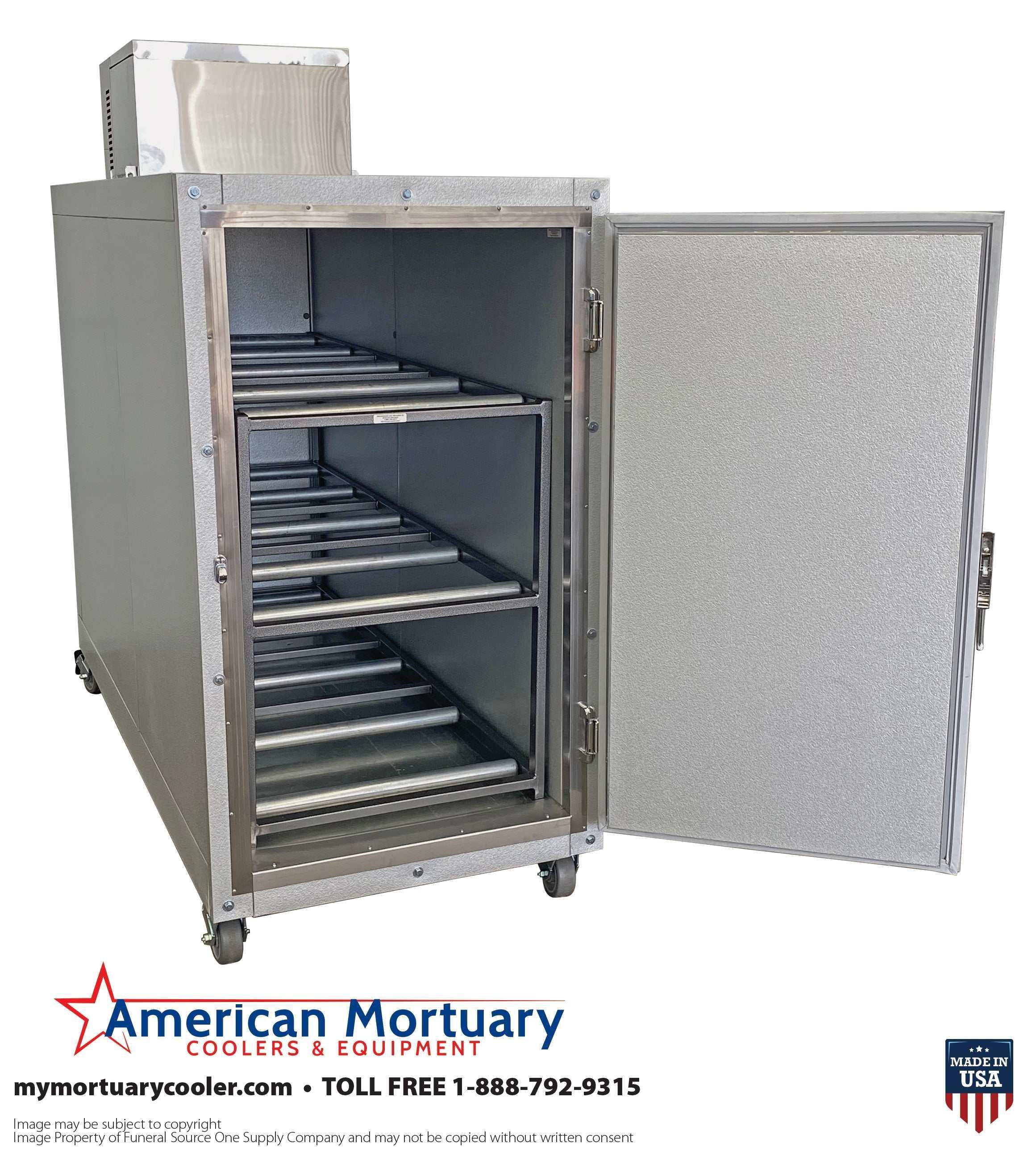

- Door hinge selection β Left, Right, or Either at order
- Modular insulated cabinet, 4β³ urethane core

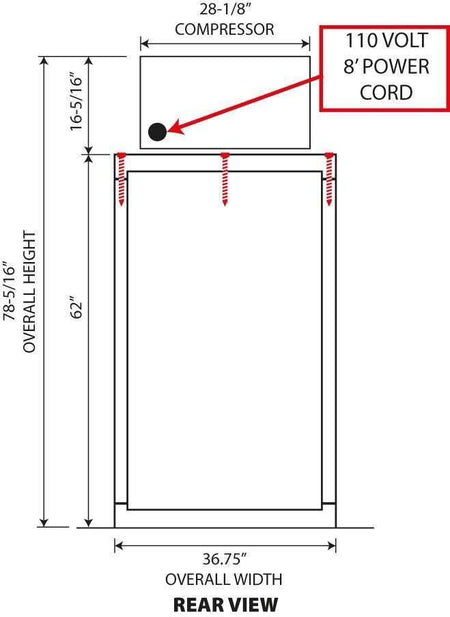

- Self-contained refrigeration β 115V single-phase, NEMA 5-20R plug
- NSF, UL, ASTM E84 certified
- 15-year structural panel warranty Β· made in the USA
Specifications
| Body capacity | 3 cadavers, standard-width upright |
|---|---|
| Door hinge | Left, Right, or Either (specify at order) |
| Cabinet construction | Modular insulated, 4β³ urethane core |
| Refrigeration | Self-contained |
| Operating range | 34β40Β°F body holding |
| Weight per tier | 600 lbs maximum per storage position |

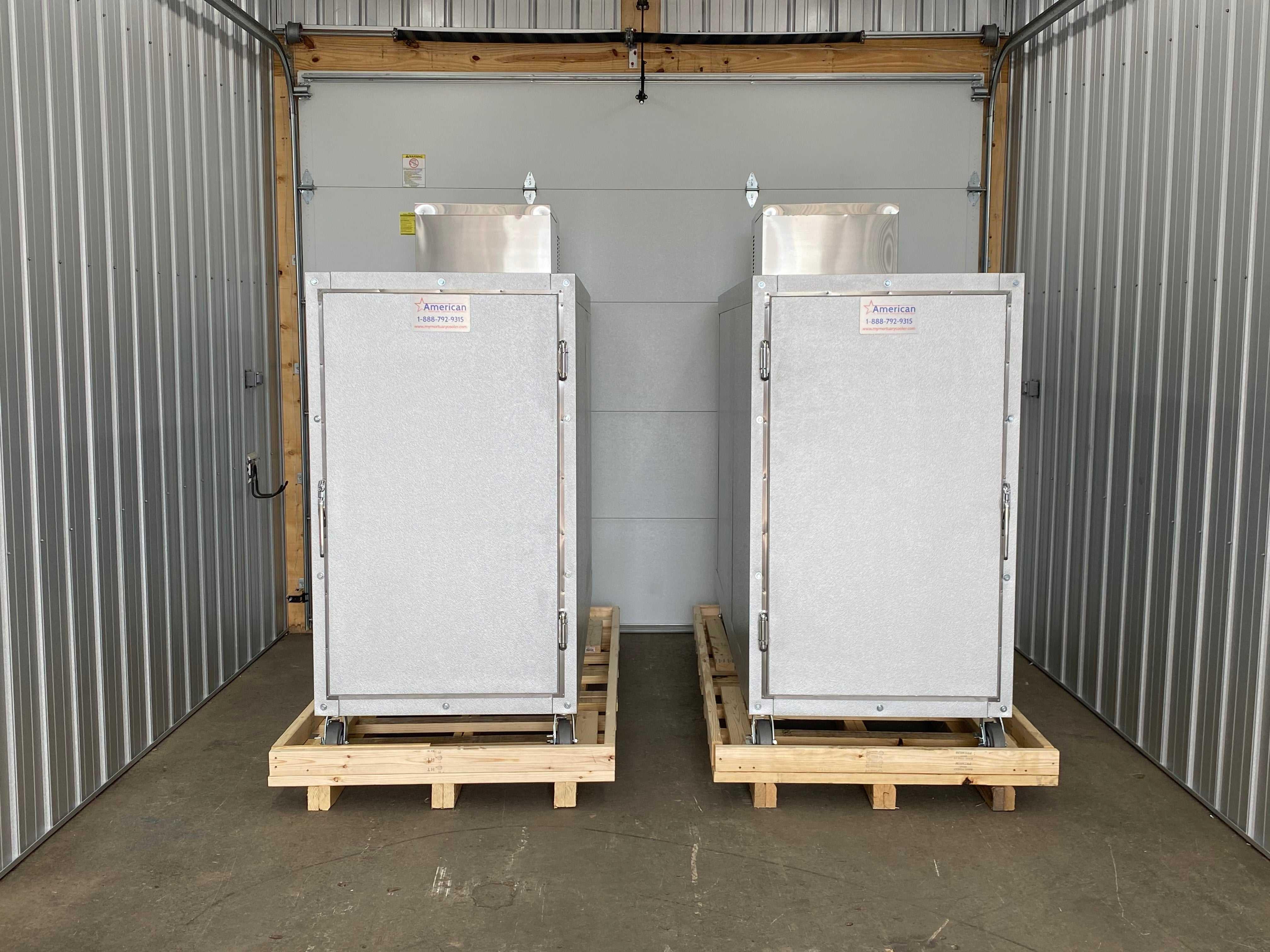

| Gross ship weight | 1,500 lbs (freight, liftgate delivery included) |
| Voltage | 115V / 1-phase / 60 Hz Β· 4.6 A Β· NEMA 5-20R plug |
| Certifications | NSF, UL, ASTM E84 Class A, DOE/EPA EISA 2007, Prop 65 |
| Warranty | 15-year panel structural β see Warranty Policy (WR-1.0) |
| Country of origin | United States β Johnson City, Tennessee |
| Manufacturer | American Mortuary Coolers |
Electrical & Compressor Specifications
Amperage
4.6 A
115V Β· 1-phase Β· 60 Hz
Plug Type
NEMA 5-20R
Cord & plug supplied
| Supply voltage | 115V / 1-phase / 60 Hz |
|---|---|
| Unit amps (running) | 4.6 A |
| Minimum circuit ampacity (MCA) | 15.0 A |
| Max overcurrent protection (MOPD) | 15 A fuse / breaker |
| Cord & plug | Supplied from factory β NEMA 5-20R |
| Compressor system capacity | 2,900 BTU/h @ 95Β°F ambient Β· 35Β°F box |
| Refrigerant | R-290 (low-GWP hydrocarbon) |
| Defrost | Air defrost |
| Evaporator fan motor | 2-speed EC Β· 250 CFM |
| Efficiency (AWEF) | 5.61 β meets DOE minimum |

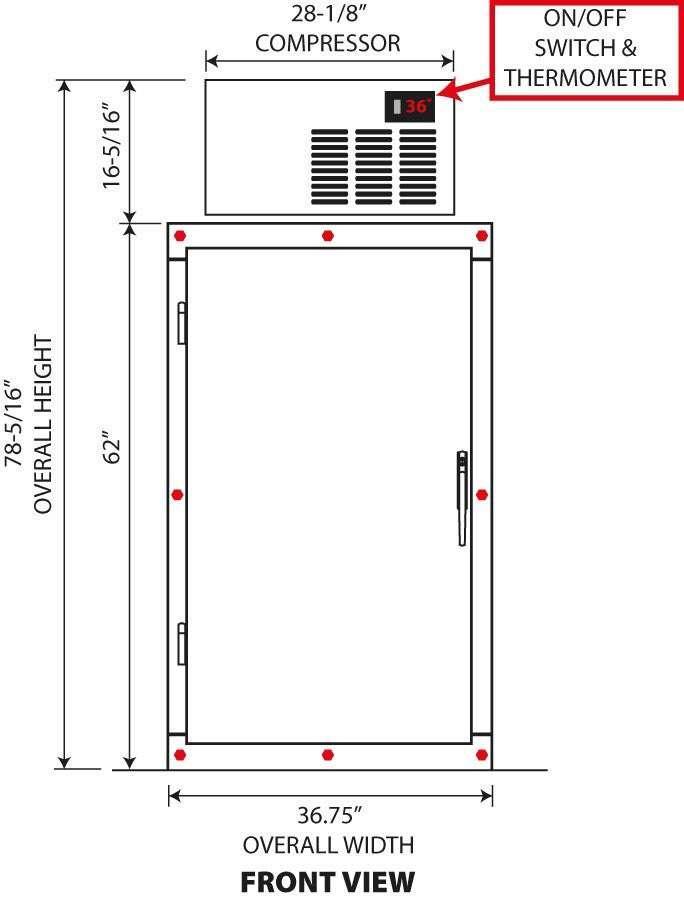

| Refrigeration unit size | 20.75β³ H Γ 28.56β³ W Γ 29.75β³ D Β· 115 lb package |
| Listing | UL listed β US & Canada |
| Refrigeration platform | Heatcraft Climate Control PROΒ³ β factory electrical spec sheet (PT0032MANAPNA) |
Plug-and-play on a dedicated 115V / 20-amp circuit β no hard-wiring required. A stamped electrical schedule ships with every quote.
Important β Read Before Startup: 2026 Packaged Refrigeration System
Due to the changing refrigerant models under new Freon regulations and updated guidelines, it is critical that you completely read all startup instructions before using your packaged refrigeration system. Please be sure you understand your startup settings and the proper overflow and humidity drainage ports, which require hose adapters.
Condensation Drain Requirement
All 2026 Heatcraft compressors require a drain hose attached to the drain port for condensation, to maximize energy efficiency. Connect the supplied drain line to the drain port before startup.
External Drain Connection
In high-humidity environments or during continuous heavy run-times, the unit may experience overflow. To prevent this, the indoor unit is equipped with a 3/4β³ NPT external drain connection that can be routed to an external drain line or a field-supplied condensate pump.
Internal Re-Evaporation
Indoor PROΒ³ models include a hot-gas re-evaporation pan beneath the compressor, which uses hot refrigerant gas to evaporate condensation naturally during normal operation.
2026 and Forward β Heatcraft PROΒ³
2026 and later packaged Heatcraft PROΒ³ systems include many new features made possible by an extremely high-efficiency process. Reviewing the startup documentation ensures these systems perform as designed.
American Mortuary Coolers accepts no liability or responsibility for a customer's failure to properly start up the new AW2 fully packaged, plug-in refrigeration units. If you have specific questions regarding functions and operations, please reach out prior to ordering.
Full startup manuals and tech bulletins: Packaged Refrigeration Manuals & Startup Guide
Questions before you order? Call 1-888-792-9315 or email cool@mymortuarycooler.com.
Sizing, weight ratings & cot compatibility
The 3-Body Standard Upright is the entry tier at 3-body capacity, built for small-to-mid funeral homes, single-physician coroner offices, hospital outpatient morgues, and crematory holding rooms. For bariatric clearance at the same capacity, see the 3-Body Extra Wide or side-loading 3-Body Extra-Wide Side-Load. Step down to the 2-Body Standard Width. Step up to the 6-Body Dual-Door.
Weight per tier: rated at 600 lbs maximum per storage tier, covering the full standard-width case envelope including case weight, tray, and cot board. For recurring bariatric cases exceeding 500 lbs, see the 3 Body Extra Wide (rated 850 lbs per tier).

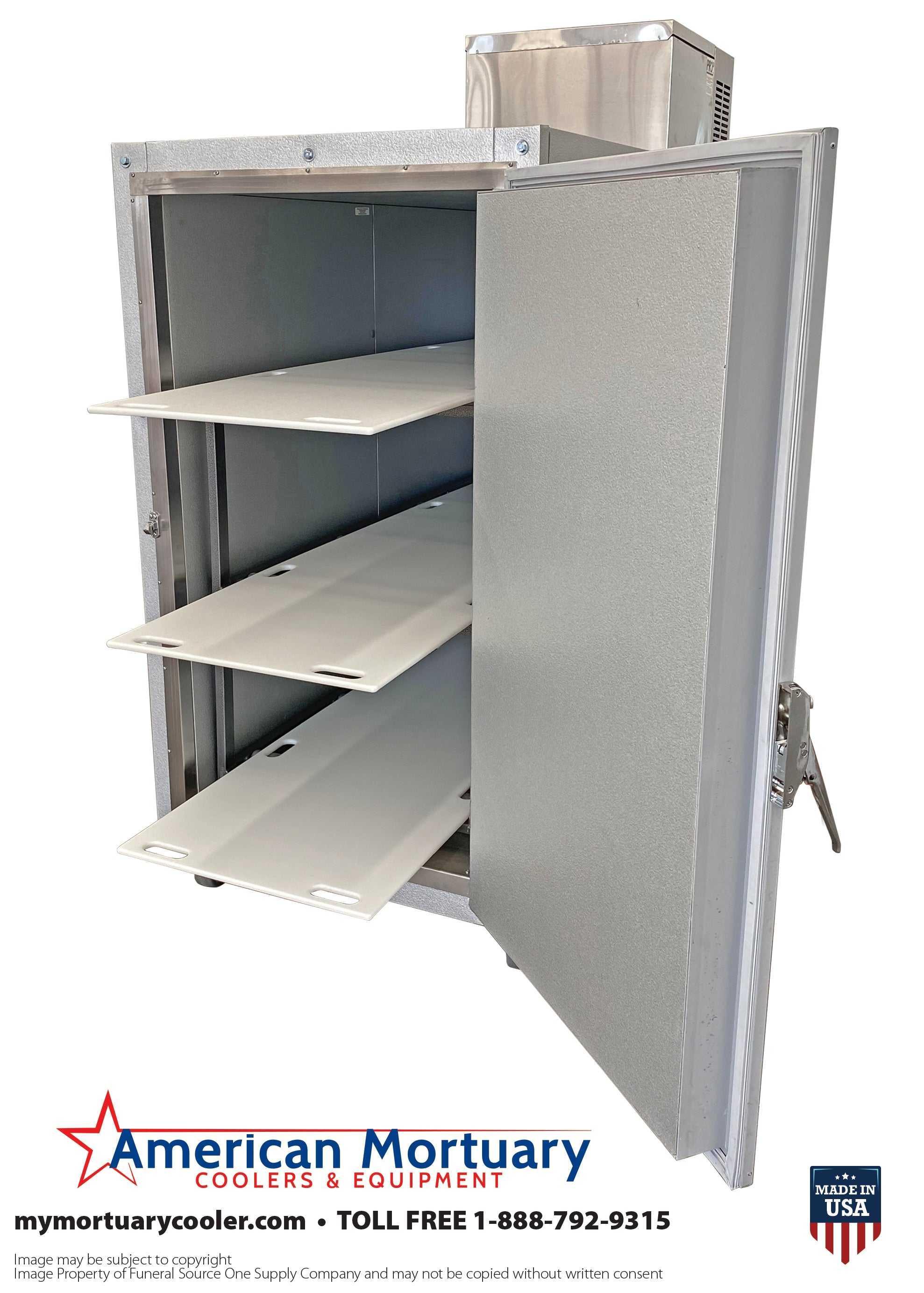

Cot compatibility: pairs with the 500E, PRO 650X, and 1000E Bariatric cots for case-arrival workflow. Standard width β for bariatric clearance, see the extra-wide variants above.
Sizing methodology: mortuary cooler buyer's guide Β· how to choose the right size.
State-by-state availability & shipping

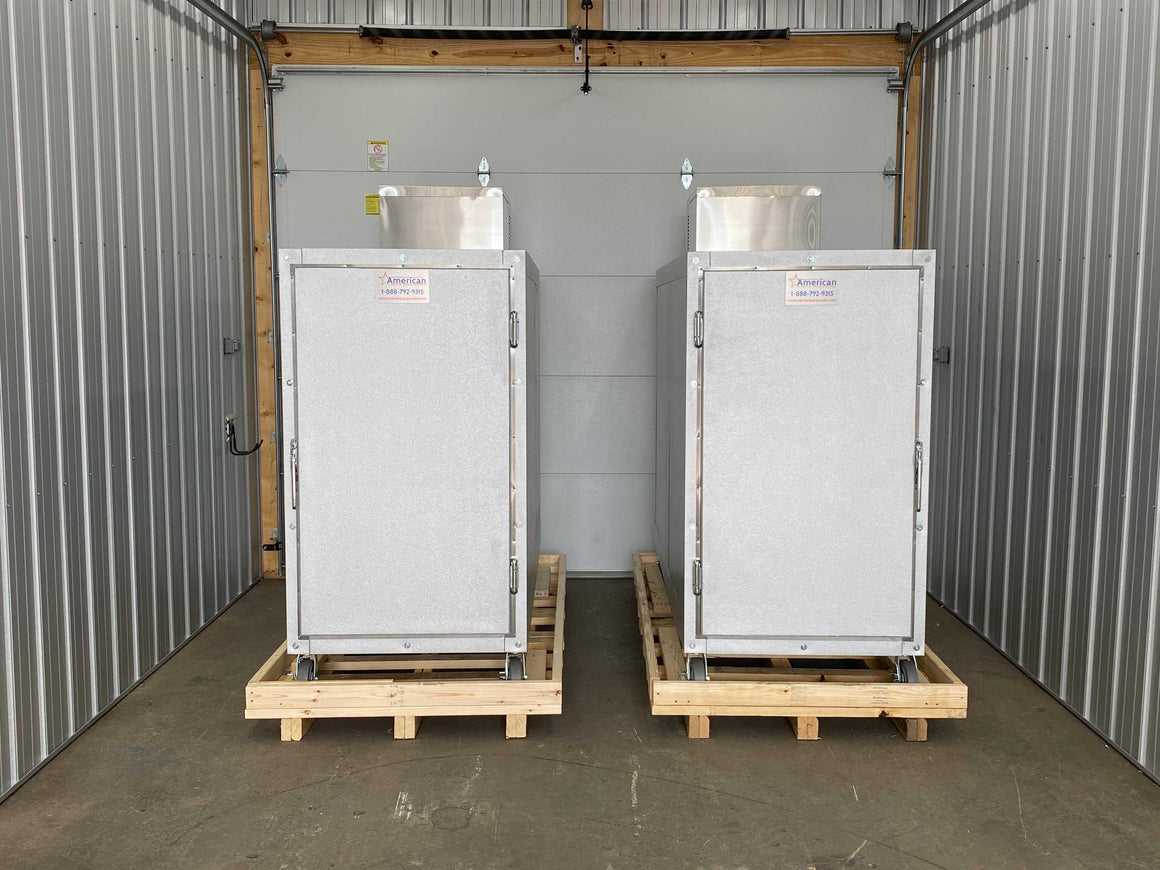

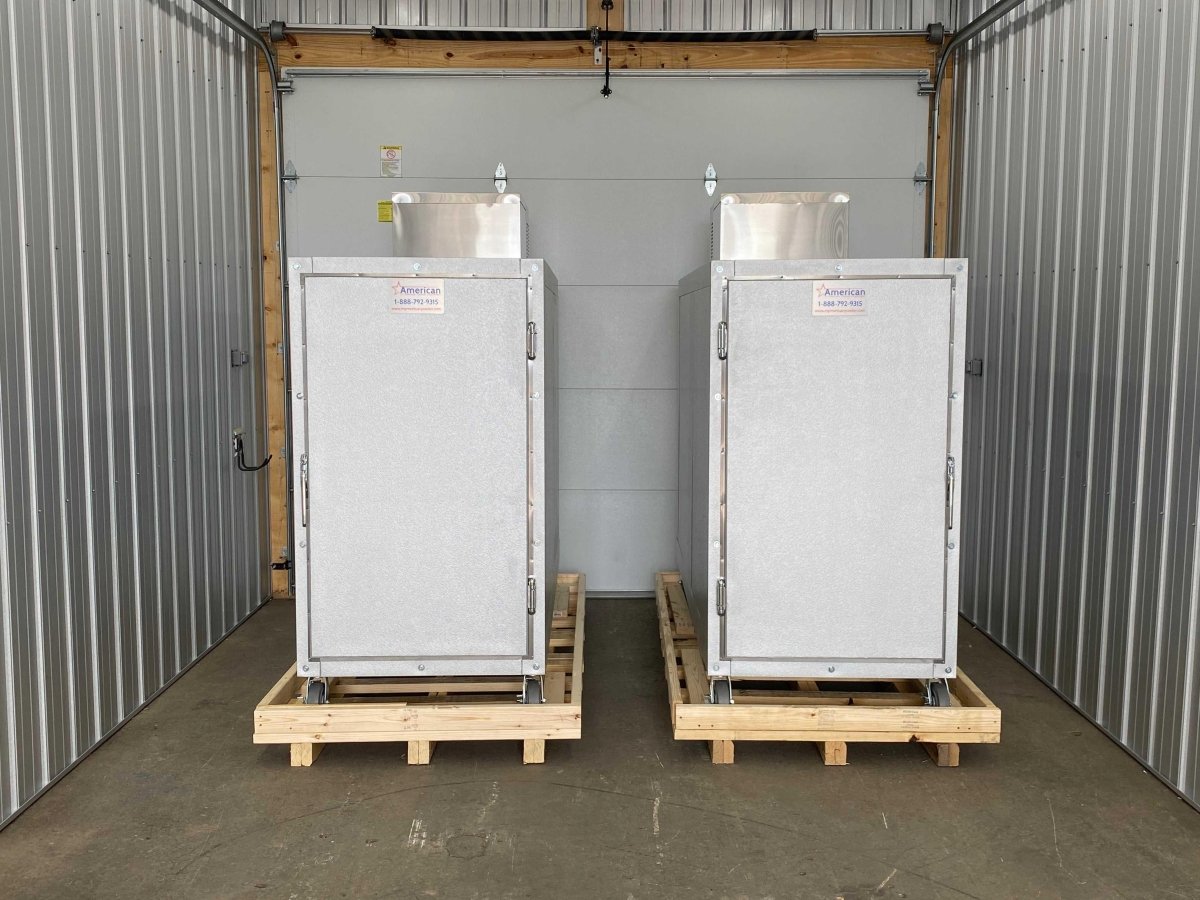

Ships factory-direct from Johnson City, Tennessee to all 50 states β most orders within 2 business days. Gross ship weight 1,500 lbs; liftgate delivery included. Common delivery destinations and state-level guides:
Alabama Β· Arizona Β· Arkansas Β· California Β· Colorado Β· Florida Β· Georgia Β· Illinois Β· Indiana Β· Iowa Β· Kansas Β· Kentucky Β· Louisiana Β· Maryland Β· Michigan Β· Minnesota Β· Mississippi Β· Missouri Β· Nebraska Β· Nevada Β· New Jersey Β· New Mexico Β· New York Β· North Carolina Β· Ohio Β· Oklahoma Β· Oregon Β· Pennsylvania Β· South Carolina Β· Tennessee Β· Texas Β· Utah Β· Virginia Β· Washington Β· Wisconsin
Regional desks: Southeast Β· Midwest Β· Northeast Β· Southwest Β· Rocky Mountain Β· Pacific Β· Canada.
Financing & planning guides
- 0% financing at checkout β Shop Pay Installments for qualified buyers
- 1% back on every Shop Pay purchase
- Extended financing on orders over $5,000 β apply here
- Section 179 in-year tax treatment β guidance here
Frequently asked questions
What is the weight limit per tier?
600 lbs maximum per storage tier. For cases over 500 lbs, see the 3 Body Extra Wide rated at 850 lbs per tier.
What is the gross ship weight?
1,500 lbs gross. Liftgate delivery is included. Freight ships from Johnson City, Tennessee via common carrier. Most destinations receive in 3β7 business days from shipment.
What electrical supply does it need?
A dedicated 115V / 20-amp circuit. The unit draws 4.6 running amps and ships with a NEMA 5-20R cord and plug β plug-and-play, no hard-wiring. See the Electrical & Compressor Specifications above.
Do I need a drain line?
In high-humidity or high-temperature environments, yes β attach a hose to the external drain connection and route to a drainage source. Full details on the packaged refrigeration manuals page.
How does this compare to the extra-wide 3-body coolers?
Standard width fits the standard case envelope. The extra-wide variants ship with bariatric cabinet clearance and an 850 lb per tier rating.
How do I pick door hinge?
Match the swing to your prep-room flow. "Either" lets the factory ship the standard-default hinge if you don't have a fixed plumbing or workflow constraint.
What temperature does it maintain?
34β40Β°F body holding standard.
Can it be financed?
Yes. 0% Shop Pay Installments. Qualifies for extended financing.
Where is it made?
Johnson City, Tennessee. American Mortuary Coolers, family-owned since 2009, A+ Rated by the Better Business Bureau.
