How many bodies does the 4-tier side-loading mortuary rack hold?

Four, one per tier. Trays load from the 85-inch long side.

How high is the first tier on the 4-tier rack?

Tier 1 is 9 3/16 inches from the floor to the top of the tier. Tiers 2, 3 and 4 are at 27 3/16, 45 3/16 and 63 3/16 inches. Overall height is 65 3/16 inches.

Which lift works with the bottom tier?

Tier 1 sits below the lowest deck height of every AME lift. The AME POWER 1030-LPL low-profile lift (13-inch minimum) is intended for low-tier work. Manual lifts with a 20 1/2-inch minimum, including the H1000-M, cannot reach tier 1.

Does the 4-tier mortuary rack ship assembled?

No. It ships unassembled for a two-person, stack-together setup.

What warranty does the 4-tier mortuary rack carry?

Coverage is listed in the American Mortuary Equipment Warranty Policy (WR-1.0) at mymortuarycooler.com/pages/warranty-policy.

American Mortuary Equipment

1 8

4 Tier Side-Loading Mortuary Rack

Model: Model 2000-4TSL

Model / SKU: Model 2000-4TSL

$1,484.01

$1,484.01 List Price ~~$2,021.89~~

Save $537.88

Estimated from Apply with TimePayment Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.

Zelle® ACH

Shipping calculated at checkout.

How many racks?

List price

Mix any AMC racks: side-load, end-load, multi-directional and cantilever all count together. Savings apply automatically in the cart.

Add boards & trays

Sold separately

HD plastic mortuary barrier board for supported rack and cooler storage

HD Storage Board 23.5″ × 76″ · standard width $166.32 each

0

TITAN 23 inch stainless steel mortuary body tray

TITAN 23″ Tray Standard · 18 gauge stainless $536.70 each

0

TITAN 27 inch stainless steel mortuary body tray

TITAN 27″ Tray Oversize · 16 gauge stainless $770.40 each

0

HD boards are storage barrier boards, not for lifting or transfer. Trays and boards are quantity per order, not per rack.

Add a loading lift

Optional

No lift

Manual Scissor Lift Foot-pump hydraulic · lowers to 20.5″ +$4,153.05

Low Profile Lift Battery powered · lowers to 13″ +$5,935.05

Package total

Outfitting a full cooler or several sites? Build a bulk package →

Related equipment & policies Related equipment and purchase terms

Buying on a PO or net terms? Send a purchase order Request a formal quote 1-888-792-9315

Ordering questions

How can I confirm fit before ordering?

Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.

Where is shipping confirmed?

Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.

Product details

Product description & specifications

Form AME-SO-2000-4TSL · Rev. A · PDF

AME TITAN 2000-4TSL 4-Tier Side-Load Mortuary Rack Sign-Off Drawing & Install Sheet

Dimensioned drawing, order quantities, customer sign-off, lift compatibility by tier and installation steps. Scan the QR code to order or email the signed sheet back.

Download PDF

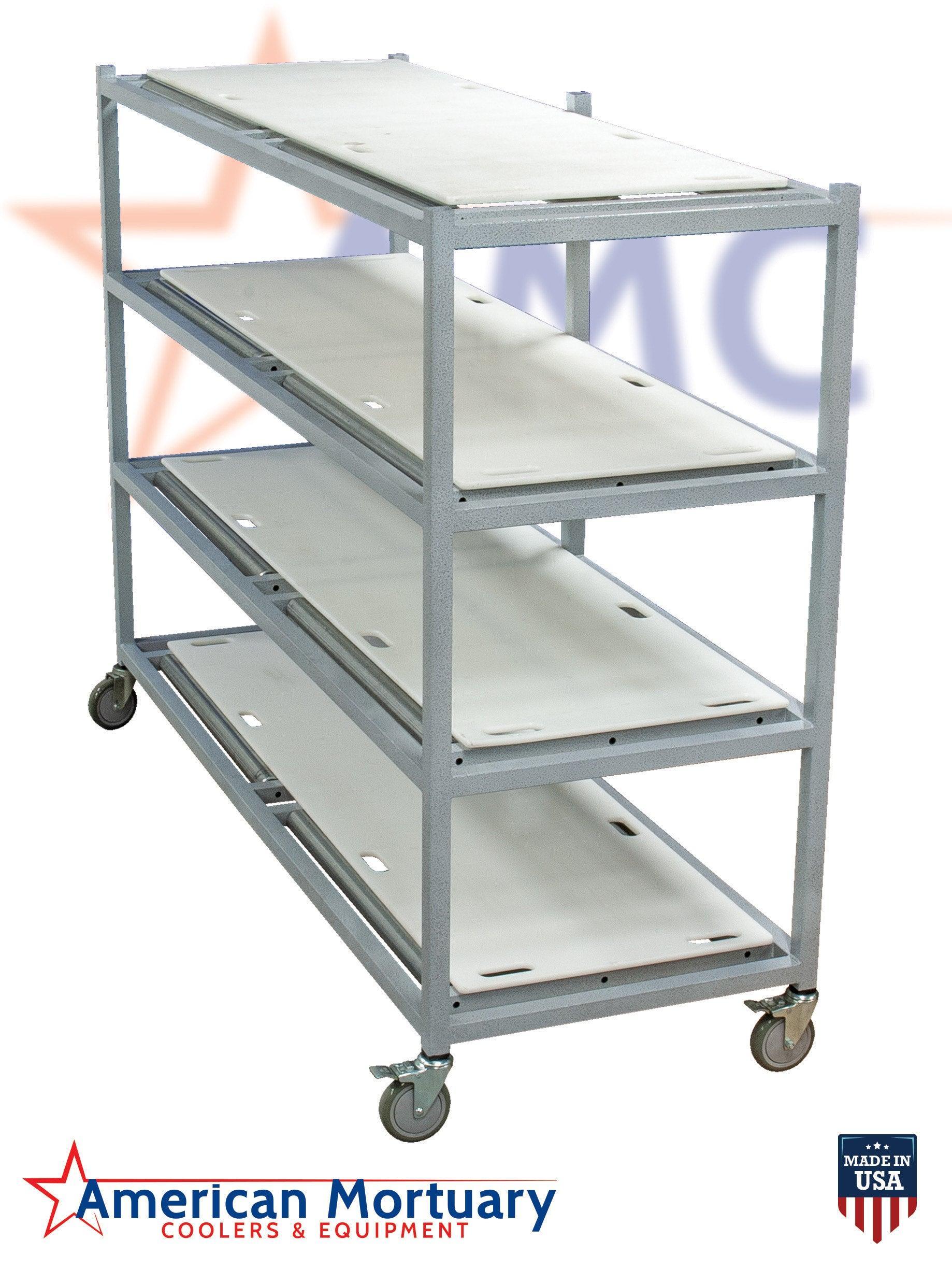

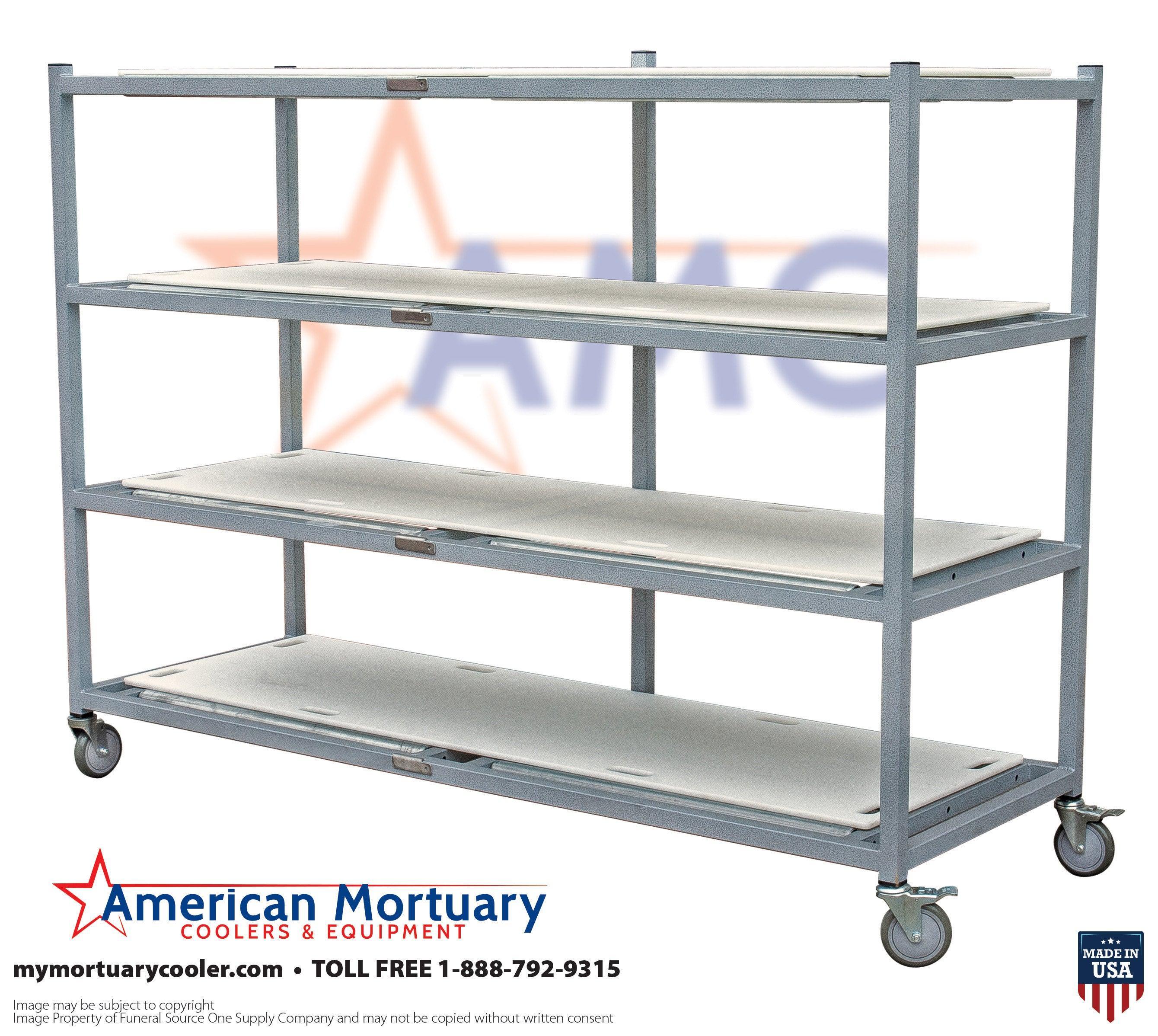

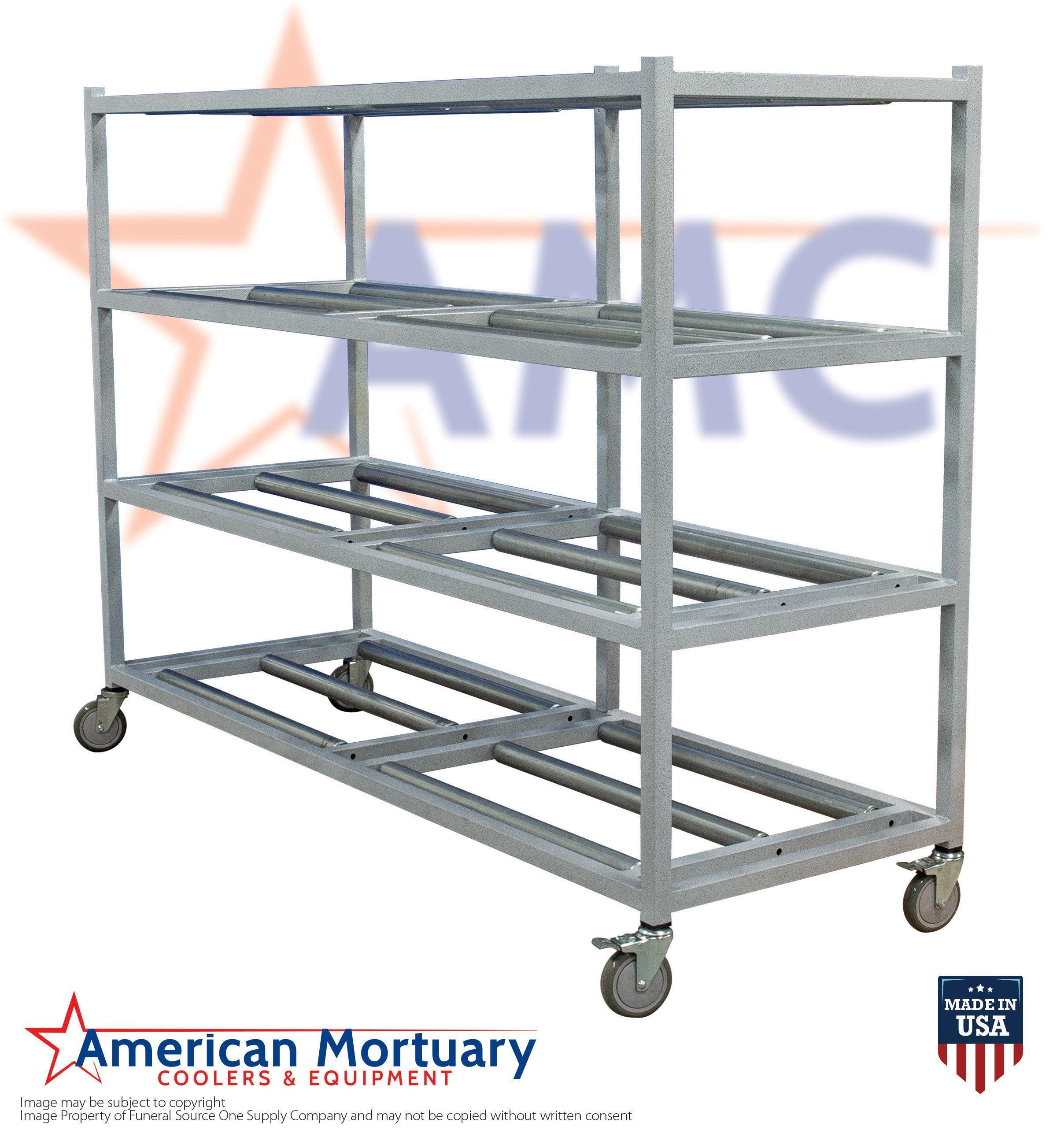

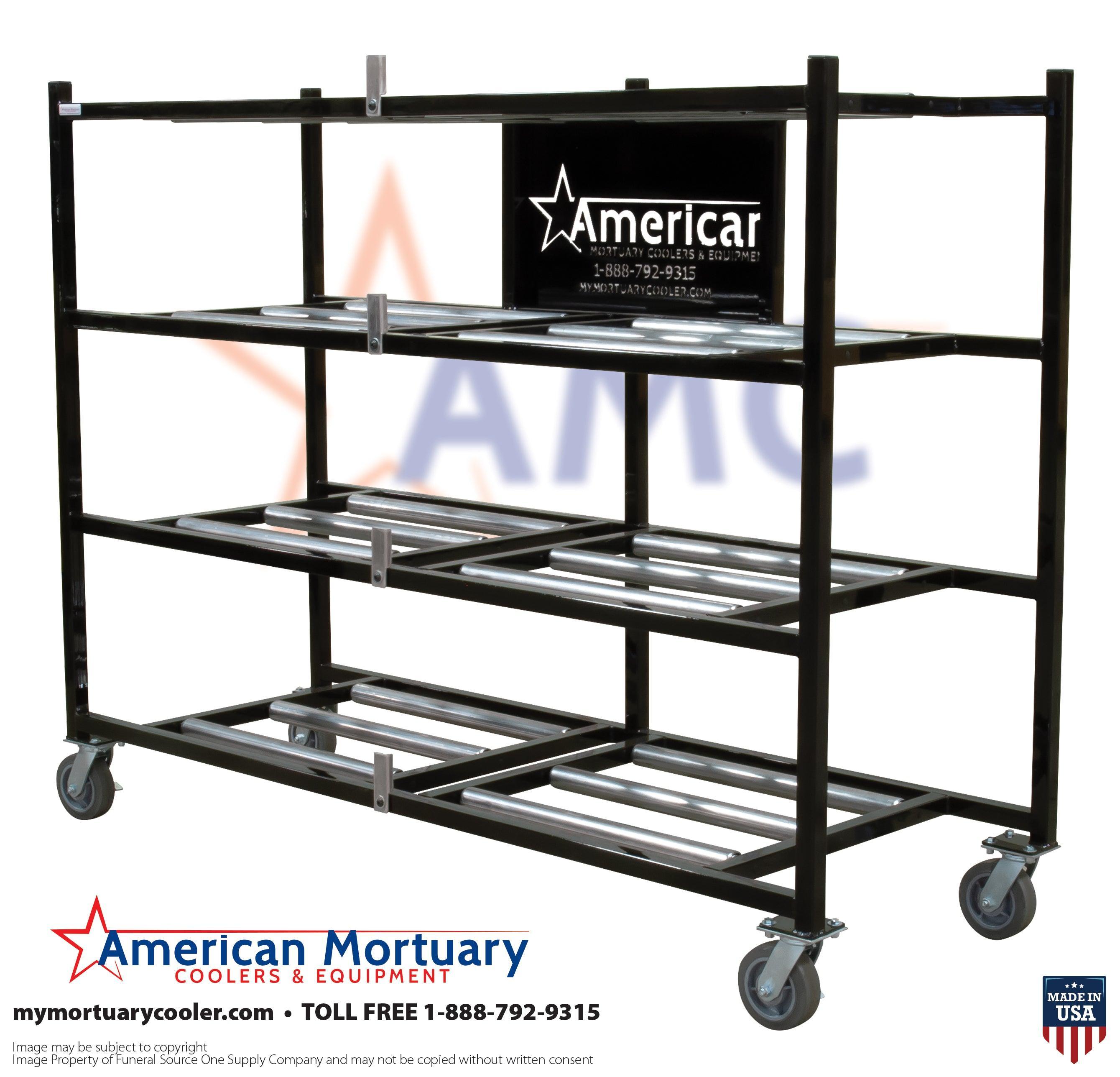

The 4-Tier Side-Loading Mortuary Rack, Model 2000-4TSL, stores four bodies on tiers that load from the 85" long side. Lengthwise rollers in two panels, split by a center divider, let trays roll sideways onto each tier. It suits coolers where racks sit parallel to the aisle.

Dimensions

Overall length: 88 3/16" with corner bumpers (85" frame outside, 82" inside)
Width: 31" outside, 28" inside
Overall height: 65 3/16" from the floor
Tier heights, floor to top of tier: 9 3/16", 27 3/16", 45 3/16", 63 3/16"
Tier spacing: 18" tier to tier, 16 1/2" clear opening
Four 6" swivel casters
Frame: 1 1/2" square tube posts, welded steel, powder-coated

Low-profile build. Every AME 4-tier rack places tier 1 at the very bottom of the frame (9 3/16" from the floor). We do not build a raised first tier on the 4-tier models.

Loading height notice

Tier 1 sits below the lowest deck height of every AME lift. The TITAN 1030-LPL low-profile lift (13" minimum) is the AME lift intended for low-tier work with this rack. Manual lifts with a 20 1/2" minimum, including the H1000-M, cannot reach tier 1. Measure and confirm transfer heights before ordering. American Mortuary Equipment is not responsible for lift selection or ordering errors. See the Returns & Cancellations Policy (RC-1.0) and Terms of Purchase (TC-1.7).

Before you order

Cooler interior height clears the 65 3/16" posts plus the evaporator, lights and door header.
Floor space for 88 3/16" x 31" per rack, plus wall and evaporator clearance.
Leave a clear aisle along the loading side wide enough for the lift and tray to line up square with the rack.
Trays and boards are sold separately. TITAN 23" and 27" stainless trays fit the 28" inside width.

Ships unassembled for two-person, stack-together setup. Warranty coverage is listed in the Warranty Policy (WR-1.0).

Custom sizes, signed sheets and purchase orders: 1-888-792-9315 · po@mymortuarycooler.com

Specifications & product identity

Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.

Key specifications
Product type	Multi-tier mortuary rack
Tier count	4 tiers
Loading configuration	Side-loading
Frame	85 x 31 in
Frame	Welded steel, powder-coated
Casters	Four 6 in swivel
Material	Welded Steel

Product identity
Brand / vendor	American Mortuary Coolers & Equipment
Equipment type	Mortuary Rack
SKU	Model 2000-4TSL

Dimensions & fit

Dimensions
Overall height	65 3/16 in

FAQs & buying help

How can I ask a question about this product?

Contact our team with the product name and the specification or option you want to confirm.

What should I include when requesting a quote?

Include the product, quantity, required configuration and delivery location in your quote request.

Where can I review shipping and purchase policies?

Open Shipping & support for the published freight, returns and custom-order policy links.

Resources & documents

Product-specific documents and planning links remain in Product details when a separate resources section is not available.

Plan delivery. Review the details.

Review the published policies and confirm product-specific requirements before placing your order.

Delivery planningFreight & shipping guide Purchase policiesReturns & cancellations Configured equipmentCustom built-to-order policy Product questionsContact buyer support
