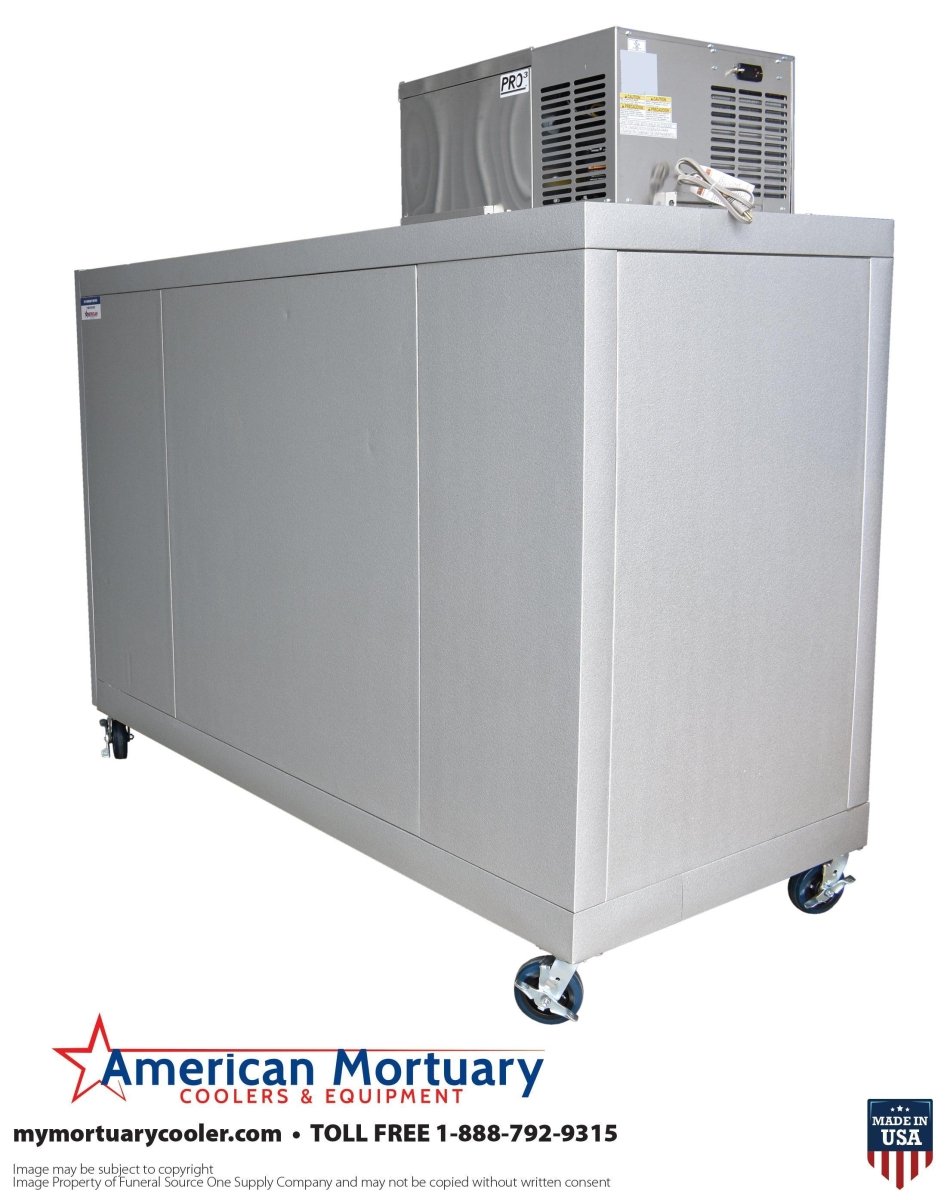

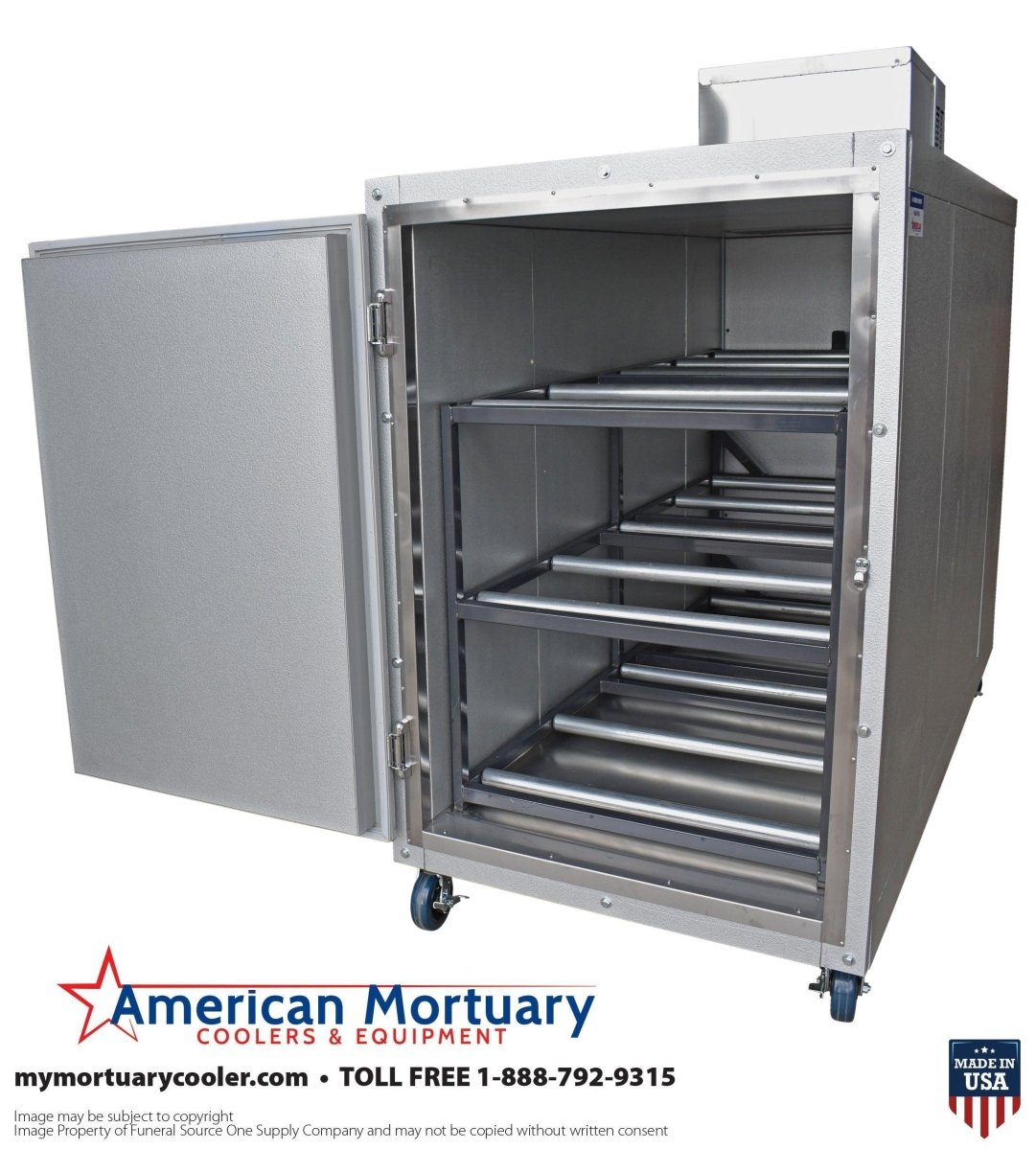

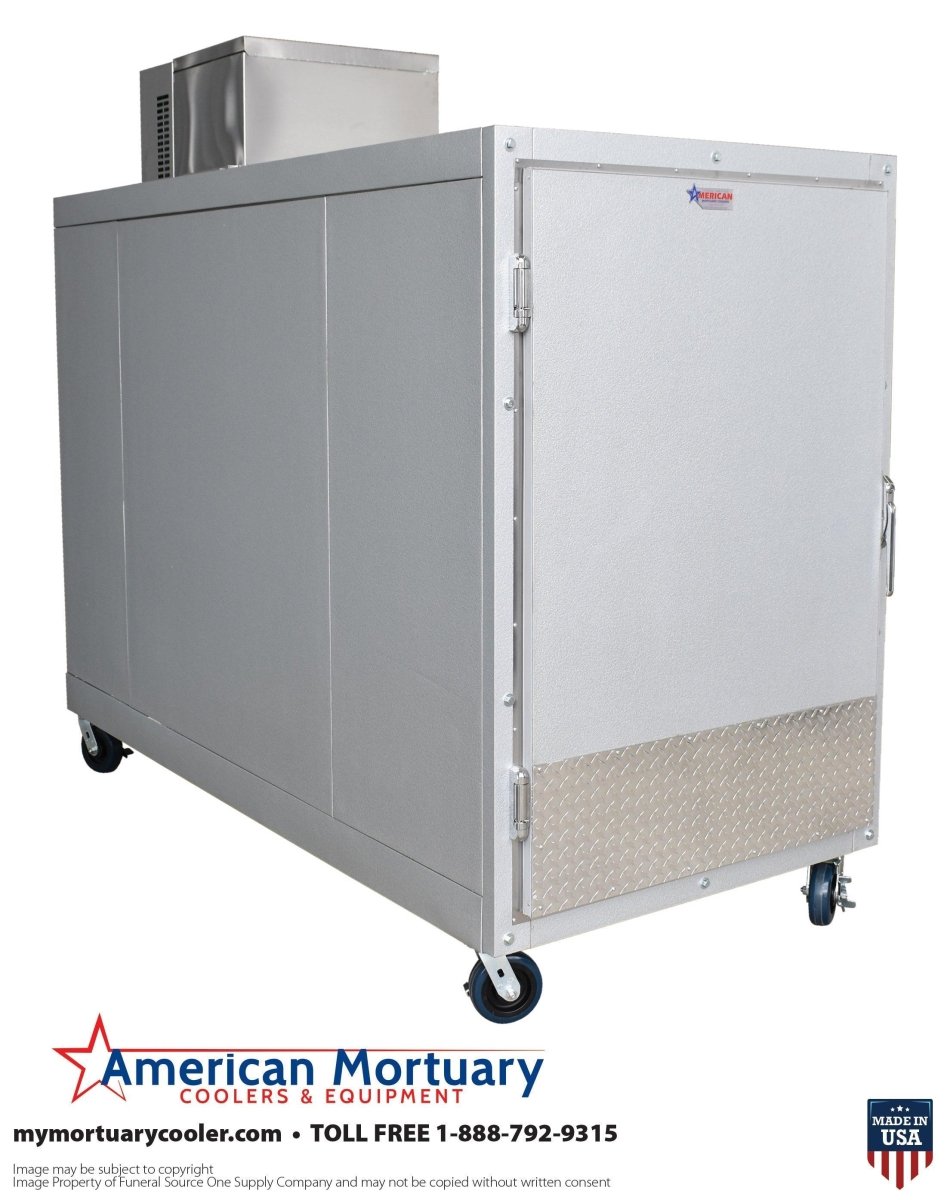

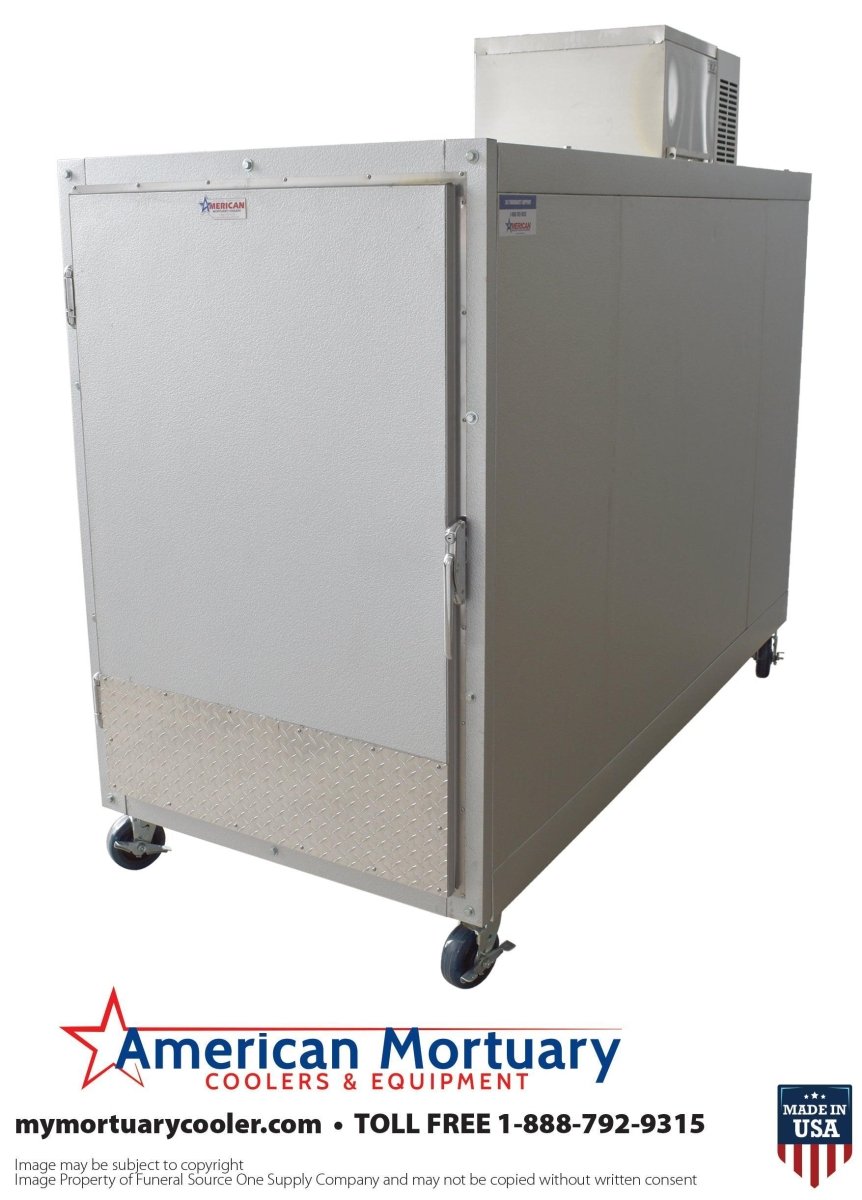

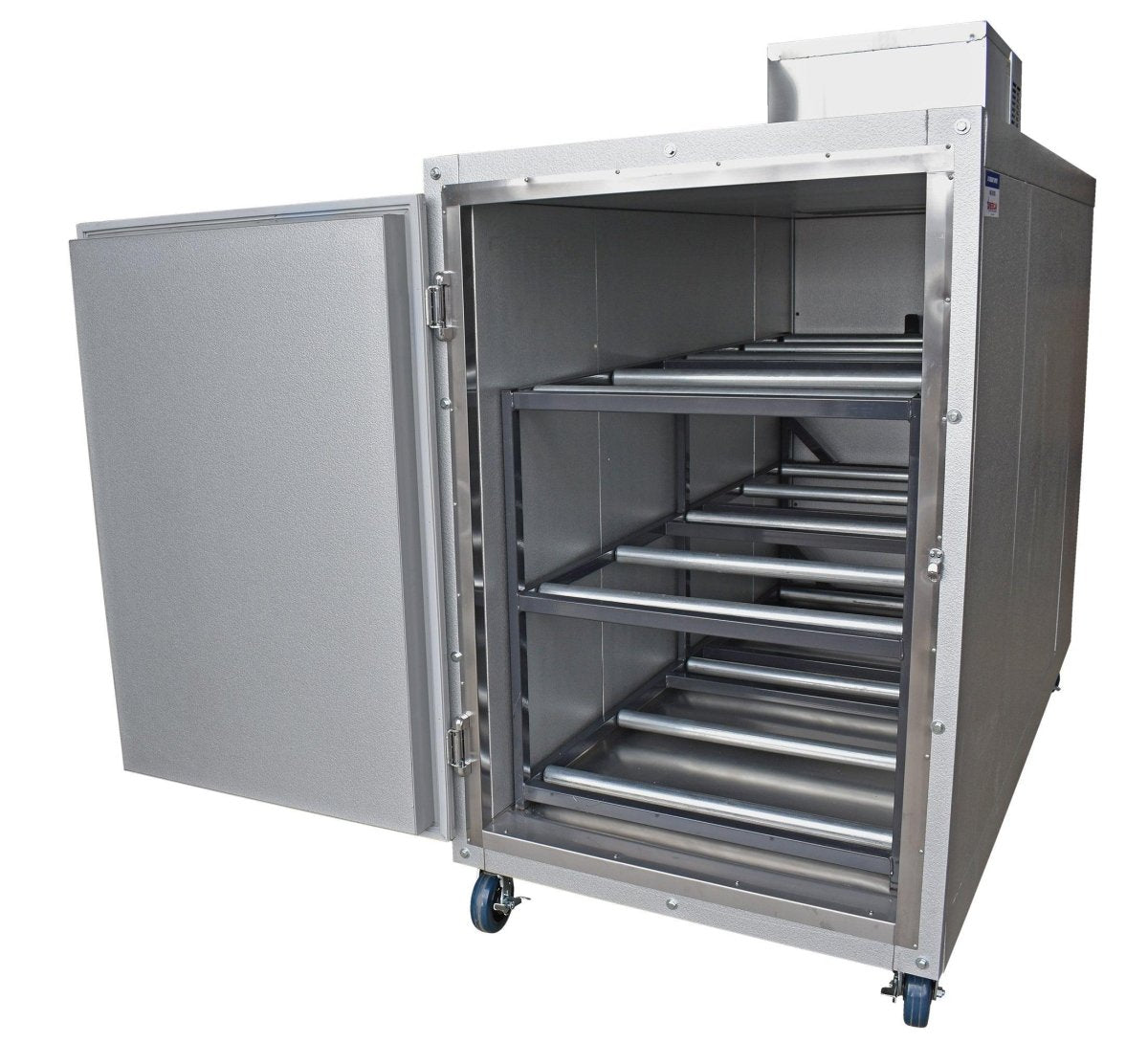

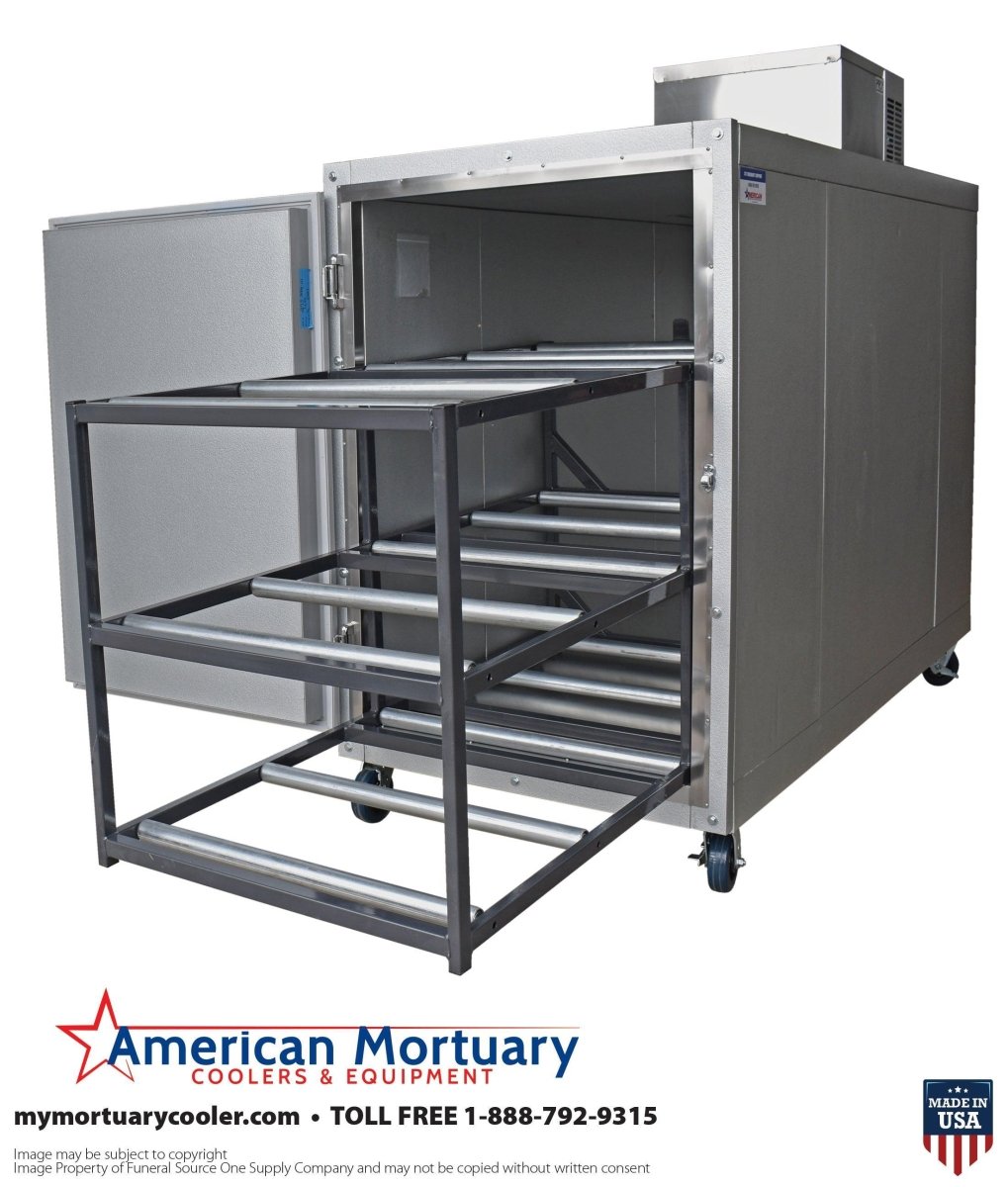

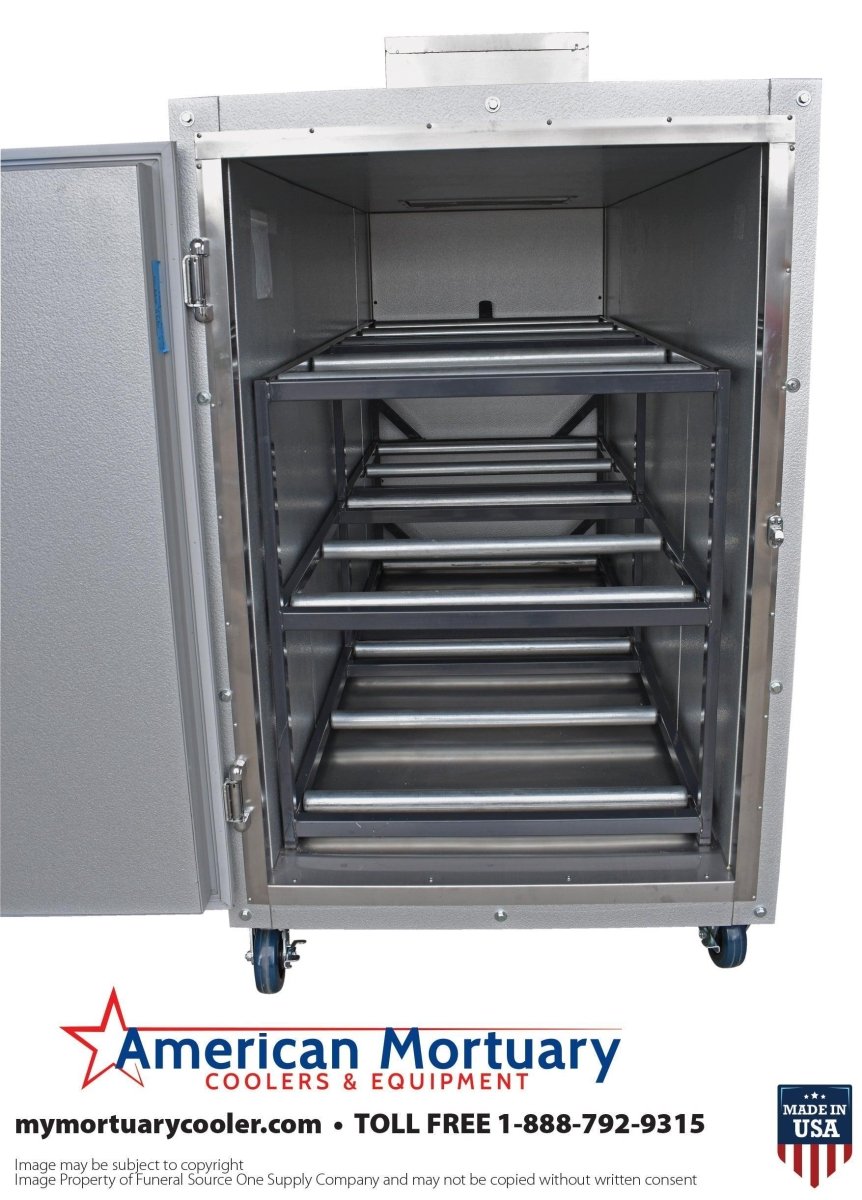

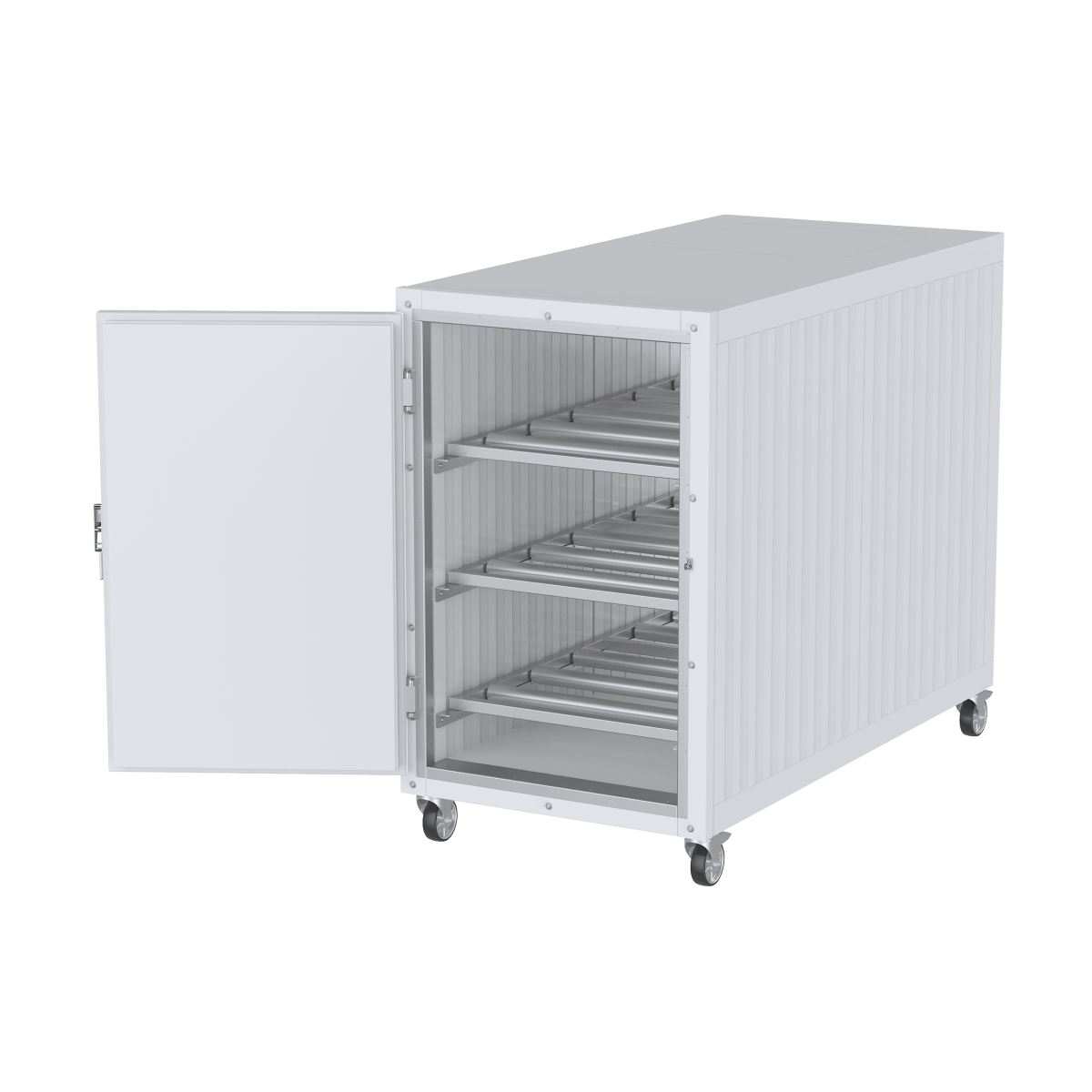

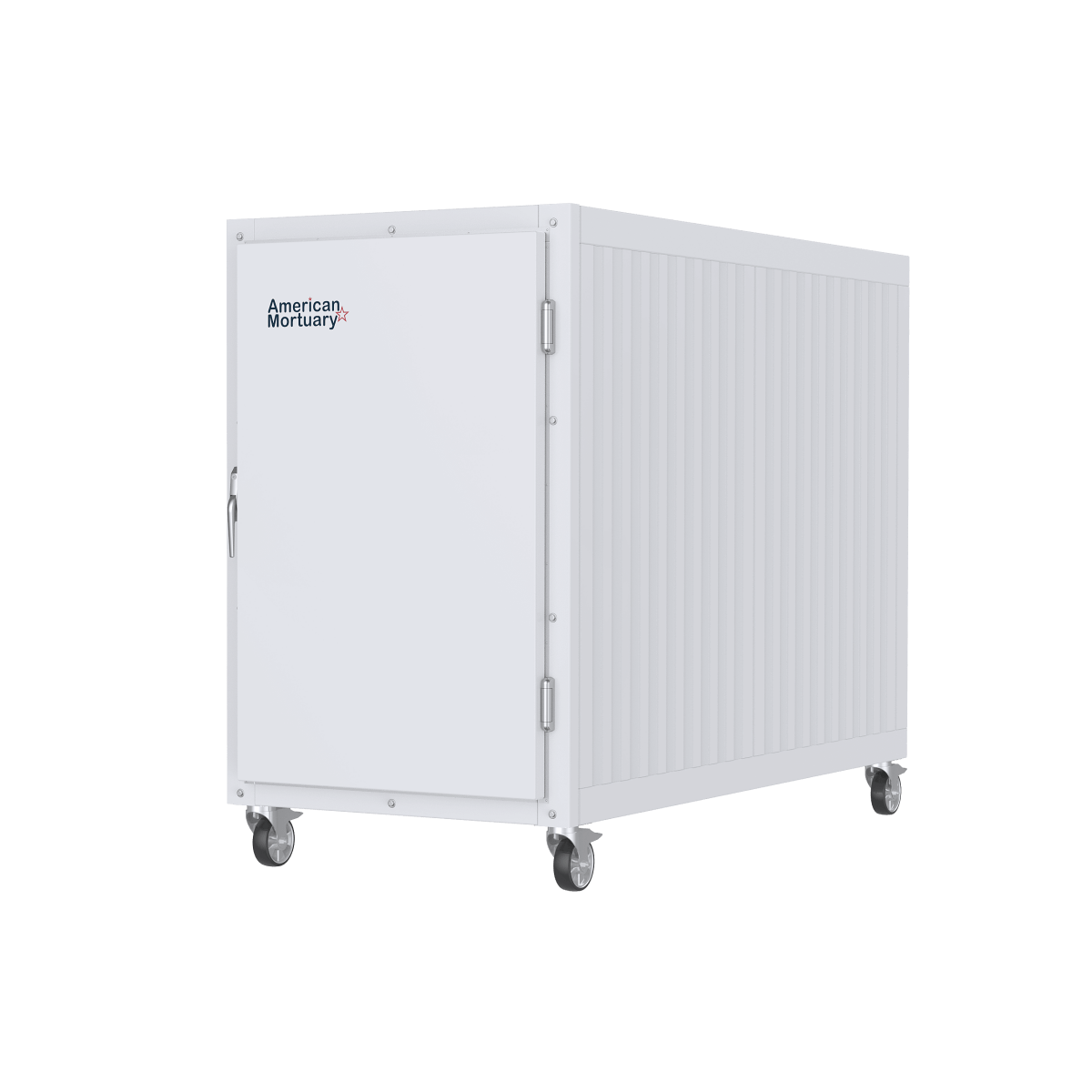

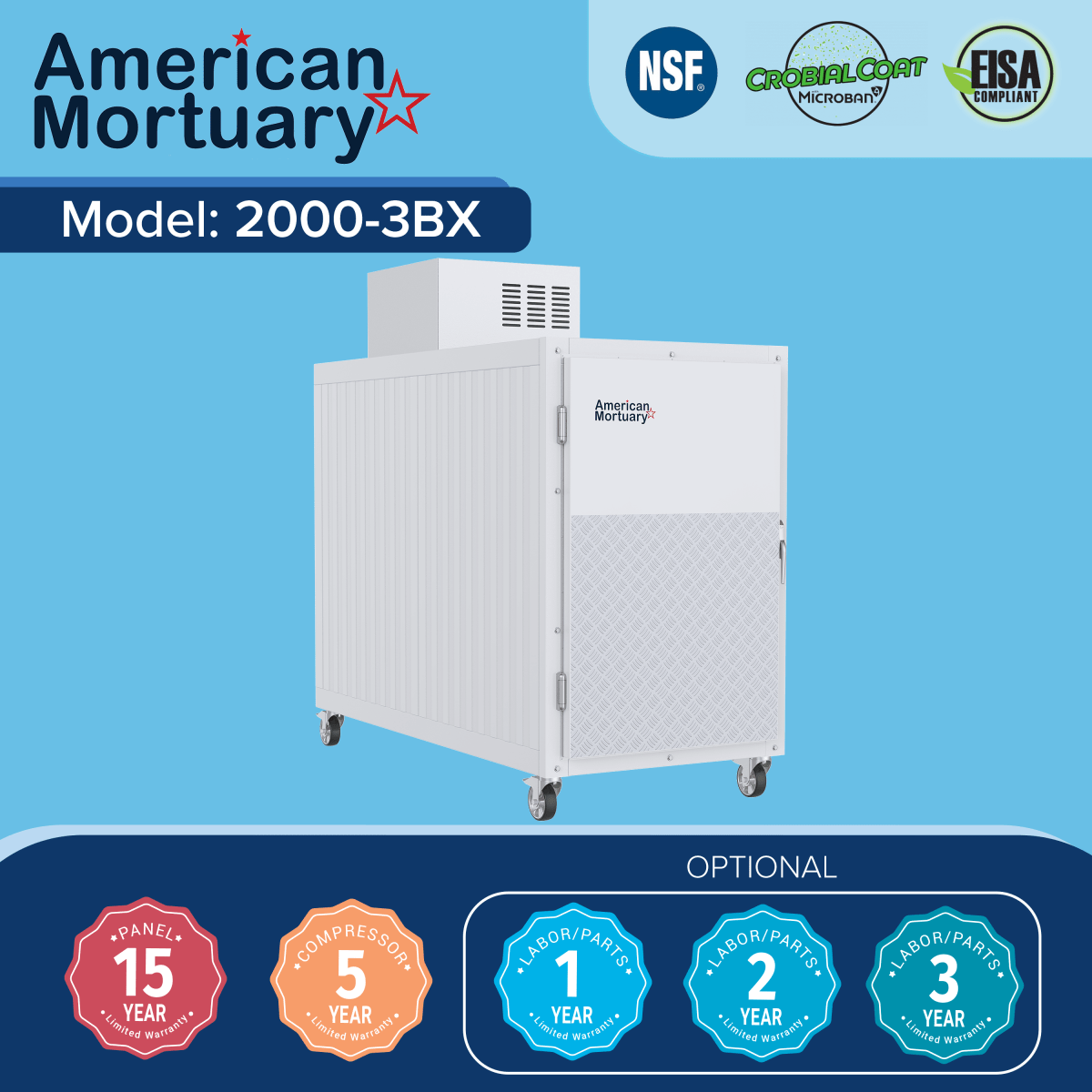

Model 3BX Upright Mortuary Cooler

Product Overview

The Model 3BX Upright Mortuary Cooler is a compact, American-made solution designed for funeral homes, hospitals, universities, and medical examiners requiring secure cadaver storage for up to three bodies.

Built with industrial-grade insulated panels and a factory-mounted compressor system, this cooler combines reliability with compliance to the 2025 Energy Act standards.

With OSHA approval and temperatures that meet or exceed funeral board requirements in all 50 states, the 3BX delivers proven performance. Backed by BBB A+ accreditation and the fastest lead times in the industry, it’s the trusted standard for compact mortuary refrigeration.

---

⚙️ Key Features

• ✅ Capacity: Upright storage for 3 cadavers

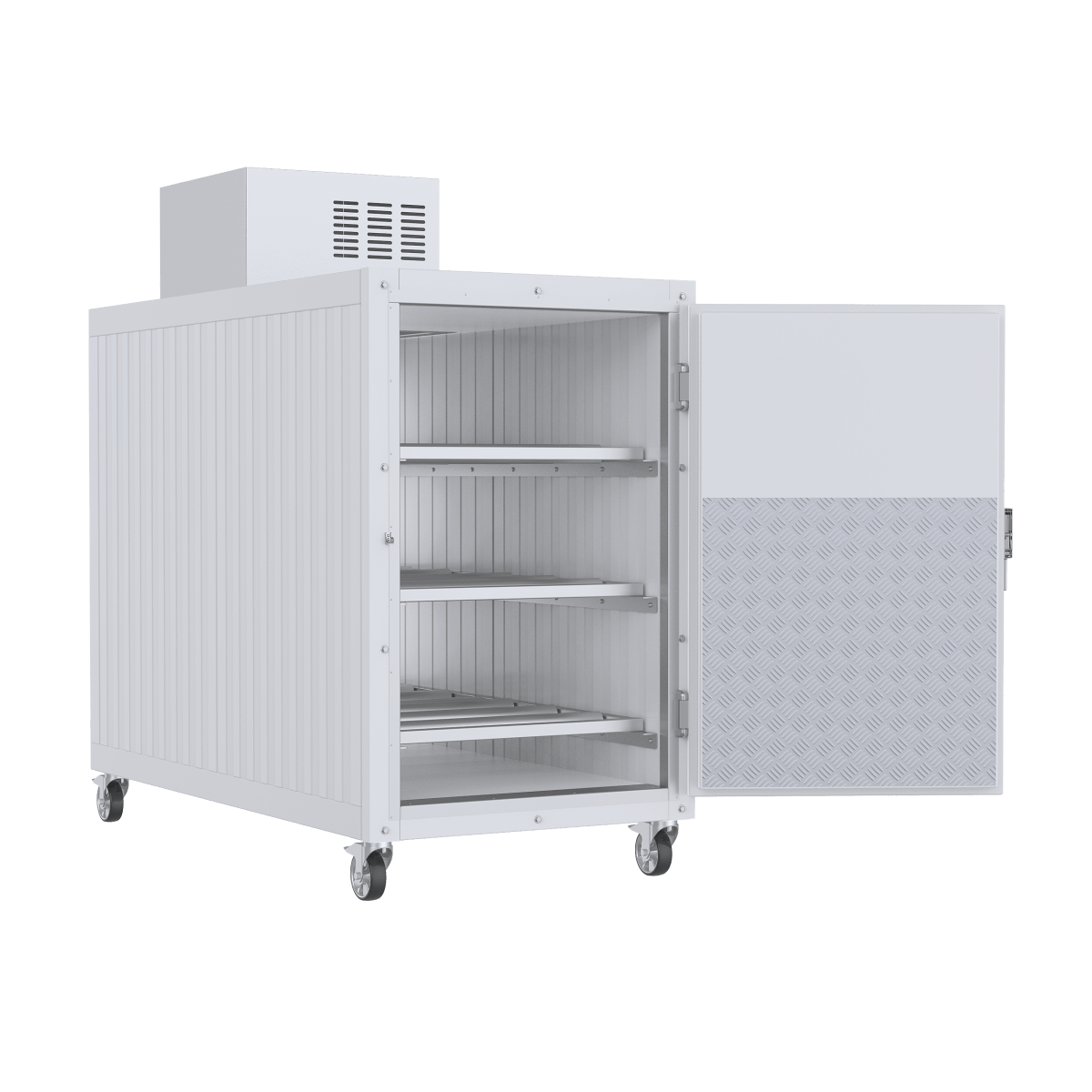

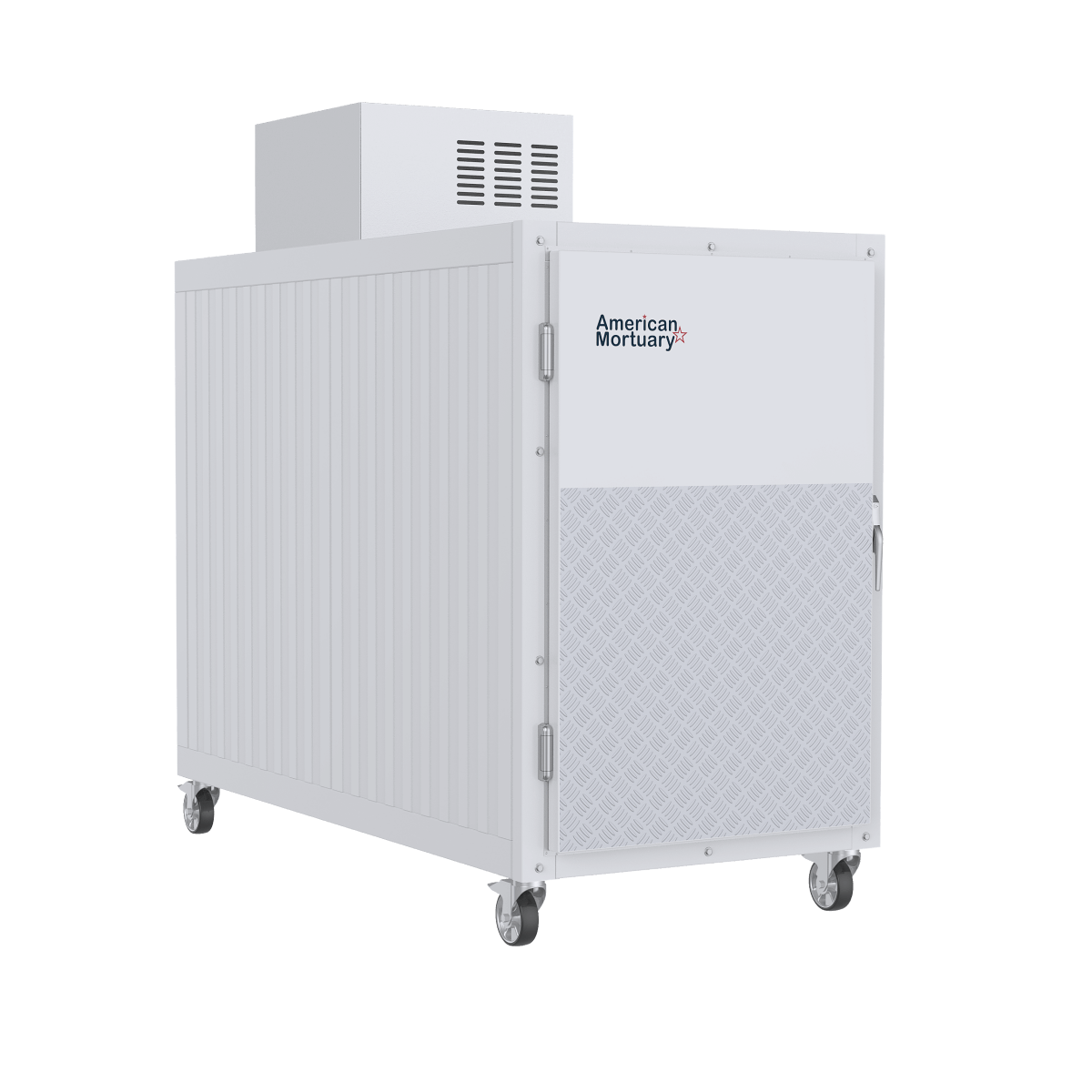

• ✅ Self-Contained Refrigeration: Factory-mounted, top-mounted compressor system

• ✅ Drainage Required: Copper stub provided; customer must connect hose or drain line (per 2025 Energy Act)

• ✅ Standard 110V Plug-In: Operates on a standard outlet, no special wiring needed

• ✅ USA-Made Construction: Durable insulated panels with stainless steel interior

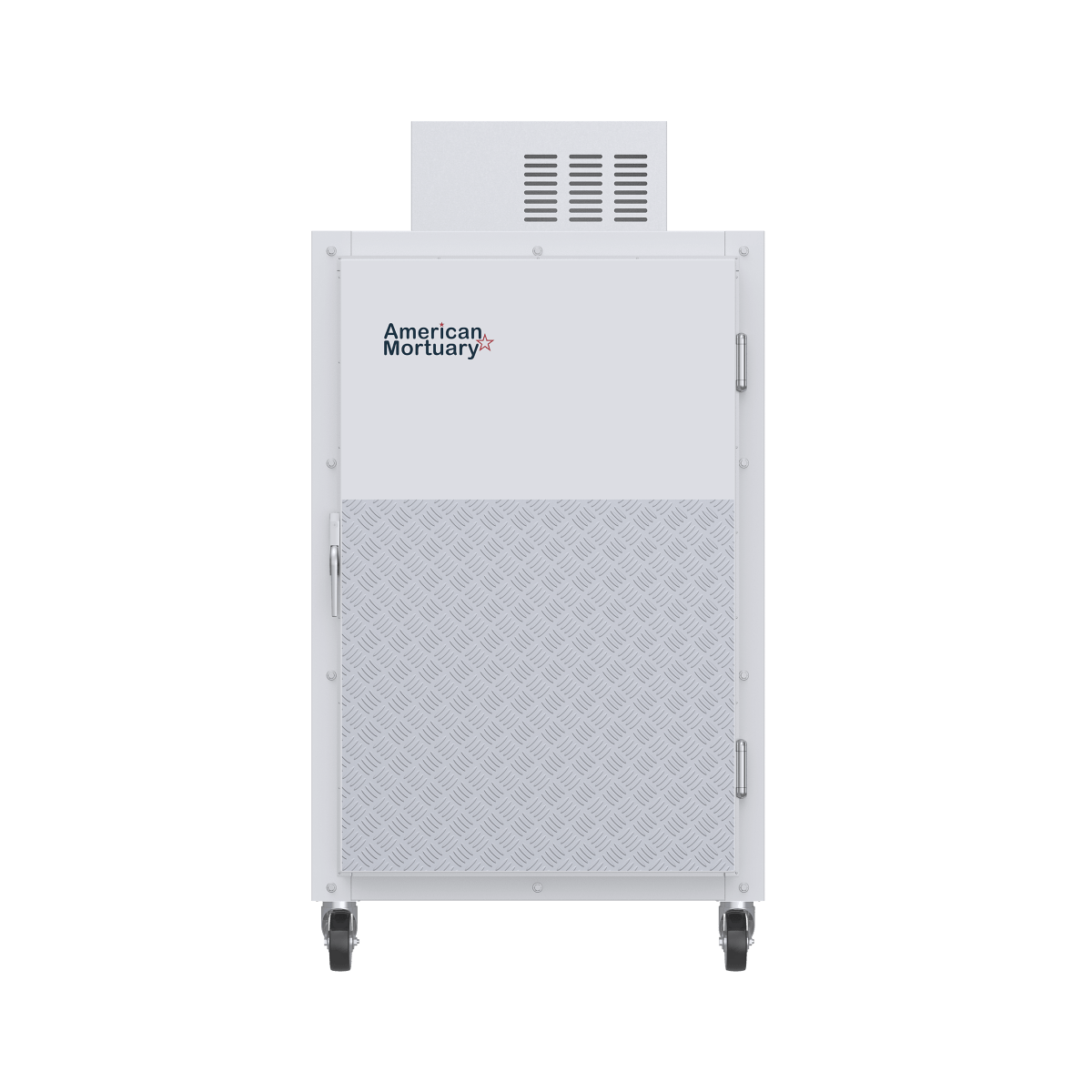

• ✅ Standard Door Package Included: 36" door plate, stainless steel hinges, door closer, and locking handle

• ✅ No Hidden Upcharges: Key protective features come standard with every Authority cooler

• ✅ OSHA & EPA Approved: Compliant with national health and safety standards

• ✅ 50-State Temperature Compliance: Meets funeral home authority board requirements nationwide

• ✅ Optional Accessories: Casters, interior lighting, stainless steel trays (23"), XL body boards, compressor upgrades, assembly services

• ✅ Fastest Lead Times in the Industry: Built and shipped direct from Tennessee

---

🏆 Warranty Coverage

• 15-Year Warranty on insulated panels and doors

• 2-Year Warranty on refrigeration components

• 2-Year Warranty on parts and labor

• Backed by American Mortuary Coolers, BBB A+ Accredited since 2015

---

📐 Technical Specifications

Model / SKU: 3BMC-XW

Exterior Dimensions (Cabinet Only):

• 94.00" D x 44.00" W x 77.00" H

Compressor Assembly (Factory-Mounted):

• Adds height clearance requirement

• ⚠️ Maximum clearance required: 6’5” (cabinet) + 36” (compressor) = 9’5” total

Interior Dimensions:

• 86.00" D x 36.00" W x 60.00" H

Door Clearance:

• 36.00" interior width

Compressor Specs:

• Factory-mounted, top-mounted (approx. 150 lbs)

• Refrigerant: R-404A standard

Electrical:

• 110V outlet (~9A draw)

Weight:

• Cooler Box: ~650 lbs

• Compressor: ~150 lbs

• Net Weight: ~800 lbs

• Gross Shipping Weight: ~950 lbs

Capacity:

• Upright storage for 3 cadavers

⚠️ Customer Responsibility:
This unit ships with the compressor already mounted. Ensure your facility allows for 9’5” of vertical clearance for installation.

---

📌 Important Information — 2025 Energy Act

Drainage Requirement

• All self-contained compressors now require drainage

• Copper outlet stub included

• Customer must connect drain hose or drainage system

• Failure to connect drainage will void warranty immediately

Compressor Rating

• Standard compressor rated up to 80°F THI (Temperature + Humidity Index)

• THI combines temperature + humidity. A 65°F room may still exceed 80°F THI.

• If THI exceeds rating, a compressor upgrade is required (not included in base price)

• Upgrades start at $1,295+ depending on environment

Placement Guidelines

• ❌ Do not install near crematories (heat damages compressors)

• ✅ Install in a climate-controlled, insulated room (not vent-fan cooled)

• ⚠️ Ignoring these requirements causes compressor ERR/ERROR codes and shutdown

---

➕ Optional Add-Ons (Not Included in Base Price)

• 🔧 Casters — For mobility and repositioning

• 🛠️ Assembly Services — Factory or on-site assembly available

• ❄️ Compressor Upgrades — For environments above THI 80°F or non-conditioned rooms

• 💧 Drainage Connection — Must be installed for warranty compliance

• 🛏️ XL Body Boards — Oversized cadaver handling

• 🥼 Stainless Steel Trays (23") — Heavy-duty, corrosion-resistant trays

• 💡 Interior Lighting — Improves visibility inside the cooler

• 🚚 Turnkey White Glove Delivery & Installation — Email cool@mymortuarycooler.com for pricing.
  This service is an additional cost, performed by our factory-trained installation team, priced on a case-by-case basis.

👉 Need help selecting options?
📞 1-888-792-9315
📧 cool@mymortuarycooler.com

---

💲 Year-End Special Financing

Take advantage of our Year-End Special Financing program.

👉 Click here for financing options

How It Works

1. Complete a short financing application.

2. Rates, terms, and eligibility are determined after review.

3. Our team will contact you quickly after submission with your available options.

⚠️ Financing requires application submission before approval.

---

🌎 Applications

• Funeral Homes: Compact 3-body storage for small to medium facilities

• Hospitals & Morgues: Reliable cadaver storage in limited space

• Universities & Forensic Programs: Perfect for cadaver study and anatomy labs

---

🔗 Related Models

• Need more capacity? ➡️ Model 4BX Upright Mortuary Cooler

• Prefer roll-in? ➡️ Model 2BRX Roll-In Mortuary Cooler

• Need transport? ➡️ Model TR3 Transport Mortuary Cooler

---

📞 Order Today

Choose the Model 3BX Upright Mortuary Cooler — OSHA & EPA approved, fully compliant in all 50 states, hand-built in Tennessee, and delivered with the fastest lead times in the industry.

📞 1-888-792-9315
📧 cool@mymortuarycooler.com
➡️ Shop Upright Mortuary Coolers

---

⚠️ Important Notice:
As of 1/1/2025, drainage is mandatory on all self-contained compressors. The Model 3BX requires 9’5” of vertical clearance for installation. Failure to provide clearance, connect drainage, or select the correct compressor upgrade will void warranty coverage immediately.

❓ Frequently Asked Questions — Model 3BX Upright Mortuary Cooler

1. How many cadavers can the 3BX store?
   – It provides upright storage for three cadavers.

2. Is the 3BX made in the USA?
   – Yes, hand-built in Johnson City, Tennessee.

3. Does it require drainage?
   – Yes, per the 2025 Energy Act, all compressors require drainage.

4. What is the maximum clearance required?
   – 9’5” total height (cabinet + compressor).

5. What are the exterior dimensions?
   – 94.00" D x 44.00" W x 77.00" H (cabinet).

6. What are the interior dimensions?
   – 86.00" D x 36.00" W x 60.00" H.

7. What kind of door hardware is included?
   – Standard 36" door plate, stainless hinges, door closer, and locking handle.

8. What is the panel thickness?
   – 4" insulated wall construction.

9. Does the 3BX meet funeral board temperature requirements?
   – Yes, approved in all 50 states.

10. Is the unit OSHA and EPA approved?
    – Yes, fully compliant.

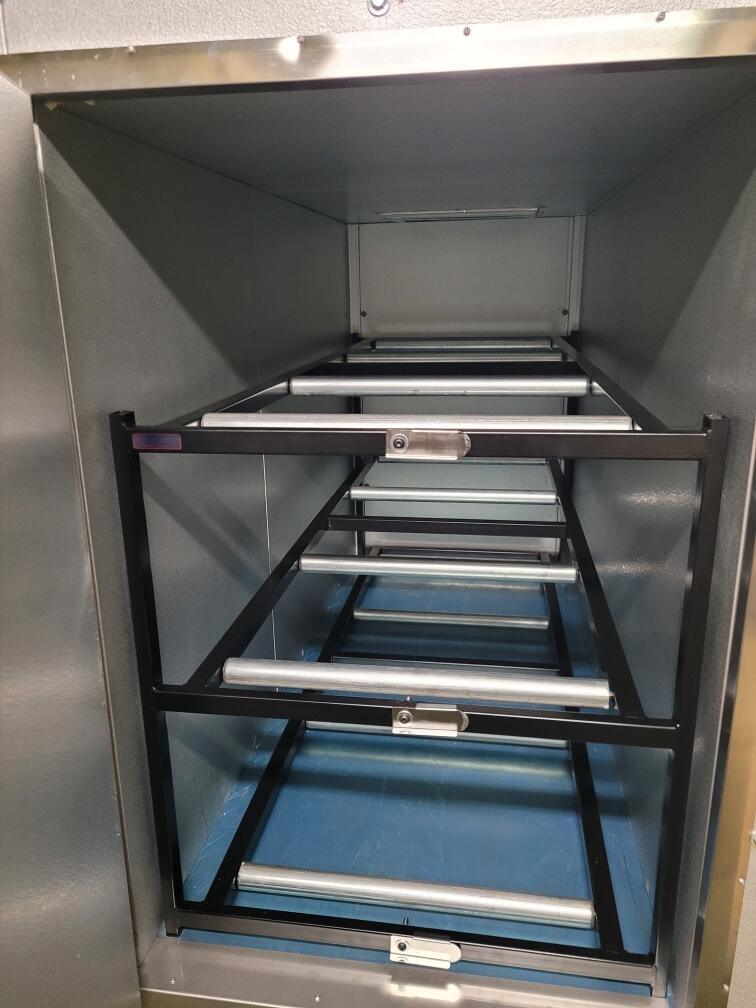

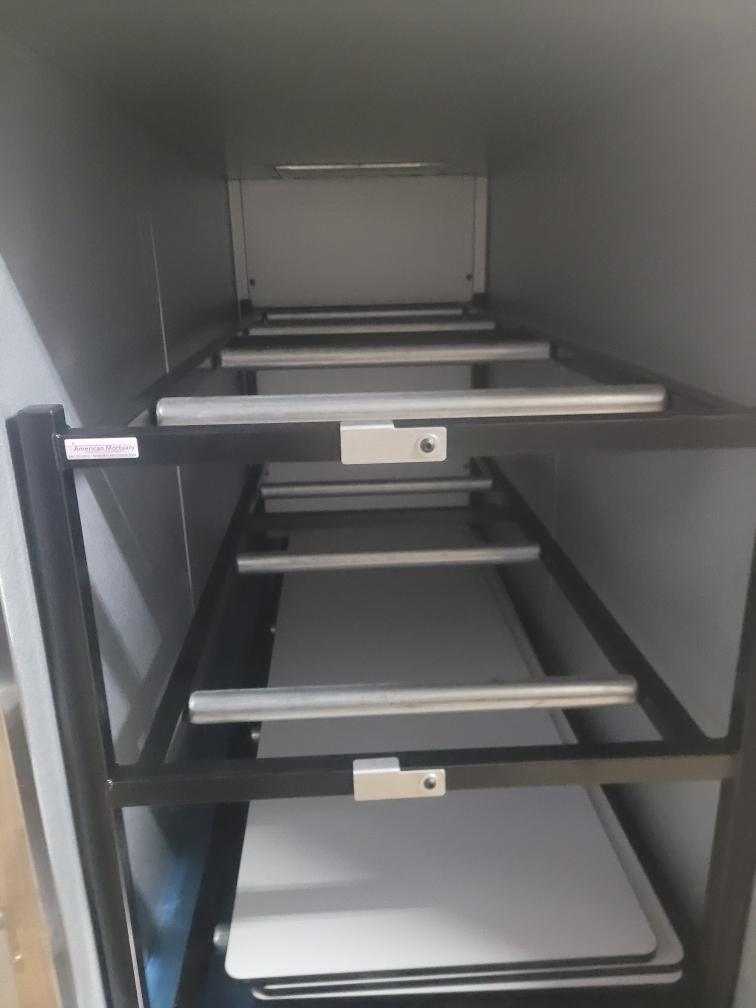

11. Does the 3BX use racks or trays?
    – Yes, designed for upright cadaver racks (unlike the TR3 roll-in).

12. What kind of power does it need?
    – Standard 110V outlet (~9A draw).

13. What refrigerant is used?
    – R-404A.

14. What is the net weight?
    – ~800 lbs (box + compressor).

15. Can it be installed near a crematory?
    – No, heat will damage the compressor.

16. Is the compressor factory-mounted?
    – Yes, it ships pre-mounted on the cabinet.

17. What is the warranty coverage?
    – 15 years on panels/doors, 2 years on parts and labor.

18. Does it include interior lighting?
    – Lighting is optional.

19. How fast can it ship?
    – Among the fastest lead times in the industry.

20. Is financing available?
    – Yes, via our financing program.

21. What happens if I don’t connect drainage?
    – Warranty is void immediately.

22. Can I get installation services?
    – Yes, multiple levels are available, including white-glove.

23. What does OSHA approval mean?
    – It ensures safety and compliance in professional settings.

24. Do I need special wiring?
    – No, standard 110V outlet only.

25. Who do I contact with questions?
    – Call 1-888-792-9315 or email cool@mymortuarycooler.com.

---
