Double Door Mortuary Cooler AMC Model #3x3-S
AMC Model #3x3-S Walk-In Mortuary Cooler - Dual Doors
by American Mortuary Coolers
Each compartment holds up to 3 bodies with 2-3 Tier Storage Racks (not included). Single refrigeration system split for each side. Please see model #3x3-D for individual compartments and double refrigeration system. 1st tier of the rack is 3.5" from the floor, each tier has 12" of height.
(Pictured in upgraded white exterior/interior)
Self Contained System. Save $1,000's on install cost. No Electrician! No Plumber! Easy customer installation instructions included. Includes plug and NEMA 6-15R receptacle.
Install Difficulty Level: 2 (This unit is NOT available pre-assembled)
1-2 Hours installation time.

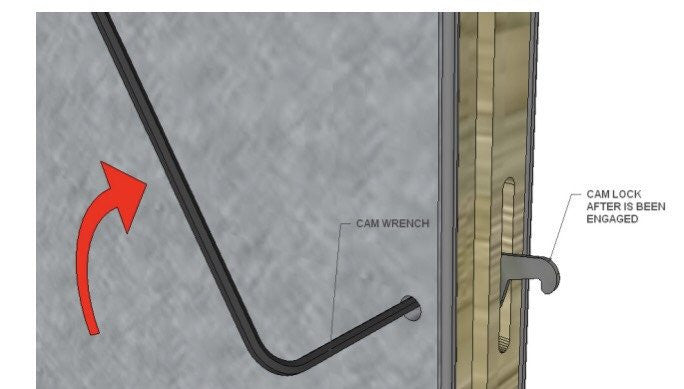

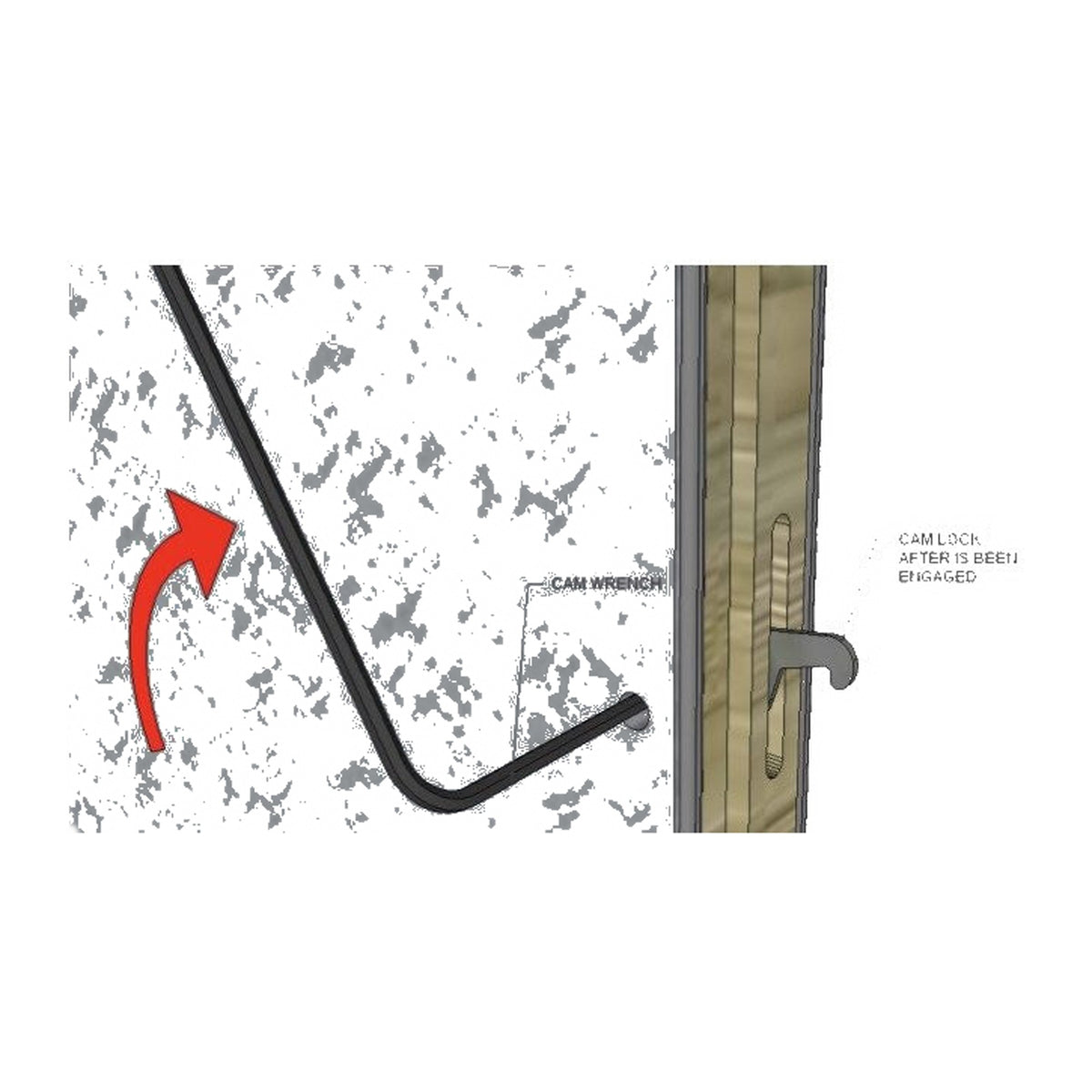

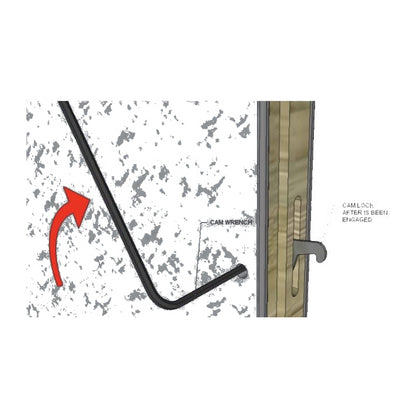

Tools Needed: Cam-Lock wrench, power drill, basic drill bits, socket wrench, 6' level, rubber mallet, and a tape measure.

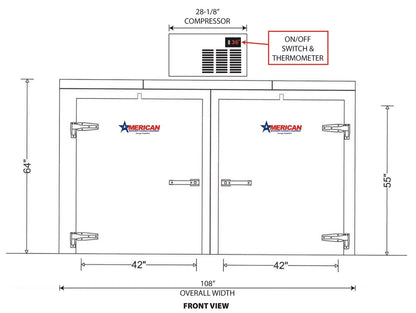

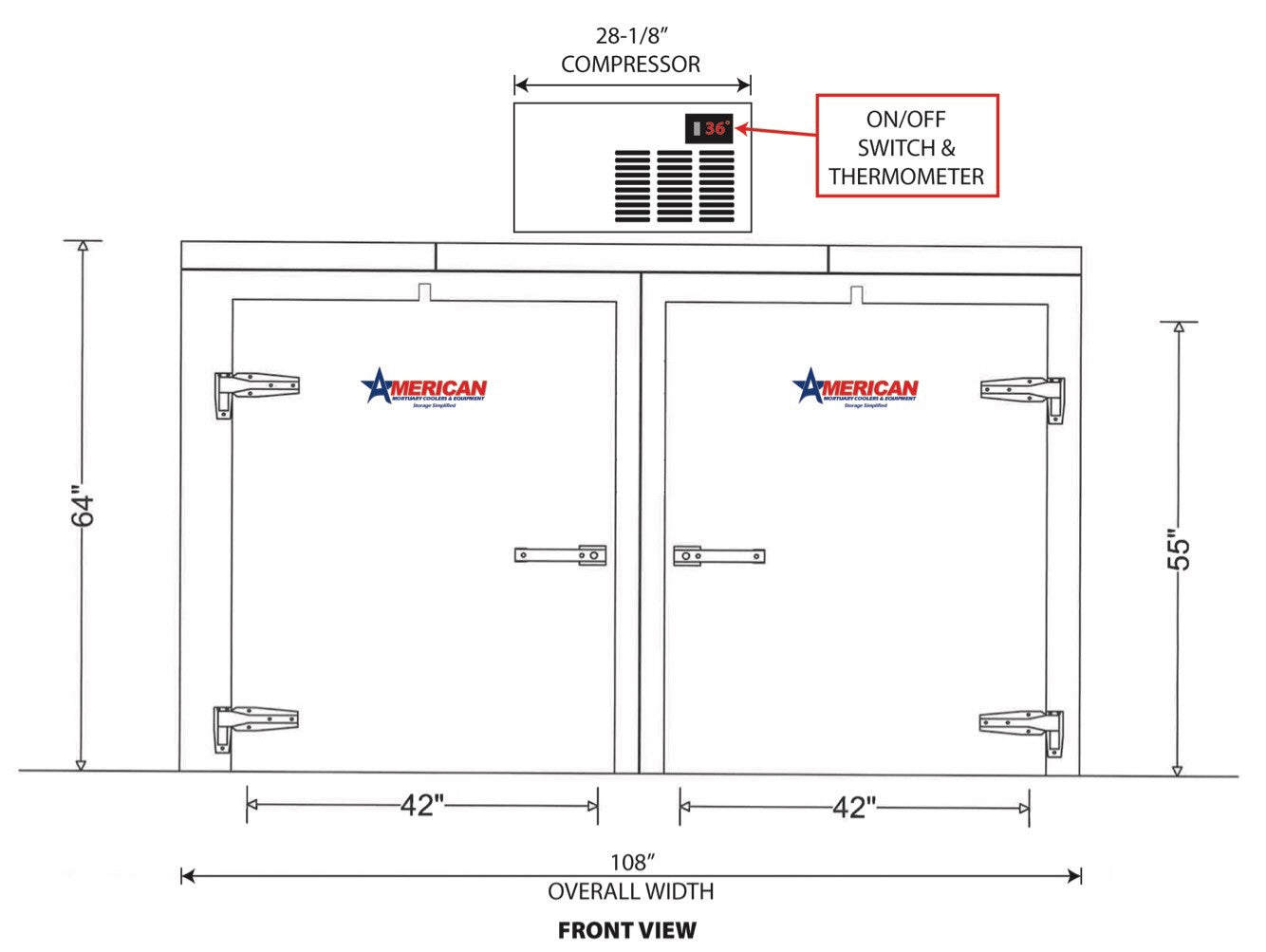

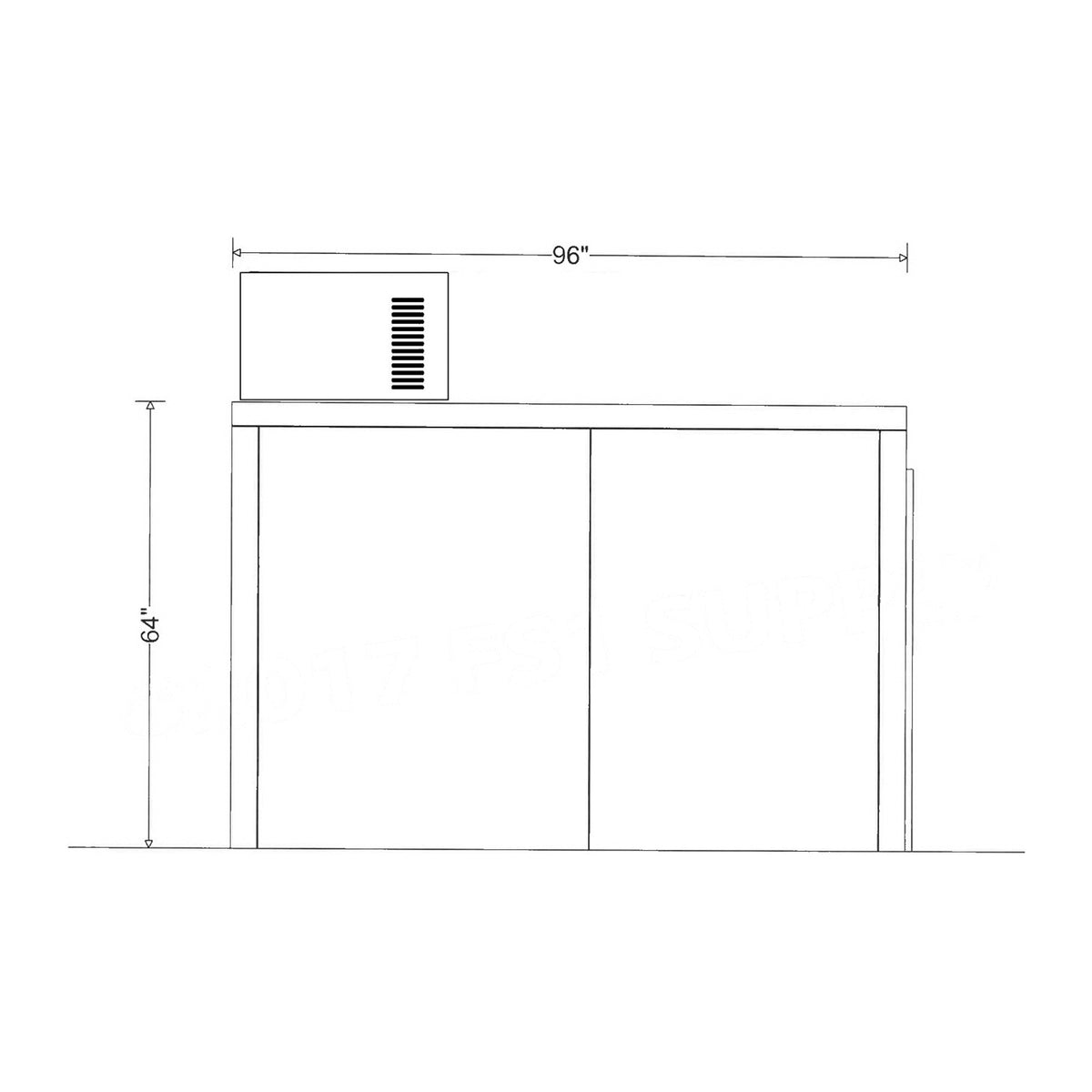

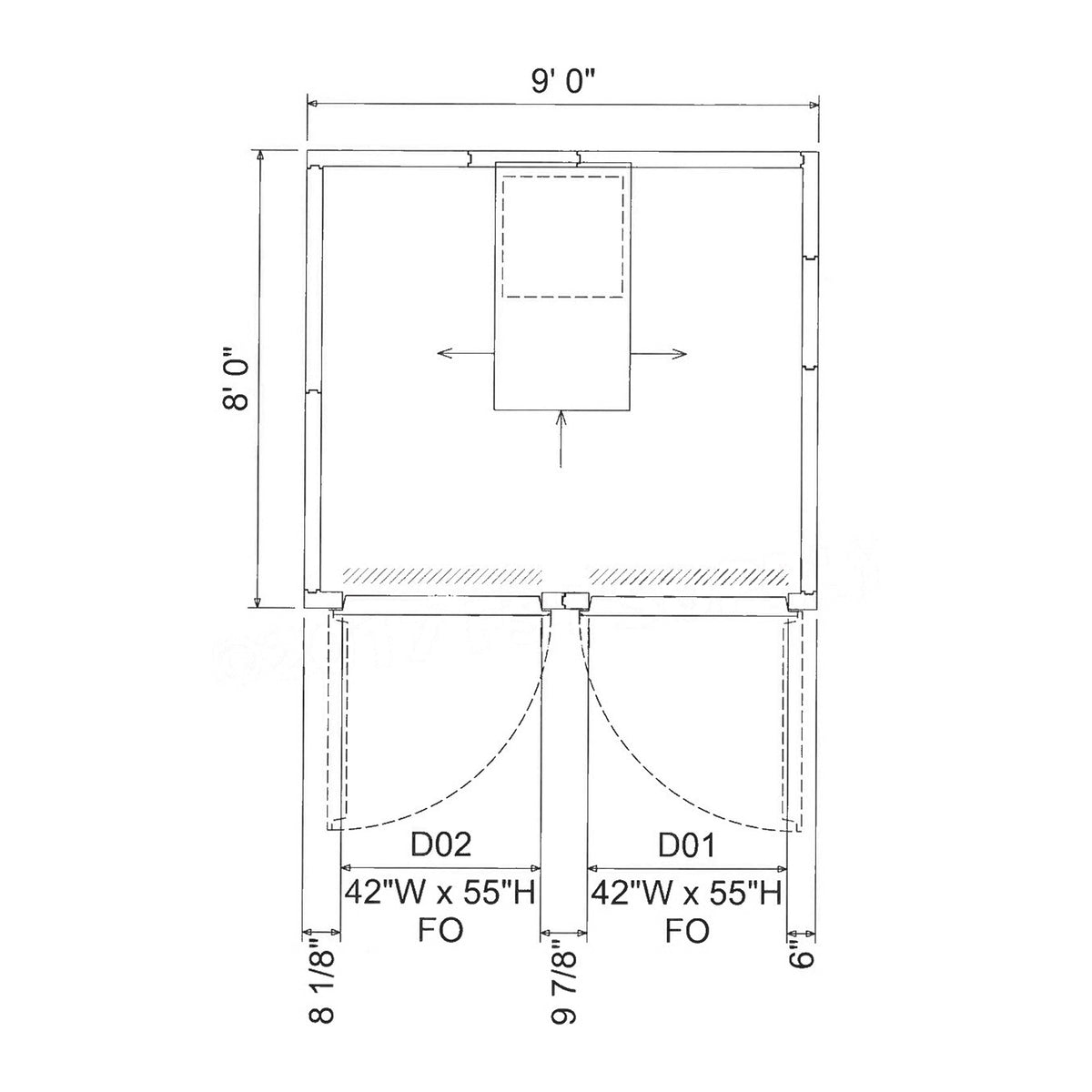

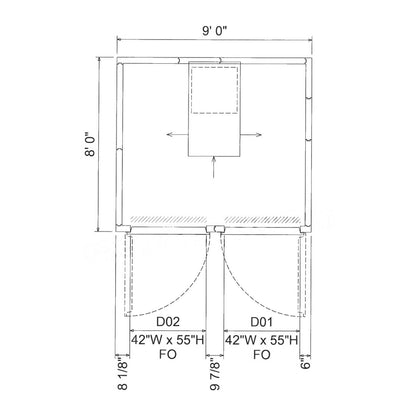

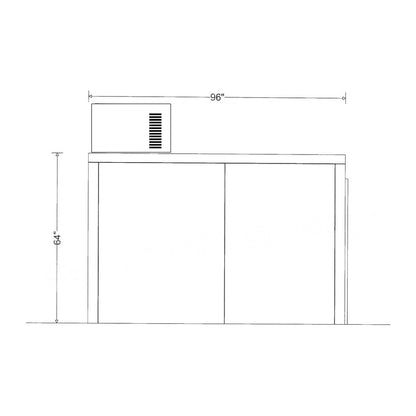

External (O.D.): 9' 0" x 8' 0" x 5' 4" - W x D x H
Internal (I.D.): 8' 5 1/4" x 7' 5 1/4" x 5' 5/8" - W x D x H
Finishes on Walls: Acrylume/Embossed - 26 Ga. - interior & exterior (silver finish)
Ceilings: Acrylume/Embossed - 26 Ga. - interior Galvanized/Embossed - 26 Ga. - exterior Panel Thickness Walls: 3.375" UL Listed Class 1 Foam Ceilings: 3.375" UL Listed Class 1 Foam
Not included. Set-up on your existing concrete surface. If placing cooler on the 2nd floor, a separate floor is required.

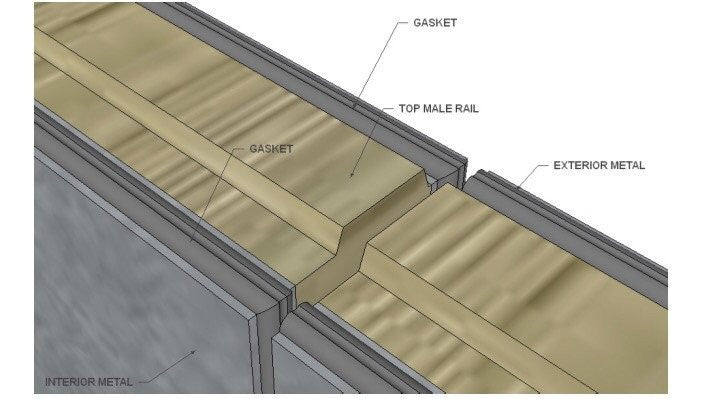

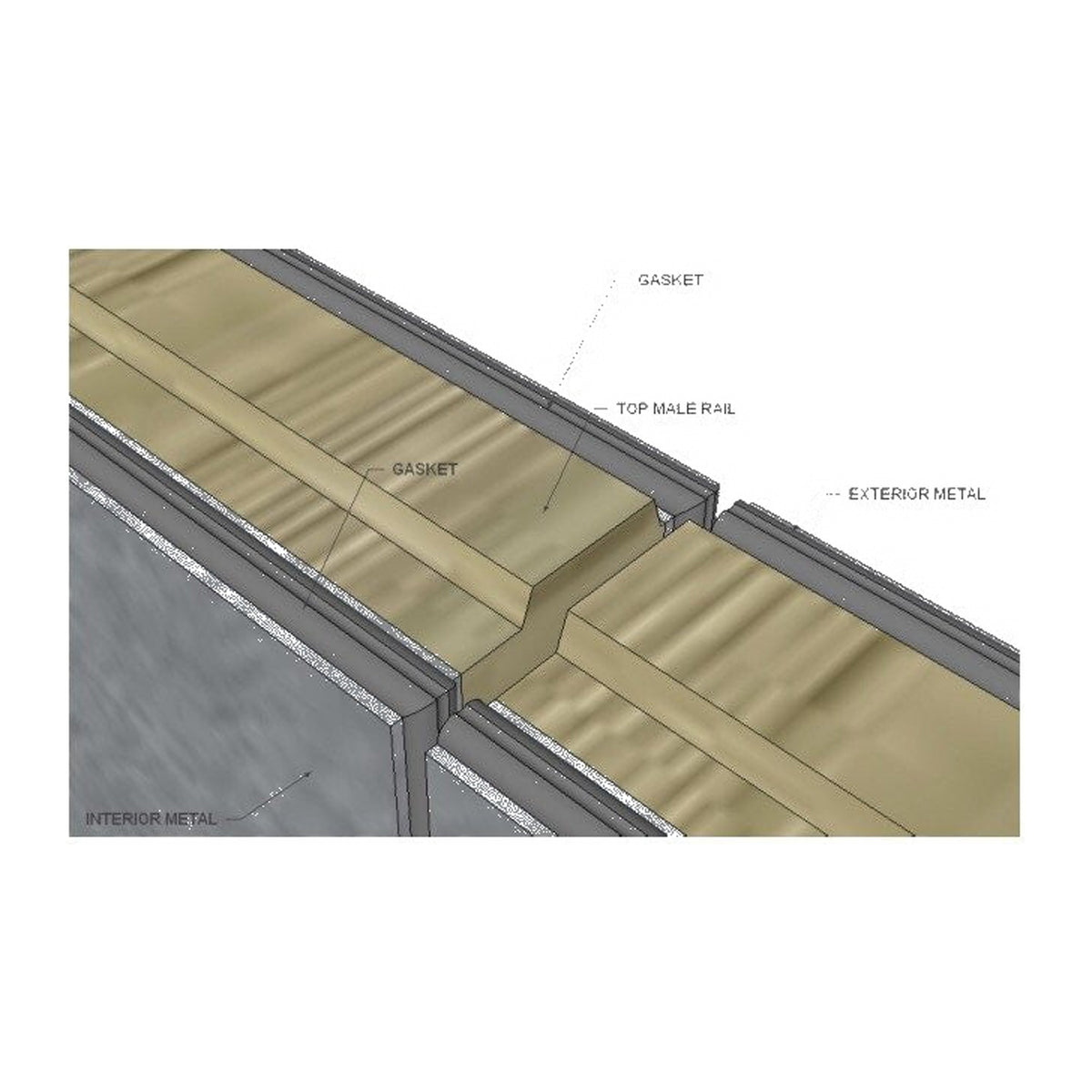

Flexible NSF vinyl gaskets shall be adhesive-backed and installed on the exterior edge of the rail “tongue”. Gaskets shall be impervious to stains, grease, oils, and mildew.

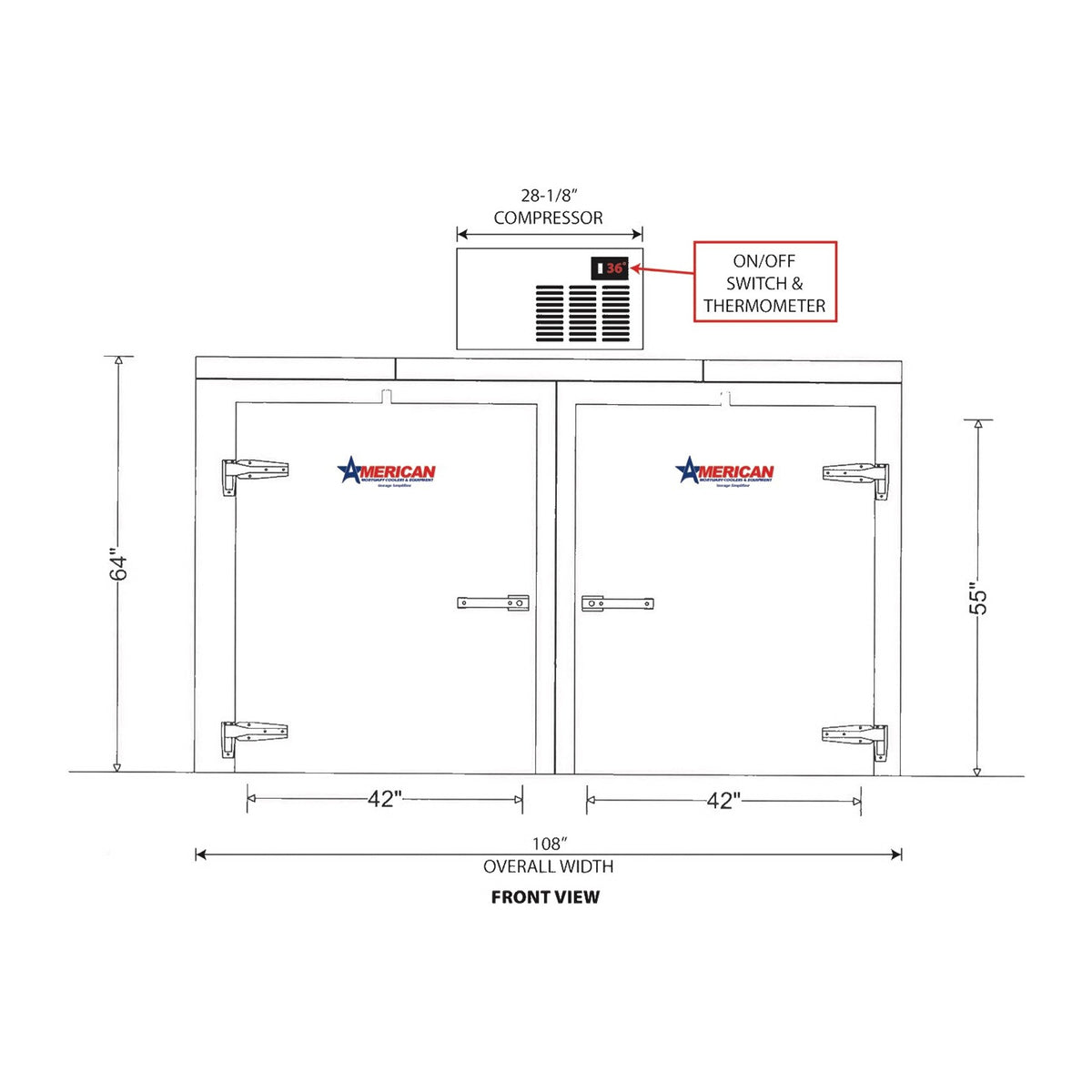

Door Size Standard: 36" x 81" (call for other sizes or multiple doors)
Choose door hinge and location on the drop-down menu.

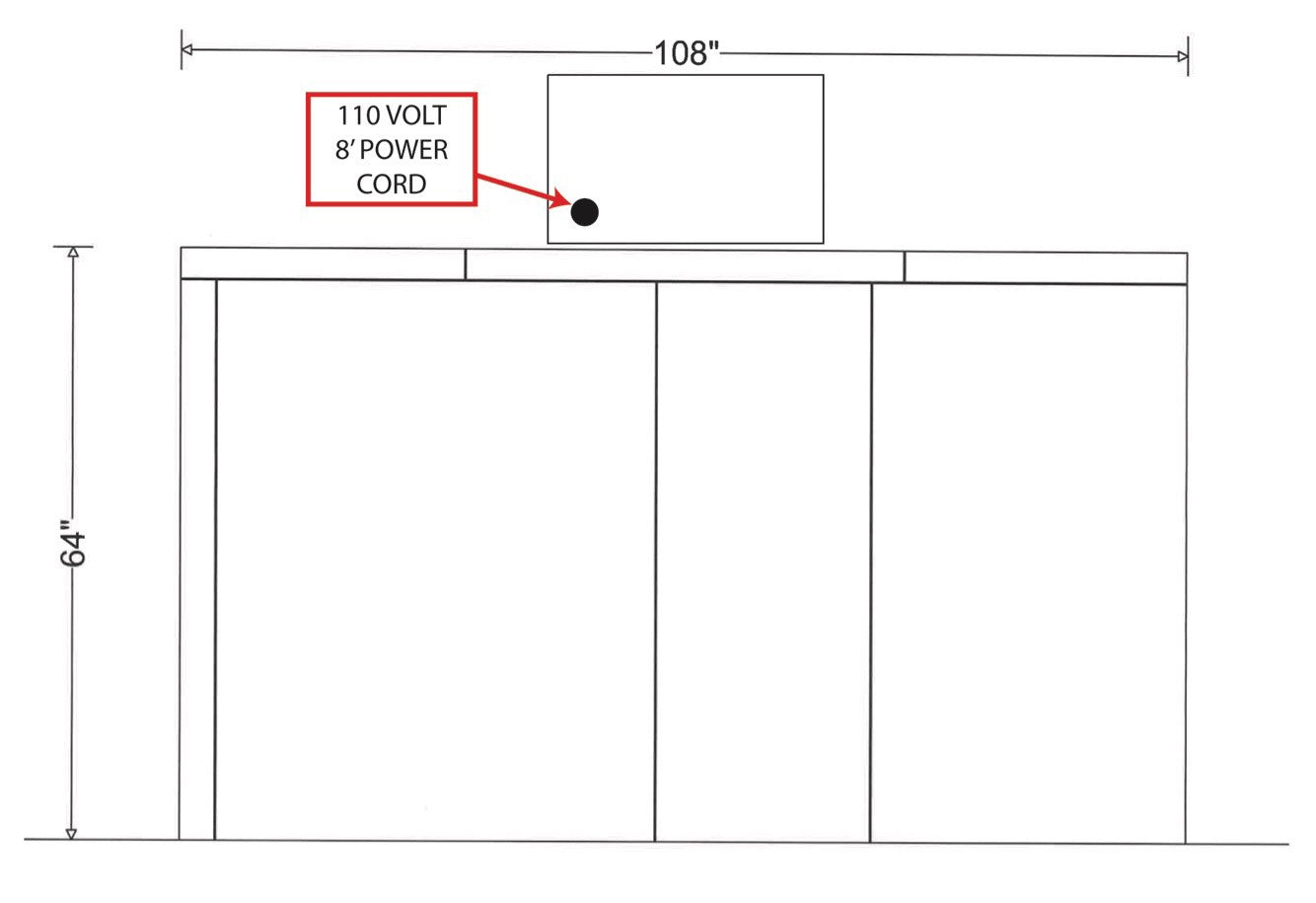

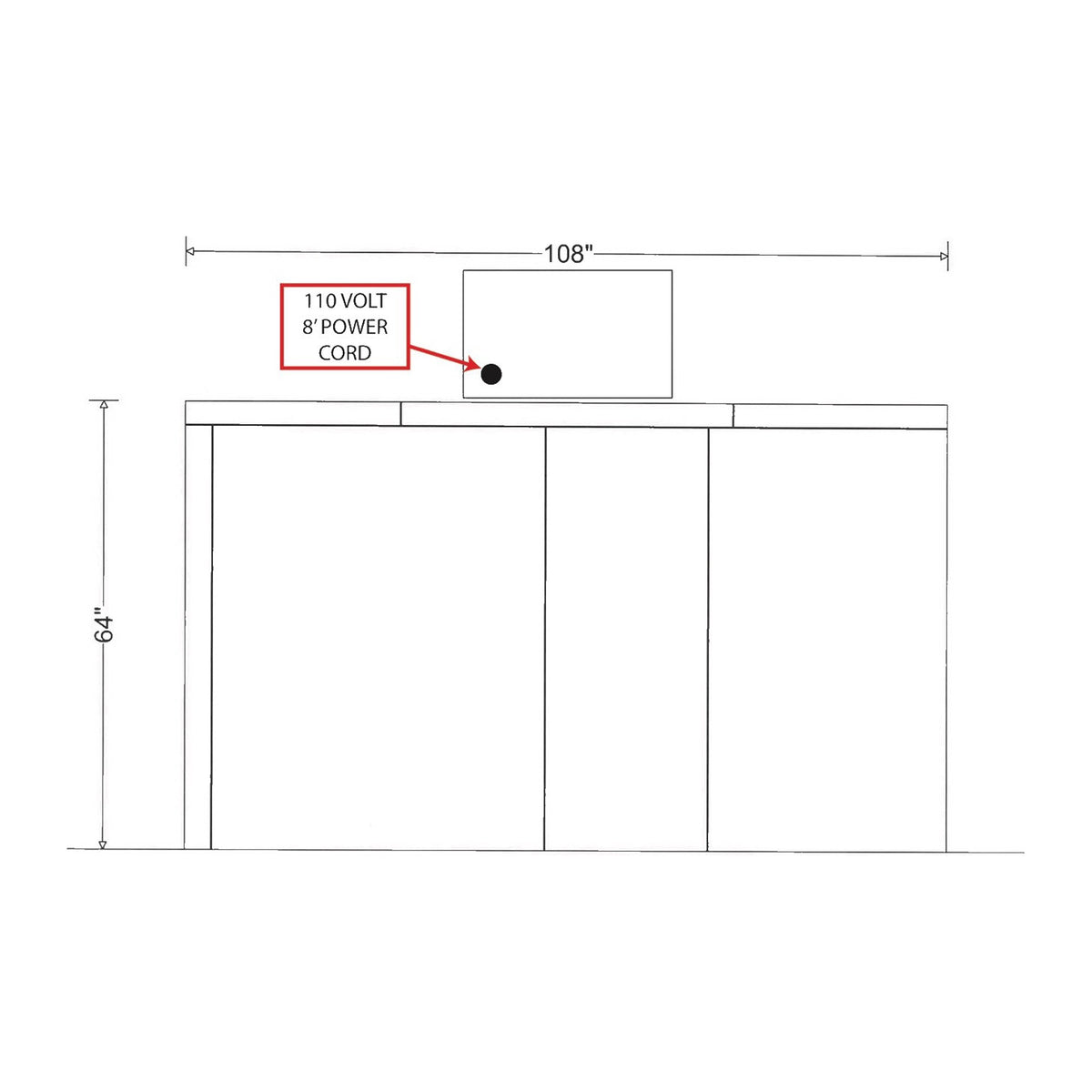

- 208-230/1/60, 9.5 amps, includes plug and NEMA 6-15R receptacle
- Top mount refrigeration system optimized for indoor use.
- Maximum vertical storage capacity
- Unit weight 207 lbs.
- Depth: 52
- Height: 17.5
- Width: 24.5
- Medium Temperature
- NEMA Plug 6-20R is supplied
- 90 Day labor warranty
- 5 years compressor and parts warranty from date of shipment within Continental USA (labor is not included)
- No refrigerant piping required, Pre-charged with refrigerant
- Evaporative condensate pan, no drain line needed
All American Mortuary walk-ins are test assembled in our plant before shipment to assure that all the panels and parts fit nicely together and meet our stringent quality standards. We provide a layout drawing with each panel labeled, and a manual with pictures to assist in easy assembly. The walk-in will go together smoothly and efficiently. Most installation problems, if any, have to do with site preparation. By taking your time and following the instructions, any person should be able to install our walk-in. If you have additional questions, please call us at 1-888-792-9315.
