4BX Upright Mortuary Cooler — XL 4‑Body
Best Delivered Price Guaranteed. Hand‑crafted in Johnson City, TN and delivered on our own trucks by a factory‑trained, certified installer. Optional white‑glove delivery available across the lower 48. No third‑party strangers—your one‑stop shop for mortuary coolers and storage systems.
We’ll beat any identical product quote
Johnson City, TN facility
Factory direct scheduling

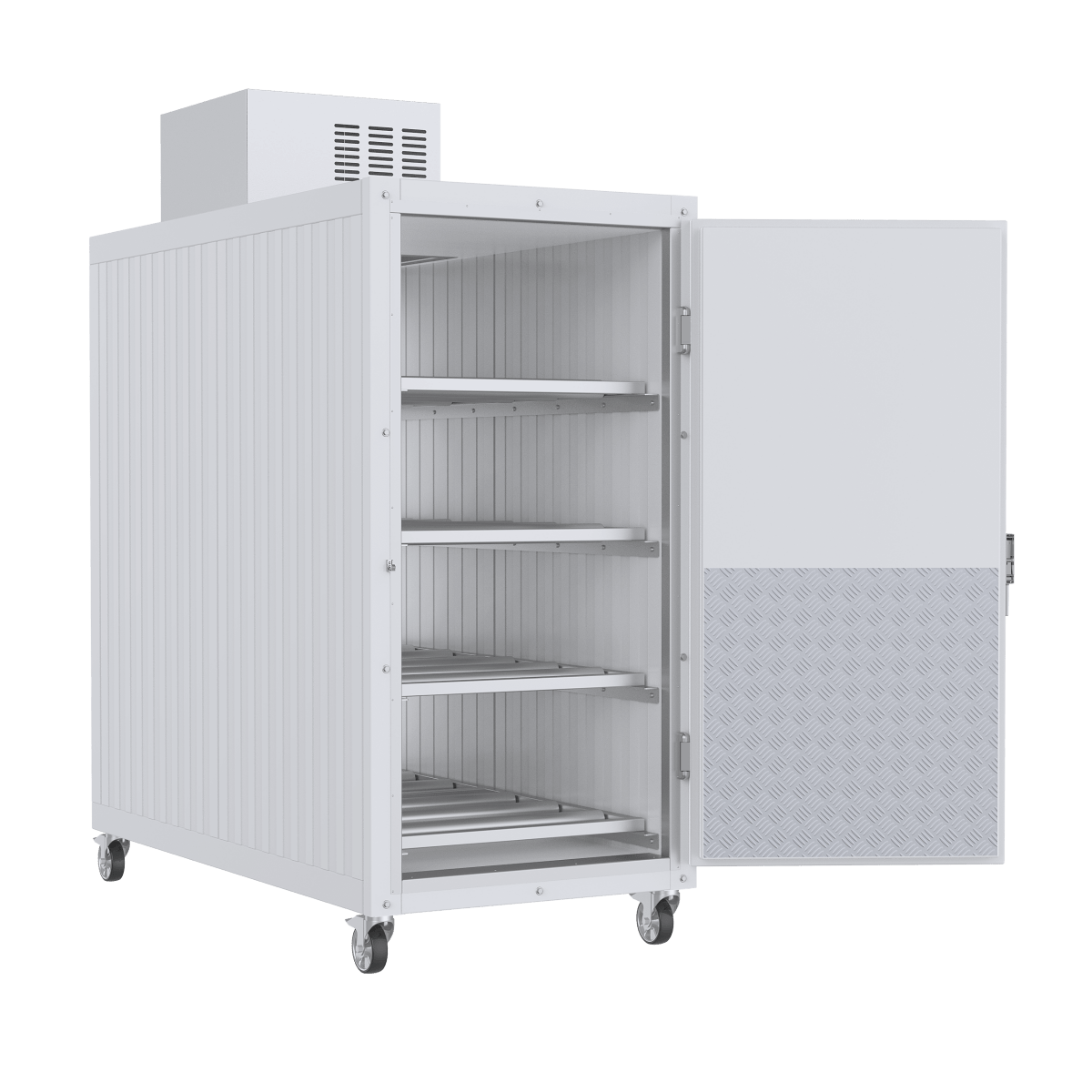

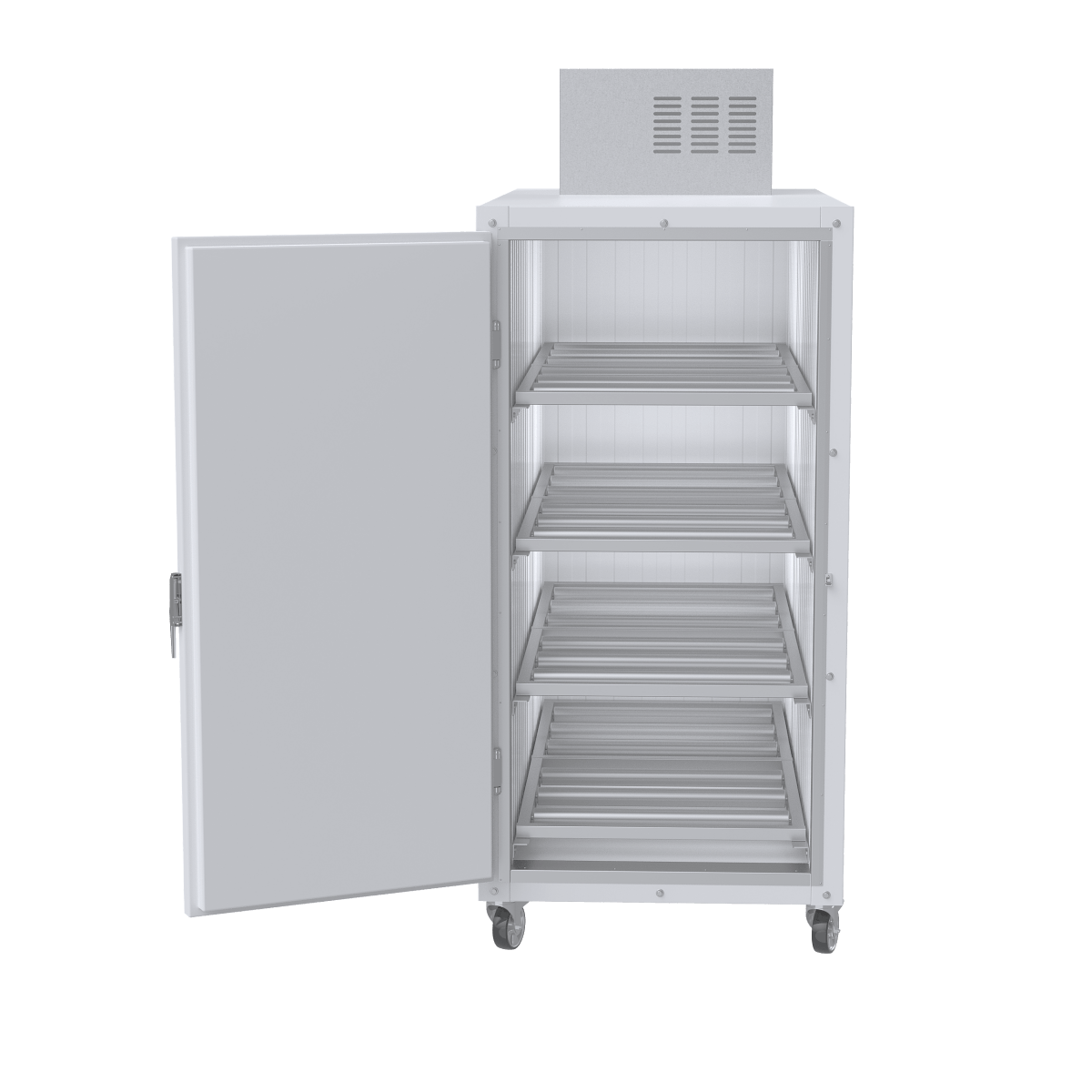

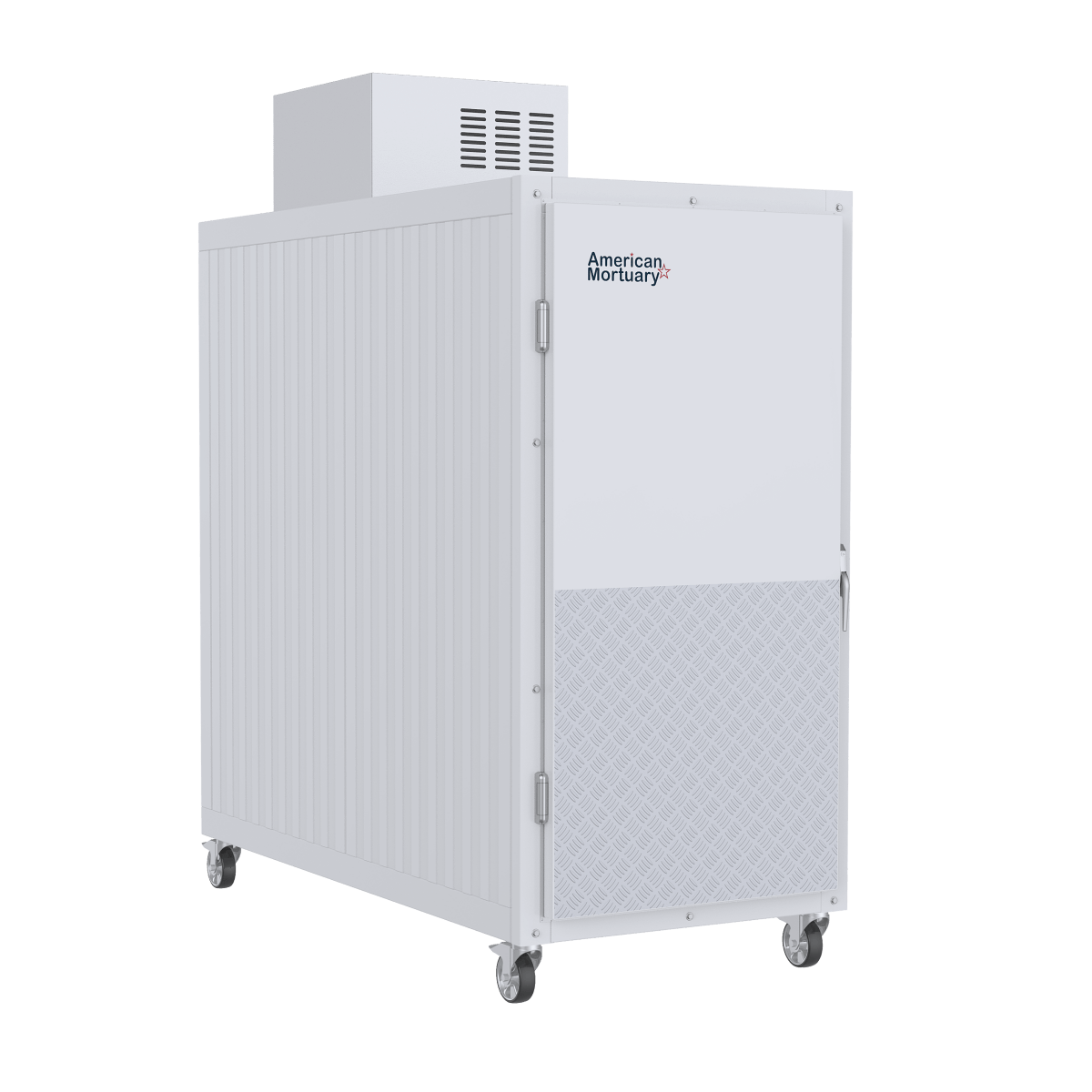

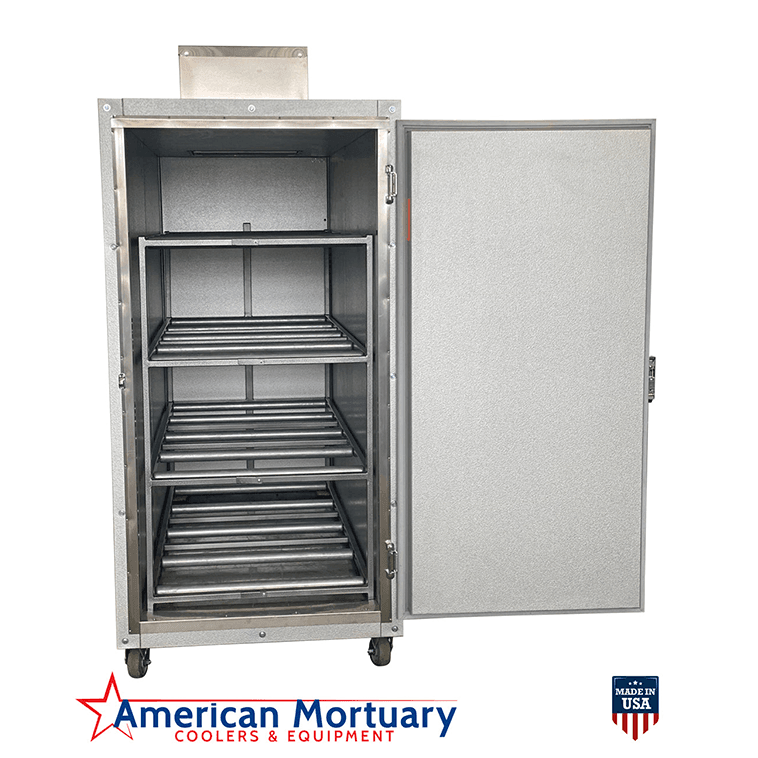

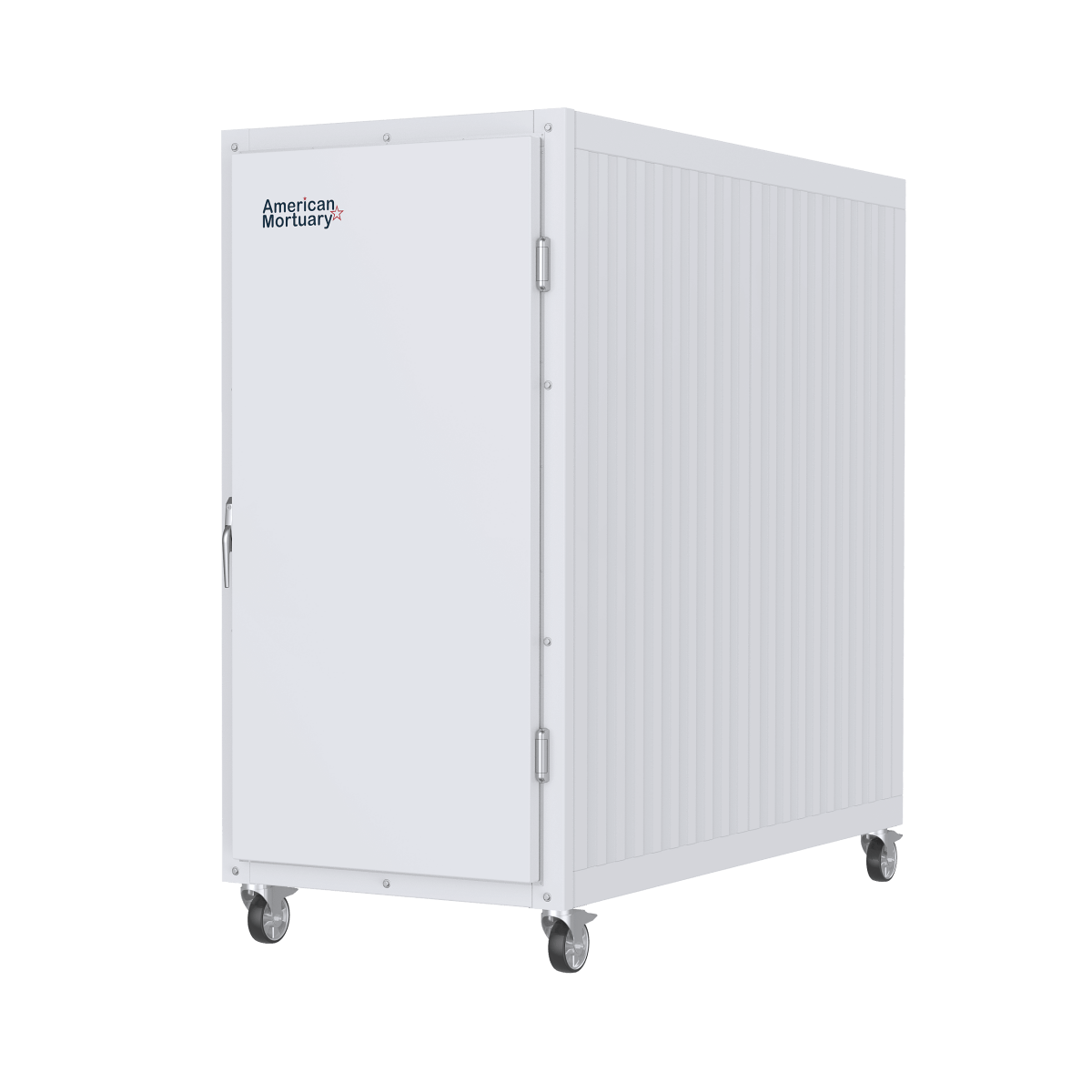

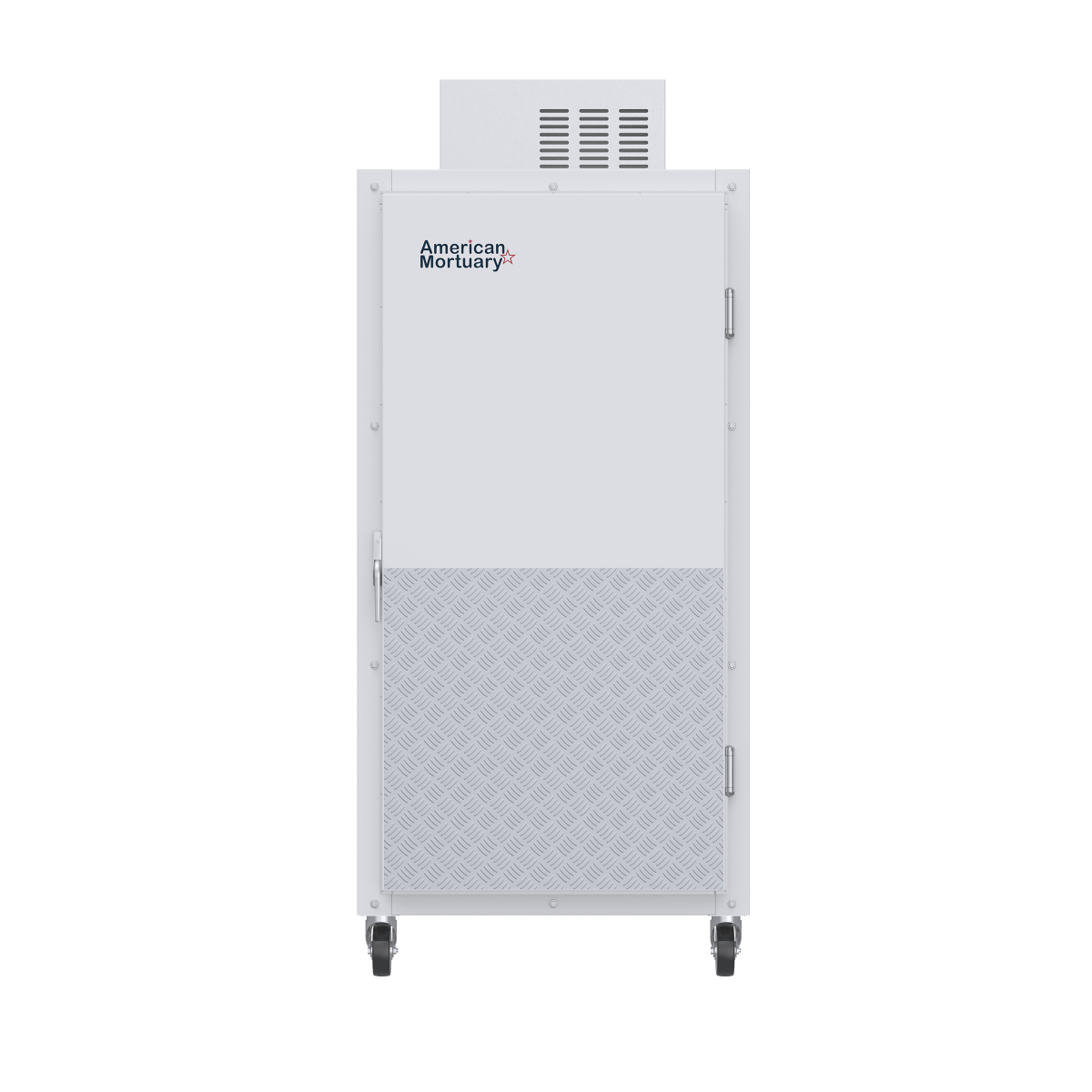

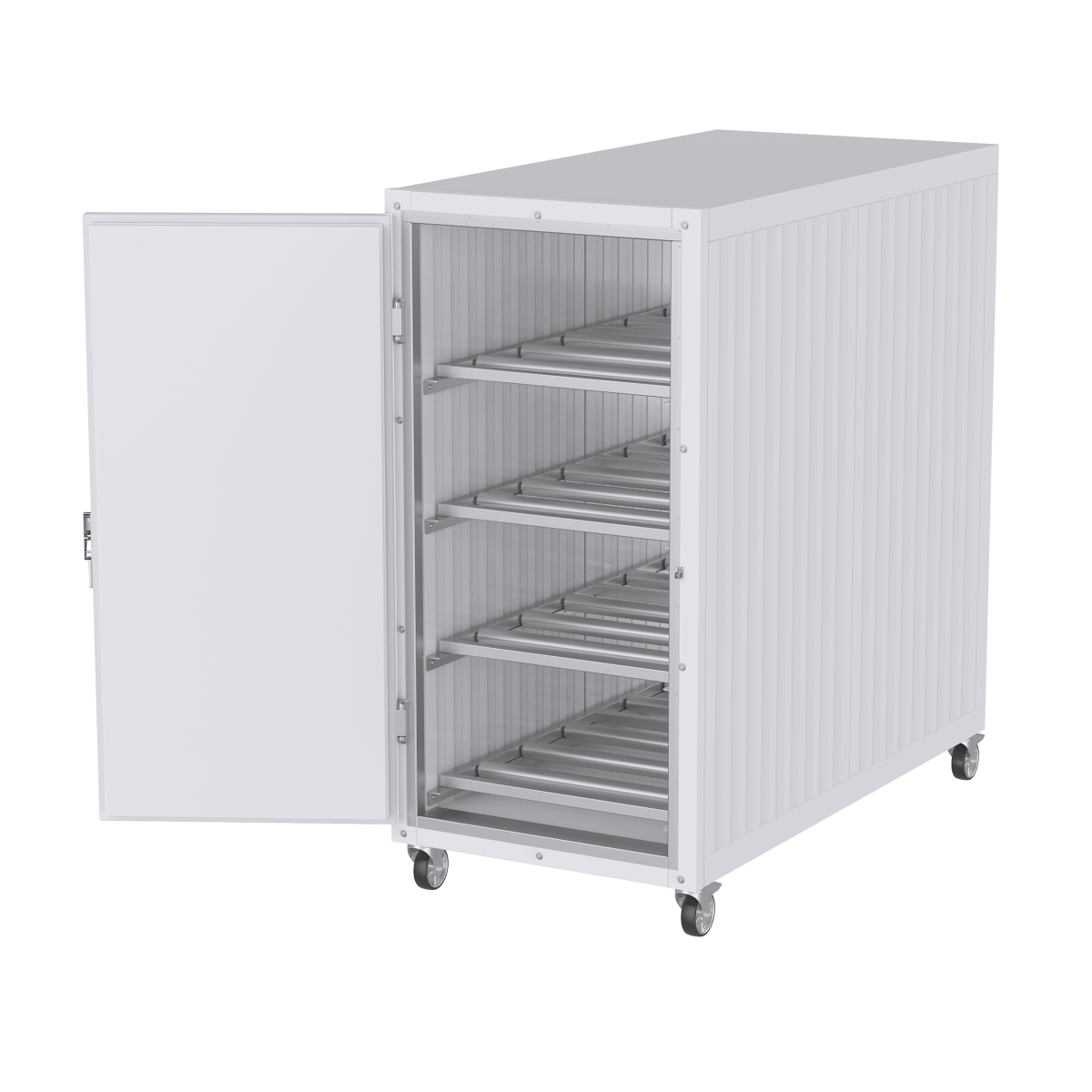

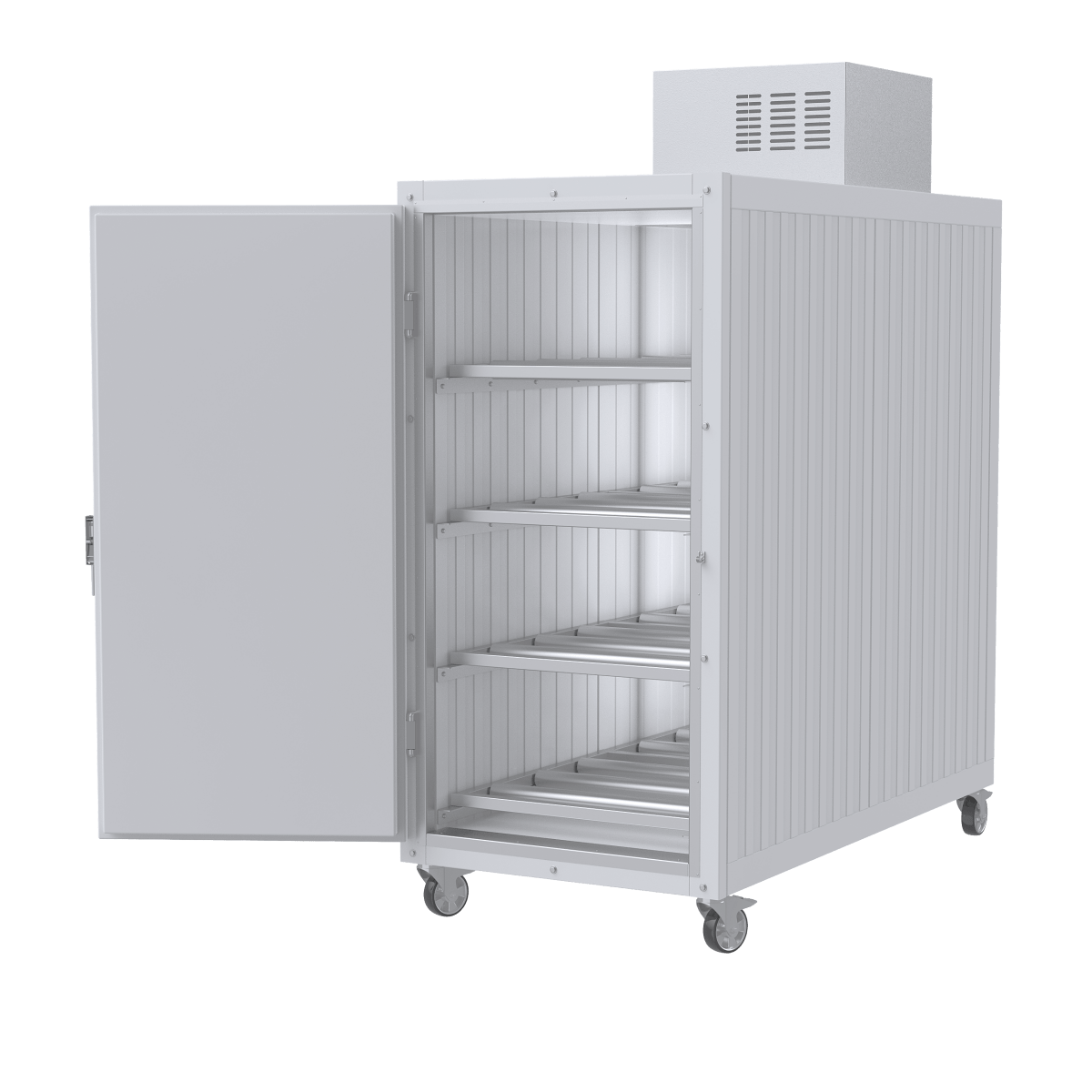

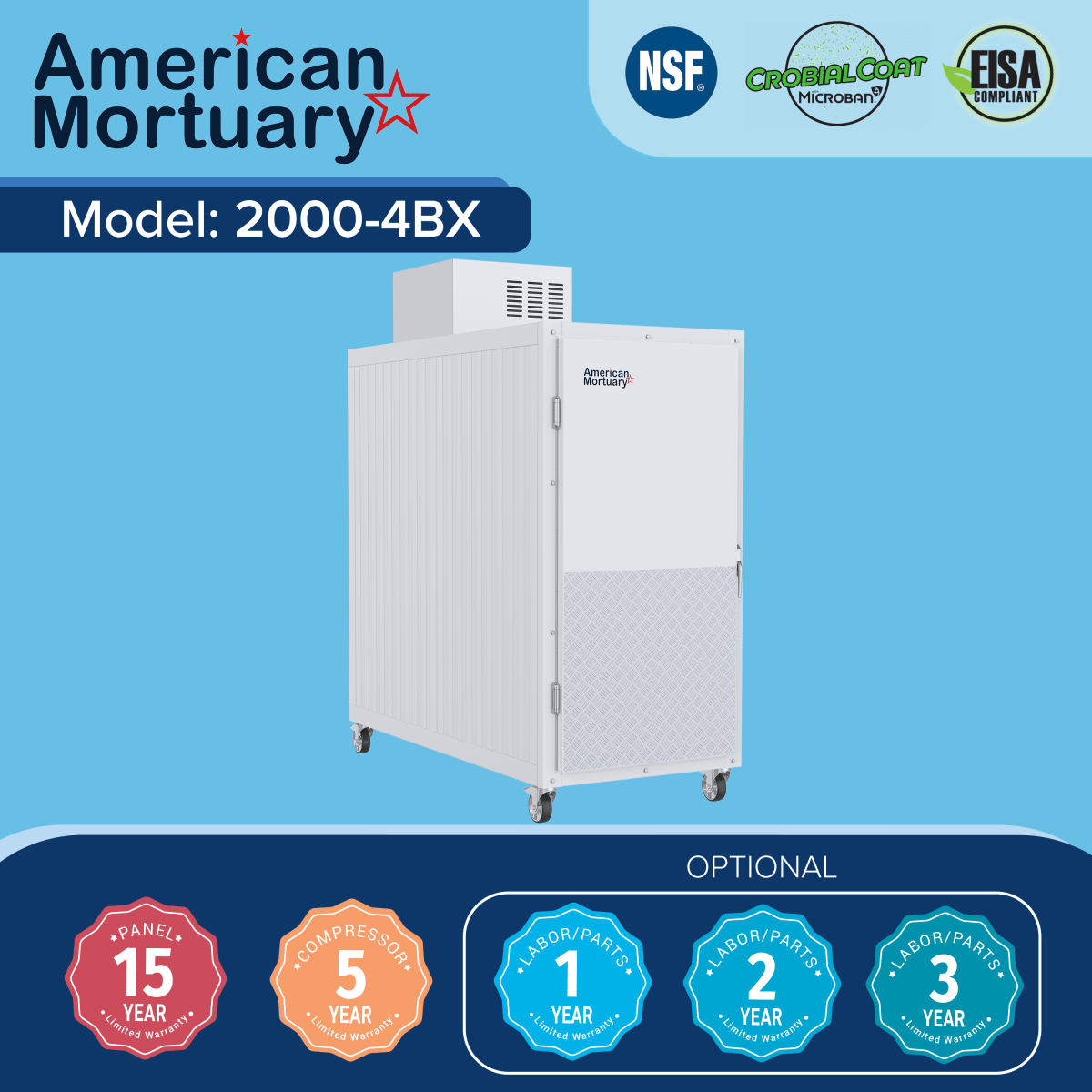

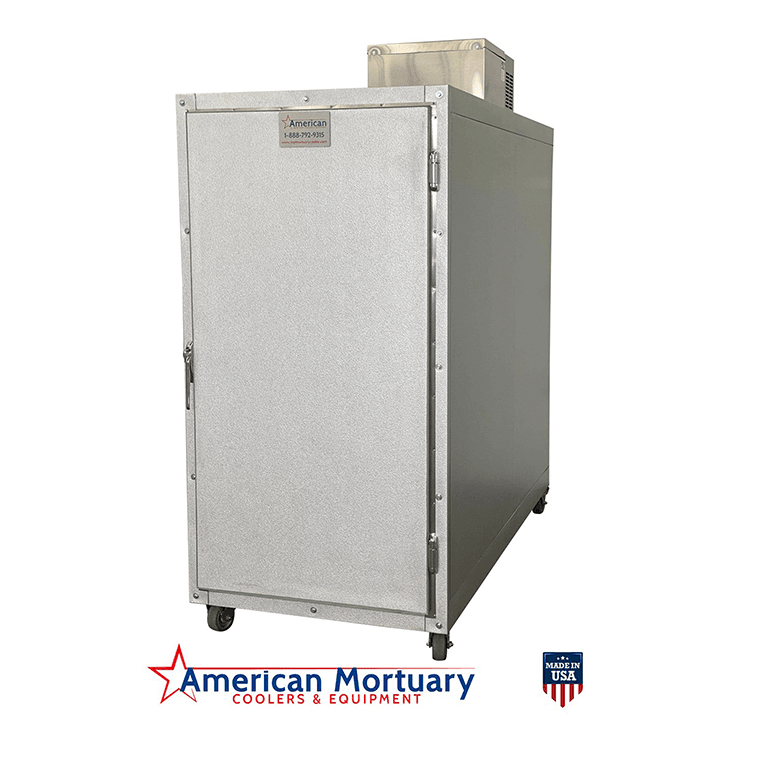

Model 4BX Upright Mortuary Cooler — Product Overview
Purpose‑built for funeral homes, hospitals, universities, and medical examiners who demand secure, space‑efficient, and code‑compliant refrigeration for up to four cadavers. Manufactured in the USA, the 4BX pairs industrial‑grade durability with compliance to the 2025 Energy Act refrigeration standards.
With OSHA approval, 50‑state temperature compliance, BBB A+ accreditation, and the fastest lead times in the industry, the 4BX is the professional’s choice.
- Capacity: Upright storage for 4 cadavers
- Self‑Contained Refrigeration: Factory‑mounted compressor system
- Standard 110V Plug‑In: Operates on a standard outlet
- Durable Build: Heavy‑duty insulated panels with stainless interior
- Standard Door Package: 36" door plate, stainless hinges, closer, locking handle
- No Hidden Upcharges: Door protections are standard on every Authority cooler
- Compliance: OSHA & EPA approved; 50‑state temperature compliant
- Options: Casters, interior light, 23" stainless trays, XL body boards, compressor upgrades, assembly services
- Warranty Coverage
- 15‑year panels & doors • 2‑year refrigeration • 2‑year parts & labor
- Accreditation
- Backed by American Mortuary Coolers — BBB A+ (since 2015)
Technical Specifications
- Model / SKU
- 4BMC‑XW
- Exterior Dimensions (Cabinet Only)
- 120.00" D × 44.00" W × 77.00" H
- Interior Dimensions
- 112.00" D × 36.00" W × 60.00" H
- Door Clearance
- 36.00" interior width
- Compressor Assembly
- Top‑mounted, factory‑installed; adds to total height. Max clearance required: 7’5” (cabinet + compressor).
- Compressor Specs
- 1 HP (150 lbs), Refrigerant: R‑404A, fully pre‑assembled at factory
- Electrical
- 110V outlet (~9A draw)
- Weight
- Cooler Box: 800 lbs • Compressor: 150 lbs • Net: ~950 lbs • Gross Ship: ~1,100 lbs
- Capacity
- Upright storage for 4 cadavers
Customer Responsibility: Ships with the compressor not mounted. Ensure 8’5” vertical clearance at delivery and final location.
2025 Energy Act — What You Must Know
- Drainage Required: All self‑contained compressors require drainage. A copper outlet stub is provided; customer must connect a drain hose or approved drainage system. Failure to install drainage voids warranty.
- Compressor Rating: Standard compressor rated for THI 80°F. Even a 65°F room can exceed THI 80°F with humidity. If THI exceeds rating, a compressor upgrade is required (starting at $1,295+).
- Placement Guidelines: Do not install near crematories (heat damage risk). Place in a climate‑controlled, insulated room (not vent‑fan cooled). Ignoring these rules can cause ERR/ERROR codes and shutdown.
Optional Add‑Ons (Not Included in Base Price)
- 🔧 Casters — Easy mobility and repositioning
- 🛠️ Assembly Services — Factory or on‑site assembly
- ❄️ Compressor Upgrades — Required for non‑conditioned or high‑THI spaces
- 💧 Drainage Connection — Must be attached for warranty coverage
- 🛏️ XL Body Boards — Oversized cadaver handling
- 🥼 Stainless Steel Trays (23") — Corrosion‑resistant trays
- 💡 Interior Lighting — Improved visibility
- 🚚 Turnkey White‑Glove Delivery & Installation — Email cool@mymortuarycooler.com for pricing
Year‑End Special Financing
Take advantage of our Year‑End Special Financing program today.
- Complete a short financing application.
- Rates, terms, and eligibility are determined after review.
- Our team will contact you quickly after submission with your options.
⚠️ Financing requires an application before approval.
Applications
- Funeral Homes: Upright 4‑body storage for busy operations
- Hospitals & Morgues: Reliable, compliant refrigeration
- Universities & Forensic Programs: Ideal for cadaver study and training
Related Models
- Need compact? ➡️ Model 3BX Upright Mortuary Cooler
- Need roll‑in? ➡️ Model 2BRX Roll‑In Mortuary Cooler
- Need transport? ➡️ Model TR3 Transport Mortuary Cooler
Order Today
Choose the Model 4BX Upright Mortuary Cooler — OSHA & EPA approved, fully compliant in all 50 states, American‑made in Tennessee, and delivered by factory‑trained professionals with the industry’s fastest lead times.
Important Notice
Effective 1/1/2025: Drainage is mandatory on all self‑contained compressors. The Model 4BX requires 7’5” vertical clearance. Failure to provide clearance, connect drainage, or select the correct compressor upgrade will void warranty coverage immediately.
Frequently Asked Questions
Is the 4BX compliant in my state?
Yes. The 4BX meets or exceeds funeral board temperature requirements in all 50 states when installed per specifications and operated within compressor THI ratings.
Do I need special electrical?
No. The 4BX operates on a standard 110V outlet (~9A). Verify a dedicated circuit per local code.
How does the best delivered price guarantee work?
Provide a written quote for an identical product and delivery scope. We’ll beat the delivered price and schedule your order with factory‑trained installation.
Can you install it for me?
Yes. We offer white‑glove delivery & installation by our certified team across the lower 48. Pricing is case‑by‑case based on site access and scope.
